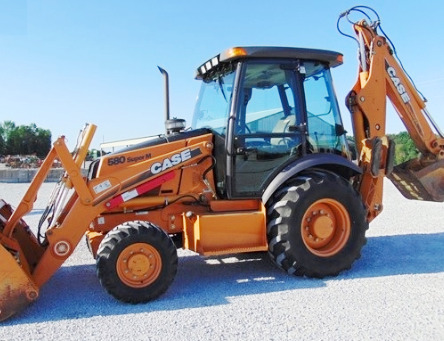

Case 580SM Backhoe Loader
The
Case 580 Super M backhoe loader was manufactured from 2002 to 2010. The Case 580
Super M is powered by Case 445T/M2 4-cylinder direct injection turbocharged
diesel engine. A 274 cubic inches (4.5L) engine has a cylinder bore of 4.09"
(104 mm), piston stroke of 5.19" (132 mm), rated power of 95 hp (71 kW), and 398
Nm (294 lb-ft) of max torque at 1500 rpm.
The Case 580SM is fitted with 4-speed synchromesh shuttle transmission
and single-stage torque converter. The max forward speed - 25 mph (41
kph), a max reverse speed - 30.8 mph (49.6 kph).
The open center hydraulic system used a gear pump with a rated capacity
of 28.5 gpm (108 lpm) for loader and 38 gpm (144 lpm) for backhoe. The
hydraulic system pressure is 210 bar (3050 psi). The Case 580SM is
equipped with 11Lx16.1 (2WD) or 12x16.5 (4WD) front tires and 17.5Lx24
(2WD) or 19.5Lx24 (4WD) rear tires. The wheelbase is 84" (2130 mm) for
models with 2WD, and 84.5" (2145 mm) for models with 4WD.
The front end loader has a lift capacity (at pivot pin) of 6182 lbs
(2810 kg) to max height of 134" (3400 mm) and breakout force of 9450 lbs
(4295 kg). The bucket dump clearance with a 45-degree maximum dump angle
is 105.9" (2690 mm). The front-end loader is compatible with a 82 in
(2080 mm) standard material bucket with a rated capacity of 28.1 cu.ft
(0.80 cu.m).
The extendahoe backhoe has a bucket digging force of 12820 lbs (5827 kg)
and dipperstick dig force of 5635 lbs (2560 kg). The digging depth at
maximum value is 219" (5560 mm), and overall reach from swing pivot is
262" (6650 mm) at ground line. The backhoe is equipped with 12, 16",
18", 24", 30", or 36" buckets.
| Engine Model |
Case 445T/M2 |
| Engine Type |
4-cylinder direct injection turbocharged diesel |
| Number of Cylinders |
4 |
| Displacement, cu in (L) |
274 (4.50) |
| Engine Bore, in (mm) |
4.09 (104.0) |
| Engine Stroke, in (mm) |
5.19 (132.0) |
| Aspiration |
Turbocharged |
| Rated Engine Power, hp (kW) |
95.0 (71.0) |
| Rated Engine Speed, rpm |
2200 |
| Maximum Torque, Nm (ft-lbs) |
398 (294) |
| Torque Speed, rpm |
1500 |
| Idle Speed, rpm |
800-2480 |
| Compression |
17:1 |
| Fuel System |
Direct injection |
| Air Cleaner |
Dual element |
| Oil Filter |
Replaceable, spin-on cartridge, full flow |
| Water Pump Type |
Integral |
| Fuel Tank Capacity, gal (L) |
31.4 (119.0) |
| Oil Capacity, qts (L) |
14.4 (13.6) |
| Coolant Capacity, qts (L) |
19.0 (18.0) |
| Electrical System Rating, Volts |
12 |
| Alternator Rating, Amps |
90 |
| Transmission Type |
Shuttle with Torque Converter |
| Gearbox Type |
4F/4R, four-speed synchromesh |
| Number of Forward Gears |
4 |
| Number of Reverse Gears |
4 |
| Torque Converter Type |
Single stage |
| Torque Converter Ratio |
2.63:1 |
| Oil Capacity (2WD), qts (L) |
19.5 (18.5) |
| Oil Capacity (4WD), qts (L) |
22.0 (20.8) |
| Maximum Forward Speed, mph (kph) |
25.0 (41.0) |
| Maximum Reverse Speed, mph (kph) |
30.8 (49.6) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front steer |
| Steering System |
Hydrostatic power |
| Steering Cylinder |
Double acting type |
| Steering Cylinder Rod/Stroke (2WD), in (mm) |
1.5x6.70 (38x170) |
| Steering Cylinder Rod/Stroke (4WD), in (mm) |
1.5x9.53 (38x242) |
| Service Brakes |
Wet disc |
| Front Tire Size (2WD) |
11Lx16.1 |
| Rear Tire Size (2WD) |
17.5Lx24 |
| Front Tire Size (4WD) |
12x16.5 |
| Rear Tire Size (4WD) |
19.5Lx24 |
| Front Tread Width (2WD), in (mm) |
67.5 (1715) |
| Front Tread Width (4WD), in (mm) |
67.7 (1720) |
| Hydraulic System Type |
Open center |
| Hydraulic Pump Type |
Gear-type tandem, transmission driven |
| Implement Pump Flow (Loader), gpm (Lpm) |
28.5 (108.0) |
| Implement Pump Flow (Backhoe), gpm (Lpm) |
38.0 (144.0) |
| Hydraulic Pressure, Bar (psi) |
210 (3050) |
| Hydraulic System Capacity (Standard), gal (L) |
31.0 (119.0) |
| Hydraulic System Capacity (Extendahoe), gal (L) |
33.0 (125.0) |
| Number of Standard Remote Valves (Loader) |
3/4 |
| Number of Standard Remote Valves (Backhoe) |
6/7 |
| Wheelbase (2WD), in (mm) |
84 (2130) |
| Wheelbase (4WD), in (mm) |
84.5 (2145) |
| Length (with Attachments), in (mm) |
273.6 (6950) |
| Height (ROPS), in (mm) |
105 (2670) |
| Height (Cab), in (mm) |
106 (2690) |
| Height (Exhaust), in (mm) |
102 (2590) |
| Overall Width, in (mm) |
86 (2180) |
| Ground Clearance, in (mm) |
14.6 (370) |
| Turning Diameter (2WD, with Brakes), in (mm) |
255 (6480) |
| Turning Diameter (2WD, w/o Brakes), in (mm) |
296.1 (7520) |
| Turning Diameter (4WD, with Brakes), in (mm) |
264.5 (6720) |
| Turning Diameter (4WD, w/o Brakes), in (mm) |
339.4 (8620) |
| Weight (2WD, ROPS), lb (kg) |
14255 (6480) |
| Weight (4WD, Cab), lb (kg) |
17510 (7960) |
| Overall Operating Height, in (mm) |
167.3 (4250) |
| Height to Bucket Hinge Pin, in (mm) |
134 (3400) |
| Dump Clearance at Full Height, in (mm) |
105.9 (2690) |
| Dump Angle at Full Height, deg |
45 |
| Dump Reach at Full Height, in (mm) |
30 (763) |
| Reach with Bucket on Ground, in (mm) |
77.6 (1970) |
| Digging Depth Below Ground Line Bucket Flat, in (mm) |
5.9 (149) |
| Bucket Rollback at Ground line, deg |
40 |
| Maximum Grading Angle, deg |
116 |
| Lift Capacity to Full Height, lb (kg) |
6182 (2810) |
| Breakout Force, lb (kg) |
9450 (4295) |
| Bucket Width, in (mm) |
82 (2080) |
| Lift Cylinder Size (Rod/Stroke), in (mm) |
1.75x30.2 (44.5x766) |
| Bucket Cylinder Size (Rod/Stroke), in (mm) |
1.5x20.6 (38x522) |
| Maximum Digging Depth, in (mm) |
172.8 (4390) |
| 2-ft Flat Digging Depth, in (mm) |
171 (4340) |
| 8-ft Flat Digging Depth, in (mm) |
160 (4060) |
| Overall Reach from Rear Axle Centerline, in (mm) |
257 (6530) |
| Overall Reach from Swing Pivot, in (mm) |
217 (5510) |
| Loading Height, in (mm) |
133.8 (3400) |
| Loading Reach, in (mm) |
105 (2670) |
| Swing Arc, deg |
180 |
| Bucket Rotation, deg |
164 |
| Stabilizer Spread (Operating Position), in (mm) |
113 (2870) |
| Digging Force (Bucket Cylinder), lb (kg) |
12820 (5827) |
| Digging Force (Dipper Cylinder), lb (kg) |
8224 (3740) |
| Boom Cylinder Size (Rod/Stroke), in (mm) |
2.5x33.2 (63x842) |
| Dipperstick Cylinder Size (Rod/Stroke), in (mm) |
2.5x22.9 (63x583) |
| Bucket Cylinder Size (Rod/Stroke), in (mm) |
2.5x34.3 (63x872) |
| Swing Cylinder Size (Rod/Stroke), in (mm) |
2.0x11.5 (51x292) |
| Stabilizer Cylinder Size (Rod/Stroke), in (mm) |
2.0x21.8 (51x553) |
| Maximum Digging Depth (Retracted), in (mm) |
178 (4520) |
| Maximum Digging Depth (Extended), in (mm) |
219 (5560) |
| 2-ft Flat Digging Depth (Retracted), in (mm) |
176 (4470) |
| 2-ft Flat Digging Depth (Extended), in (mm) |
218 (5540) |
| Reach from Rear Axle Centerline (Retracted), in (mm) |
264 (6700) |
| Reach from Rear Axle Centerline (Extended), in (mm) |
305 (7750) |
| Reach from Swing Pivot (Retracted), in (mm) |
221 (5610) |
| Reach from Swing Pivot (Extended), in (mm) |
262 (6650) |
| Loading Height (Retracted), in (mm) |
137 (3480) |
| Loading Height (Extended), in (mm) |
159 (4040) |
| Loading Reach (Retracted), in (mm) |
104 (2640) |
| Loading Reach (Extended), in (mm) |
137.8 (3500) |
| Swing Arc, deg |
180 |
| Bucket Rotation, deg |
164 |
| Stabilizer Spread (Operating Position), in (mm) |
113 (2870) |
| Bucket Digging Force, lb (kg) |
12820 (5827) |
| Dipperstick Digging Force (Retracted), lb (kg) |
7784 (3540) |
| Dipperstick Digging Force (Extended), lb (kg) |
5635 (2560) |
| Boom Cylinder Size (Rod/Stroke), in (mm) |
2.5x33.2 (63x842) |
| Dipperstick Cylinder Size (Rod/Stroke), in (mm) |
2.5x22.9 (63x583) |
| Bucket Cylinder Size (Rod/Stroke), in (mm) |
2.5x34.3 (63x872) |
| Extendahoe Cylinder Size (Rod/Stroke), in (mm) |
1.75x42 (44.5x1070) |
| Swing Cylinder Size (Rod/Stroke), in (mm) |
2.0x11.5 (51x292) |
| Stabilizer Cylinder Size (Rod/Stroke), in (mm) |
2.0x21.8 (51x553) |
