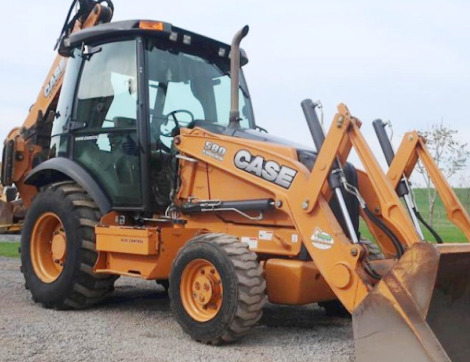

Case 580SN Backhoe Loader
The
Case 580 Super N backhoe loader was manufactured from 2010 to 2020. The Case 580
Super N is powered by with a 274 cu.in (4.5L) FPT F4HE0484G 4-cylinder direct
injection turbocharged diesel engine with a rated power of 97 hp (72 kW) and 453
Nm (334 lb-ft) of max torque at 1400 rpm.
The Case 580SN is fitted with two types of transmission: 4x4 power
shuttle transmission with manual gear shifting, or 4x3 powershift
transmission with hydraulic gear shifting. The max forward speed - 24
mph (38.6 km/h), a maximum reverse speed - 28.8 mph (46.3 km/h).
The closed center hydraulic system used an axial piston pump with a flow
of 41 gpm (156.2 lpm). The hydraulic pressure is 161 bar (2340 psi). The
Case 580SN is equipped with a hydrostatic power steering, wet disc
brakes, 11Lx16 (2WD) or 12.0x16.5 (4WD) front tires, and 17.5Lx24 (2WD)
or 19.5Lx24 (4WD) rear tires. The wheelbase is 84" (2130 mm) for 2-wheel
drive models, and 84.5" (2145 mm) for 4-wheel drive models.
The loader has a maximum lift height of 11 ft 3 in (3420 mm) at pin and
bucket dump clearance of 8 ft 10 in (2690 mm). The lifting capacity is
7044 lb (3195 kg) to maximum lift height at pin, and breakout force
(bucket on ground) is 10947 lb (4976 kg). The loader is compatible with
a 82 in (2080 mm) standard material bucket with a rated capacity of 28.1
cu.ft (0.80 cu.m).
The standard backhoe with power lift work ranges consist of a bucket
digging force of 14223 lb (6465 kg) and dipperstick digging force of
9070 lb (4123 kg). The max digging depth is 14 ft 6 in (4410 mm), and a
reach from swing pivot is 18 ft 2 in (5550 mm) at ground line. The
backhoe is equipped with 12, 16", 18", 24", 30", or 36" buckets.
| Engine Model |
FPT F4HE0484G |
| Engine Type |
4-cylinder direct injection turbocharged diesel |
| Number of Cylinders |
4 |
| Displacement, cu in (L) |
274 (4.50) |
| Engine Bore, in (mm) |
4.09 (104.0) |
| Engine Stroke, in (mm) |
5.19 (132.0) |
| Aspiration |
Turbocharged |
| Rated Engine Power, hp (kW) |
97.0 (72.0) |
| Rated Engine Speed, rpm |
2200 |
| Maximum Torque, Nm (ft-lbs) |
453 (334) |
| Torque Speed, rpm |
1400 |
| Idle Speed, rpm |
900-2430 |
| Compression |
17:1 |
| Fuel System |
Direct injection |
| Fuel injection |
High pressure common rail |
| Air Cleaner |
Dual element |
| Oil Filter |
Replaceable, spin-on cartridge, full flow |
| Water Pump Type |
Integral |
| Fuel Tank Capacity, gal (L) |
42.0 (159.0) |
| Oil Capacity, qts (L) |
14.4 (13.6) |
| Coolant Capacity, qts (L) |
19.0 (18.0) |
| Electrical System Rating, Volts |
12 |
| Alternator Rating, Amps |
120 |
| Transmission Type |
Power Shuttle Synchromesh |
| Gearbox Type |
4F/4R, manual gear shifting |
| Number of Forward Gears |
4 |
| Number of Reverse Gears |
4 |
| Torque Converter Type |
Single stage |
| Torque Converter Ratio |
2.6:1 |
| Oil Capacity (2WD), qts (L) |
18.0 (17.0) |
| Oil Capacity (4WD), qts (L) |
21.0 (19.4) |
| Maximum Forward Speed, mph (kph) |
24.0 (38.6) |
| Maximum Reverse Speed, mph (kph) |
28.8 (46.3) |
| Transmission Type |
PowerShift |
| Gearbox Type |
4F/3R, hydraulic gear shifting |
| Number of Forward Gears |
4 |
| Number of Reverse Gears |
3 |
| Torque Converter Type |
Single stage |
| Torque Converter Ratio |
2.6:1 |
| Oil Capacity (2WD), qts (L) |
23.0 (21.7) |
| Oil Capacity (4WD), qts (L) |
22.0 (20.7) |
| Maximum Forward Speed, mph (kph) |
23.6 (38.0) |
| Maximum Reverse Speed, mph (kph) |
16.0 (25.7) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front steer |
| Steering System |
Hydrostatic power |
| Steering Cylinder |
Double acting type |
| Service Brakes |
Wet disc |
| Front Tire Size (2WD) |
11Lx16 |
| Rear Tire Size (2WD) |
17.5Lx24 |
| Front Tire Size (4WD) |
12.0x16.5 |
| Rear Tire Size (4WD) |
19.5Lx24 |
| Front Tread Width, in (mm) |
67.5-67.7 (1715-1720) |
| Rear Tread Width, in (mm) |
61.2-63.1 (1555-1600) |
| Hydraulic System Type |
Closed center |
| Hydraulic Pump Type |
Variable displacement axial piston |
| Implement Pump Flow, gpm (Lpm) |
41.0 (156.2) |
| Hydraulic Pressure, Bar (psi) |
161 (2340) |
| Main Relief Pressure (Standard), Bar (psi) |
238 (3450) |
| Main Relief Pressure (Power Lift), Bar (psi) |
250 (3650) |
| Hydraulic System Capacity (Standard), gal (L) |
31.4 (119.2) |
| Hydraulic System Capacity (Extendahoe), gal (L) |
32.9 (124.9) |
| Number of Standard Remote Valves (Loader) |
2/3 |
| Number of Standard Remote Valves (Backhoe) |
6/7 |
| Wheelbase (2WD), in (mm) |
84 (2130) |
| Wheelbase (4WD), in (mm) |
84.5 (2145) |
| Transport Length (2WD), in (mm) |
281.1 (7140) |
| Transport Length (4WD), in (mm) |
279.5 (7100) |
| Height (2WD, ROPS), in (mm) |
103.9 (2640) |
| Height (4WD, ROPS), in (mm) |
104.5 (2660) |
| Height (2WD, Cab), in (mm) |
105.5 (2680) |
| Height (4WD, Cab), in (mm) |
107 (2720) |
| Overall Width, in (mm) |
85.4 (2170) |
| Ground Clearance (2WD), in (mm) |
12 (305) |
| Ground Clearance (4WD), in (mm) |
15 (380) |
| Turning Radius (2WD, with Brakes), in (mm) |
127.6 (3240) |
| Turning Radius (2WD, w/o Brakes), in (mm) |
148.2 (3760) |
| Turning Radius (4WD, with Brakes), in (mm) |
132.3 (3360) |
| Turning Radius (4WD, w/o Brakes), in (mm) |
169.7 (4310) |
| Weight (2WD), lb (kg) |
15807 (7185) |
| Weight (4WD), lb (kg) |
16203 (7365) |
| Overall Operating Height |
13 ft 9 in (4180 mm) |
| Maximum Height to Bucket Hinge Pin |
11 ft 3 in (3420 mm) |
| Dump Angle at Full Height |
47 deg |
| Dump Clearance at Full Height |
8 ft 10 in (2690 mm) |
| Dump Reach at Full Height |
31.5 in (800 mm) |
| Bucket Rollback Groundline |
42 deg |
| Digging Depth Below Grade Bucket Flat |
6.1 in (155 mm) |
| Reach with Bucket on Ground |
6 ft 10 in (2070 mm) |
| Lift Capacity to Full Height |
7044 lb (3195 kg) |
| Lift Cylinders Breakout Force |
9833 lb (4470 kg) |
| Bucket Cylinders Breakout Force |
10947 lb (4976 kg) |
| Bucket Width |
82 in (2080 mm) |
| Lift Cylinder Size (Rod/Stroke) |
1.75x28.86 in (44.5x733 mm) |
| Bucket Cylinder Size (Rod/Stroke) |
1.5x20.33 in (38x517 mm) |
| Maximum Digging Depth |
14 ft 6 in (4410 mm) |
| 2-ft Flat Digging Depth |
14 ft 4 in (4370 mm) |
| 8-ft Flat Digging Depth |
13 ft 4 in (4060 mm) |
| Reach from Rear Axle Centerline |
21 ft 10 in (6660 mm) |
| Reach from Swing Pivot |
18 ft 2 in (5550 mm) |
| Loading Height |
12 ft 1 in (3670 mm) |
| Loading Reach |
4 ft 7 in (1410 mm) |
| Swing Arc |
180 deg |
| Bucket Rotation |
198 deg |
| Stabilizer Spread (Operating Position) |
9 ft 3 in (2820 mm) |
| Bucket Digging Force (Standard) |
13576 lb (6170 kg) |
| Bucket Digging Force (Power Lift) |
14223 lb (6465 kg) |
| Dipper Digging Force (Standard) |
8657 lb (3935 kg) |
| Dipper Digging Force (Power Lift) |
9070 lb (4123 kg) |
| Boom Cylinder Size (Rod/Stroke) |
2.5x38.2 in (63x972 mm) |
| Dipperstick Cylinder Size (Rod/Stroke) |
2.5x25.1 in (63x628 mm) |
| Bucket Cylinder Size (Rod/Stroke) |
2.5x35.4 in (63x898 mm) |
| Swing Cylinder Size (Rod/Stroke) |
2.0x11.5 in (51x292 mm) |
| Stabilizer Cylinder Size (Rod/Stroke) |
2.25x21.4 in (51x543 mm) |
| Maximum Digging Depth (Retracted) |
14 ft 6 in (4410 mm) |
| Maximum Digging Depth (Extended) |
17 ft 11 in (5470 mm) |
| 2-ft Flat Digging Depth (Retracted) |
14 ft 4 in (4370 mm) |
| 2-ft Flat Digging Depth (Extended) |
17 ft 10 in (5430 mm) |
| 8-ft Flat Digging Depth (Retracted) |
13 ft 4 in (4060 mm) |
| 8-ft Flat Digging Depth (Extended) |
17 ft 1 in (5190 mm) |
| Reach from Rear Axle Centerline (Retracted) |
21 ft 10 in (6660 mm) |
| Reach from Rear Axle Centerline (Extended) |
25 ft 3 in (7690 mm) |
| Reach from Swing Pivot (Retracted) |
18 ft 2 in (5550 mm) |
| Reach from Swing Pivot (Extended) |
21 ft 7 in (6580 mm) |
| Loading Height (Retracted) |
12 ft 1 in (3670 mm) |
| Loading Height (Extended) |
14 ft 5 in (4380 mm) |
| Loading Reach (Retracted) |
4 ft 7 in (1410 mm) |
| Loading Reach (Extended) |
7 ft 3 in (2200 mm) |
| Swing Arc |
180 deg |
| Bucket Rotation |
198 deg |
| Stabilizer Spread (Operating Position) |
9 ft 3 in (2820 mm) |
| Bucket Digging Force (Standard) |
13576 lb (6170 kg) |
| Bucket Digging Force (Power Lift) |
14223 lb (6465 kg) |
| Dipper Digging Force (Retracted, Standard) |
8657 lb (3935 kg) |
| Dipper Digging Force (Retracted, Power Lift) |
9070 lb (4123 kg) |
| Dipper Digging Force (Extended, Standard) |
6305 lb (2866 kg) |
| Dipper Digging Force (Extended, Power Lift) |
6606 lb (3003 kg) |
| Boom Cylinder Size (Rod/Stroke) |
2.5x38.2 in (63x972 mm) |
| Dipperstick Cylinder Size (Rod/Stroke) |
2.5x25.1 in (63x628 mm) |
| Bucket Cylinder Size (Rod/Stroke) |
2.5x35.4 in (63x898 mm) |
| Extendahoe Cylinder Size (Rod/Stroke) |
1.75x42.1 in (44.5x1068 mm) |
| Swing Cylinder Size (Rod/Stroke) |
2.0x11.5 in (51x292 mm) |
| Stabilizer Cylinder Size (Rod/Stroke) |
2.25x21.4 in (51x543 mm) |
