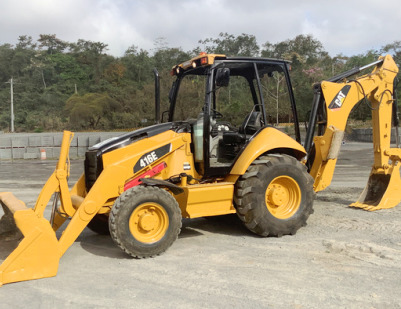

Cat 416E Backhoe Loader
The
Caterpillar 416E backhoe loader was manufactured from 2006 to 2016. The Cat 416E
driveline consists of a 268 cu.in (4.4 L) Caterpillar 3054C DINA four-stroke
4-cylinder direct injection liquid cooled diesel engine with a maximum power of
78 hp (58 kW), and power shuttle transmission with 4 forward and 4 reverse
gears.
The maximum forward speed - 24.8 mph (39.9 kph), max reverse speed -
24.8 mph (39.9 kph). The closed center load sensing hydraulic system
used a variable displacement axial piston pump with a rated fluid flow
of 34.8 gpm (132 lpm).
The main relief pressure is 3292 psi (227 bar). The Cat 416E backhoe
loader is equipped with a hydrostatic power steering, hydraulic disc
brakes, 11L-16 (2WD) or 335/80R18 (4WD) front tires, and 19.5L-24 (2WD)
or 19.5L-R24 (4WD) rear tires. The wheelbase is 87" (2200 mm).
The loader has a lift capacity (at bucket pin) of 9185 lbs (4175 kg) to
max height of 132.6" (3368 mm), and breakout force (bucket on ground) of
10750 lbs (4885 kg). The bucket dump clearance is 104.3" (2651 mm) at
max dump angle of 44 degrees. The loader is equipped with a 89" (2260
mm) standard material bucket with a rated capacity of 29.1 cu.ft (0.83
m3).
The backhoe (extendable stick) work ranges consist of a bucket digging
force of 11491 lbs (5223 kg) and dipperstick digging force of 5250 lbs
(2386 kg). The digging depth at max value is 14 ft 4 in (4360 mm), and
overall reach from swing pivot is 18 ft 5 in (5618 mm) at ground line.
The backhoe is available with 16", 20", 24", 30" and 36" buckets.
Engine Model |
Caterpillar 3054C DINA |
Engine Type |
Four-stroke, 4-cylinder, liquid cooled diesel |
Number of Cylinders |
4, In-Line |
Displacement, cu in (L) |
268 (4.40) |
Engine Bore, in (mm) |
4.13 (105.0) |
Engine Stroke, in (mm) |
5.00 (127.0) |
Aspiration |
Natural |
Maximum Engine Power, hp (kW) |
78.0 (58.0) |
Rated Engine Power, hp (kW) |
74.0 (55.0) |
Rated Engine Speed, rpm |
2200 |
Maximum Torque, Nm (lb-ft) |
386 (285) |
Torque Speed, rpm |
1400 |
Compression |
16.2:1 |
Emission |
Tier 2 |
Fuel System |
Direct Injection |
Rotation |
Counterclockwise |
Air Cleaner |
Dry-type axial seal |
Fuel Tank Capacity, gal (L) |
38.0 (144.0) |
Oil Capacity, qts (L) |
8.0 (7.6) |
Coolant Capacity, qts (L) |
16.8 (15.9) |
Electrical System Rating, Volts |
12 |
Battery Rating |
880 CCA |
Transmission Type |
Power Shuttle |
Gearbox Type |
4F/4R, Full synchromesh |
Number of Forward Gears |
4 |
Number of Reverse Gears |
4 |
Torque Converter |
Single-stage |
Torque Converter Ratio |
2.63:1 |
Oil Capacity, qts (L) |
19.1 (18.0) |
Maximum Forward Speed, mph (kph) |
24.8 (39.9) |
Maximum Reverse Speed, mph (kph) |
24.8 (39.9) |
Drive Wheels |
2WD/4WD |
Steering Configuration |
Front Steer |
Steering System |
Hydrostatic |
Steering Cylinder |
One, Double-acting |
Steering Cylinder Bore, in (mm) |
2.56 (65) |
Steering Cylinder Stroke, in (mm) |
4.72 (120) |
Steering Cylinder Rod Diameter, in (mm) |
1.42 (36) |
Service Brakes |
Fully enclosed, hydraulic, multiple discs |
Parking Brake |
Mechanical, independent |
Front Tire Size (2WD) |
11L-16 12PR F3 |
Front Tire Size (4WD) |
12.5/80-18 10PR |
Rear Tire Size |
19.5L-24 12PR R4 |
Front Tire Size (4WD, Radial) |
335/80R18 |
Rear Tire Size (4WD, Radial) |
19.5L-R24 |
Front Tread, in (mm) |
70.4 (1780) |
Rear Tread, in (mm) |
67.7 (1714) |
Hydraulic System Type |
Closed center load sensing |
Hydraulic Pump Type |
Variable displacement, axial piston |
Hydraulic Pump Flow, gpm (Lpm) |
34.8 (132.0) |
Hydraulic Pressure, Bar (psi) |
227 (3292) |
Hydraulic System Capacity, gal (L) |
21.0 (79.5) |
Valves Type |
Flow-sharing |
Wheelbase |
87 in (2200 mm) |
Transport Length |
23 ft 9 in (7233 mm) |
Overall Length, (Loader on ground) |
23 ft 7 in (7180 mm) |
Transport Height |
11 ft 9 in (3577 mm) |
Height (Cab) |
111.4 in (2819 mm) |
Height (Exhaust) |
108.9 in (2754 mm) |
Overall Width |
96.4 in (2438 mm) |
Ground Clearance |
12.6 in (320 mm) |
Turning Radius |
13 ft 5 in (4080 mm) |
Weight (2WD) |
14940 lbs (6790 kg) |
Weight (4WD) |
15280 lbs (6945 kg) |
Weight (Maximum) |
22460 lbs (10200 kg) |
Bucket Hinge Pin, Max Height (2WD) |
10 ft 10 in (3296 mm) |
Bucket Hinge Pin, Max Height (4WD) |
11 ft 1 in (3368 mm) |
Dump Angle at Full Height |
44 degrees |
Dump Clearance at Full Height |
8 ft 8 in (2651 mm) |
Dump Reach at Full Height |
30.5 in (772 mm) |
Maximum Bucket Rollback at Ground Level |
39 degrees |
Digging Depth |
4.2 in (106 mm) |
Maximum Grading Angle |
110 degrees |
Grill to Bucket Cutting Edge |
4 ft 8 in (1428 mm) |
Maximum Operating Height |
13 ft 4 in (4063 mm) |
Lift Capacity at Maximum Height |
9185 lbs (4175 kg) |
Breakout Force |
10750 lbs (4885 kg) |
Bucket Width, in (mm) |
89 (2260) |
Bucket Capacity, cu.ft (m3) |
29.1 (0.83) |
Loader Weight |
980 lbs (445 kg) |
Maximum Digging Depth |
14 ft 4 in (4360 mm) |
Digging Depth, 24 in (610 mm) Flat Bottom |
14 ft 2 in (4321 mm) |
Reach From Swing Pivot at Ground Line |
18 ft 5 in (5618 mm) |
Loading Height |
11 ft 11 in (3636 mm) |
Loading Reach |
5 ft 10 in (1768 mm) |
Maximum Operating Height |
18 ft 1 in (5523 mm) |
Swing Arc |
180 degrees |
Bucket Rotation |
205 degrees |
Stabilizer Spread (Operating Position) |
10 ft 10 in (3310 mm) |
Stabilizer Spread (Transport Position) |
7 ft 7 in (2322 mm) |
Digging Force (Bucket Cylinder) |
11665 lbs (5302 kg) |
Digging Force (Crowd Cylinder) |
7151 lbs (3250 kg) |
Backhoe (Extendable Stick) |
Maximum Digging Depth |
17 ft 11 in (5456 mm) |
Digging Depth, 24 in (610 mm) Flat Bottom |
17 ft 10 in (5420 mm) |
Reach From Swing Pivot at Ground Line |
21 ft 11 in (6666 mm) |
Loading Height |
13 ft 7 in (4145 mm) |
Loading Reach |
9 ft 1 in (2771 mm) |
Maximum Operating Height |
20 ft 8 in (6302 mm) |
Swing Arc |
180 degrees |
Bucket Rotation |
205 degrees |
Stabilizer Spread (Operating Position) |
10 ft 10 in (3310 mm) |
Stabilizer Spread (Transport Position) |
7 ft 7 in (2322 mm) |
Digging Force (Bucket Cylinder) |
11491 lbs (5223 kg) |
Digging Force (Crowd Cylinder) |
5250 lbs (2386 kg) |
