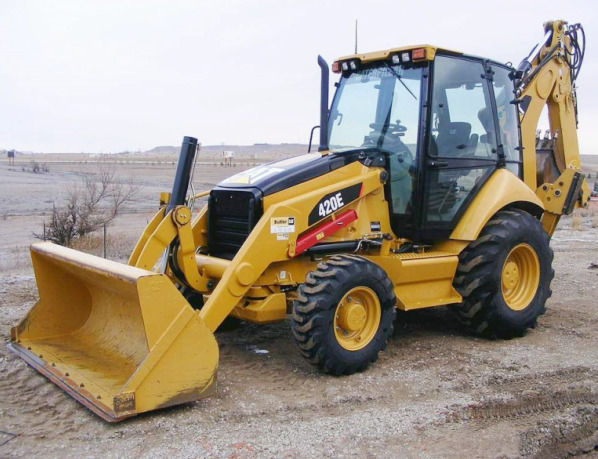

Cat 420E Backhoe Loader
The
Caterpillar 420E is a 2WD or 4WD backhoe loader. This model was manufactured
between 2006 and 2015. The Cat 420E is powered by Caterpillar 3054C DIT
four-cylinder direct injection turbocharged diesel engine with a maximum power
of 93 hp (69 kw) and 386 Nm (285 lb-ft) of peak torque at 1400 rpm.
The Caterpillar 420E is fitted with 2 types of transmission with
single-stage torque converter. Type 1: 4x4 power shuttle transmission.
Type 2: auto-shift transmission with 5 forward and 3 reverse gears. Max.
travel speed (forward or reverse): 24.9 mph (40.1 km/h).
The closed center load sensing hydraulic system includes a variable
displacement axial piston pump with rated capacity of 43 gal/min (163
l/min). The main relief pressure is 249 bar (3611 psi). The 2-wheel
drive models are equipped with 11Lx16 front tires and 19.5Lx24 rear
tires. The 335/80R18 front tires and 19.5LxR24 rear tires are used for
models with 4-wheel drive.
The loader has a breakout force of 10401 lbs (4728 kg), and a lift
capacity (at bucket pin) of 6475 lbs (2937 kg) to maximum height of 11
ft 1 in (3368 mm) for 4WD models, or 10 ft 10 in (3296 mm) for 2WD
models. The clearance with bucket dumped is 8 ft 7 in (2604 mm) at max
dump angle of 44 degrees. The 89-in general purpose bucket has a heaped
capacity of 28.4 cu.ft (0.81 m3).
The backhoe with extendable stick has a bucket dig force of 13863 lbs
(6300 kg) and dipperstick digging force of 7023 lbs (3192 kg). The max
digging depth is 17 ft 11 in (5456 mm), and 2-ft digging depth is 17 ft
10 in (5420 mm). The backhoe is compatible with 12", 18", 24", 30", 36"
standard material buckets, 12", 16", 18", 24", 30", 36" heavy-duty
material buckets, and 18", 24", 30", 36" soil excavation buckets.
| Engine Model |
Caterpillar 3054C DIT |
| Engine Type |
Four-cylinder, direct injection turbocharged diesel |
| Number of Cylinders |
4, In-Line |
| Displacement, cu in (L) |
268 (4.40) |
| Engine Bore, in (mm) |
4.13 (105.0) |
| Engine Stroke, in (mm) |
5.00 (127.0) |
| Aspiration |
Turbocharged |
| Maximum Engine Power, hp (kW) |
93.0 (69.0) |
| Rated Engine Power, hp (kW) |
89.0 (66.0) |
| Rated Engine Speed, rpm |
2200 |
| Maximum Torque, Nm (lb-ft) |
386 (285) |
| Torque Speed, rpm |
1400 |
| Compression |
16.2:1 |
| Emission |
Tier 2 |
| Fuel System |
Direct Injection |
| Rotation |
Counterclockwise |
| Air Cleaner |
Dry-type axial seal |
| Fuel Tank Capacity, gal (L) |
38.0 (144.0) |
| Oil Capacity, qts (L) |
8.0 (7.6) |
| Coolant Capacity, qts (L) |
16.8 (15.9) |
| Electrical System Rating, Volts |
12 |
| Battery Rating |
880 CCA |
| Transmission Type (Std) |
Power Shuttle |
| Gearbox Type |
4F/4R, Full synchromesh |
| Number of Forward Gears |
4 |
| Number of Reverse Gears |
4 |
| Torque Converter |
Single-stage |
| Torque Converter Ratio |
2.63:1 |
| Oil Capacity, qts (L) |
19.1 (18.0) |
| Maximum Forward Speed, mph (kph) |
24.9 (40.1) |
| Maximum Reverse Speed, mph (kph) |
24.9 (40.1) |
| Transmission Type (Opt) |
5F/3R, Auto Shift |
| Number of Forward Gears |
5 |
| Number of Reverse Gears |
3 |
| Torque Converter |
Single-stage |
| Oil Capacity, qts (L) |
20.0 (19.0) |
| Maximum Forward Speed, mph (kph) |
24.9 (40.1) |
| Maximum Reverse Speed, mph (kph) |
16.6 (26.7) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic |
| Steering Cylinder |
One, Double-acting |
| Steering Cylinder Bore, in (mm) |
2.6 (65) |
| Steering Cylinder Stroke, in (mm) |
4.7 (120) |
| Steering Cylinder Rod Diameter, in (mm) |
1.4 (36) |
| Service Brakes |
Inboard, oil-immersed, multiple disc |
| Parking Brake |
Mechanical, independent |
| Front Tire Size (2WD) |
11L-16 12PR F3 |
| Front Tire Size (4WD) |
12.5/80-18 10PR |
| Rear Tire Size |
19.5L-24 12PR R4 |
| Front Tire Size (4WD, Radial) |
335/80R18 |
| Rear Tire Size (4WD, Radial) |
19.5L-R24 |
| Front Tread, in (mm) |
74.3 (1880) |
| Rear Tread, in (mm) |
68.3 (1727) |
| Hydraulic System Type |
Closed center load sensing |
| Hydraulic Pump Type |
Variable displacement, axial piston |
| Hydraulic Pump Flow, gpm (Lpm) |
43.0 (163.0) |
| Hydraulic Pressure, Bar (psi) |
249 (3611) |
| Hydraulic System Capacity, gal (L) |
21.0 (79.5) |
| Valves Type |
Flow Sharing |
| Wheelbase |
87 in (2200 mm) |
| Transport Length |
24 ft (7311 mm) |
| Overall Length, (Loader on ground) |
23 ft 9 in (7245 mm) |
| Transport Height |
11 ft 9 in (3577 mm) |
| Height (Cab) |
111.4 in (2819 mm) |
| Height (Exhaust) |
108.9 in (2754 mm) |
| Overall Width |
96.4 in (2438 mm) |
| Ground Clearance |
12.6 in (320 mm) |
| Turning Radius |
13 ft 5 in (4080 mm) |
| Weight (2WD) |
15455 lbs (7025 kg) |
| Weight (4WD) |
15795 lbs (7180 kg) |
| Weight (Maximum) |
23540 lbs (10700 kg) |
| Bucket Hinge Pin, Max Height (2WD) |
10 ft 10 in (3296 mm) |
| Bucket Hinge Pin, Max Height (4WD) |
11 ft 1 in (3368 mm) |
| Dump Angle at Full Height |
44 degrees |
| Dump Clearance at Full Height |
8 ft 7 in (2604 mm) |
| Dump Reach at Full Height |
32.5 in (821 mm) |
| Maximum Bucket Rollback at Ground Level |
39 degrees |
| Digging Depth |
4.2 in (106 mm) |
| Maximum Grading Angle |
108 degrees |
| Grill to Bucket Cutting Edge |
4 ft 10 in (1484 mm) |
| Maximum Operating Height |
13 ft 9 in (4196 mm) |
| Lift Capacity at Maximum Height |
6475 lbs (2937 kg) |
| Breakout Force |
10401 lbs (4728 kg) |
| Bucket Width |
89 in (2260 mm) |
| Bucket Capacity |
28.4 cu.ft (0.81 m3) |
| Loader Weight |
990 lbs (450 kg) |
| Maximum Digging Depth |
14 ft 4 in (4360 mm) |
| Digging Depth, 24 in (610 mm) Flat Bottom |
14 ft 2 in (4321 mm) |
| Reach From Swing Pivot at Ground Line |
18 ft 5 in (5618 mm) |
| Loading Height |
11 ft 11 in (3636 mm) |
| Loading Reach |
5 ft 10 in (1768 mm) |
| Maximum Operating Height |
18 ft 1 in (5523 mm) |
| Swing Arc |
180 degrees |
| Bucket Rotation |
205 degrees |
| Stabilizer Spread (Operating Position) |
10 ft 10 in (3310 mm) |
| Stabilizer Spread (Transport Position) |
7 ft 7 in (2322 mm) |
| Digging Force (Bucket Cylinder) |
13875lbs (6305 kg) |
| Digging Force (Crowd Cylinder) |
9662 lbs (4391 kg) |
| Backhoe (Extendable Stick) |
| Maximum Digging Depth |
17 ft 11 in (5456 mm) |
| Digging Depth, 2-ft (610 mm) Flat Bottom |
17 ft 10 in (5420 mm) |
| Reach From Swing Pivot at Ground Line |
21 ft 11 in (6666 mm) |
| Loading Height |
13 ft 7 in (4145 mm) |
| Loading Reach |
9 ft 1 in (2771 mm) |
| Maximum Operating Height |
20 ft 8 in (6302 mm) |
| Swing Arc |
180 degrees |
| Bucket Rotation |
205 degrees |
| Stabilizer Spread (Operating Position) |
10 ft 10 in (3310 mm) |
| Stabilizer Spread (Transport Position) |
7 ft 7 in (2322 mm) |
| Digging Force (Bucket Cylinder) |
13863 lbs (6300 kg) |
| Digging Force (Crowd Cylinder) |
7023 lbs (3192 kg) |
