Cat 436C Backhoe Loader
The

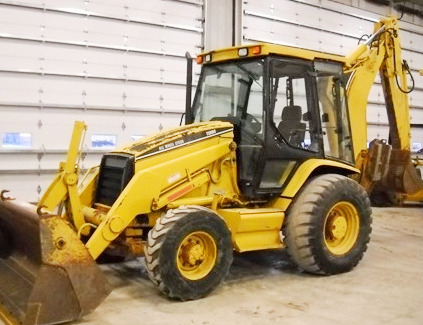

Caterpillar 436C backhoe loader was manufactured from 1996 to 2000. The
components of Cat 436C driveline system: a Caterpillar 3054 DIT 4-cylinder
direct injection liquid-cooled turbocharged diesel engine, and 4x4 power shuttle
full synchromesh transmission with single-stage torque converter. A 243 cu.in (4
L) engine has a cylinder bore of 3.94" (100 mm), piston stroke of 5.0" (127 mm),
and rated power of 85 hp (63 kW).
The maximum forward speed - 20.9 mph (33.7 kph), maximum reverse speed -
20.9 mph (33.7 kph). The closed center load-sensing hydraulic system
used axial piston pump with a flow rate of 43 gpm (162 lpm). The
hydraulic system pressure is 207 bar (3000 psi). The Caterpillar 436C
was equipped with all wheel steer system (AWS), hydraulic multiple disc
brakes, 11L-16 (2WD) or 12.5/80-18 (4WD) front tires, and 16.9-24 (2WD)
or 19.5L-24 (4WD/AWS) rear tires. The wheelbase is 83 in (2100 mm).
The front end loader has a lifting capacity (at pin) of 7196 lbs (3264
kg) to max height of 11 ft (3350 mm), and bucket's breakout force of
10518 lbs (4781 kg). The bucket dump clearance is 102.4 in (2590 mm) at
maximum dump angle of 45 degrees. The 95" (2400 mm) standard material
bucket has a rated capacity of 29.2 cu.ft (0.84 m3).
The backhoe (standard stick) digs to maximum depth of 16 ft 3 in (4953
mm). The digging force is 14440 lbs (6563 kg) for the bucket cylinder
and 8685 lbs (3948 kg) for the dipperstick cylinder. The reach from
swing pivot at ground line is 20 ft 7 in (6268 mm). The backhoe can be
equipped with 12" (305 mm), 18" (455 mm), 24" (605 mm), 30" (760 mm),
and 36" (910 mm) buckets.
| Engine Model |
Caterpillar 3054 DIT |
| Engine Type |
4-cylinder, liquid-cooled turbocharged diesel |
| Number of Cylinders |
Four, In-Line |
| Displacement, cu in (L) |
243 (4.00) |
| Engine Bore, in (mm) |
3.94 (100.0) |
| Engine Stroke, in (mm) |
5.00 (127.0) |
| Aspiration |
Turbocharged |
| Maximum Engine Power, hp (kW) |
89.0 (66.0) |
| Rated Engine Power, hp (kW) |
85.0 (63.0) |
| Rated Engine Speed, rpm |
2200 |
| Compression |
16.2:1 |
| Fuel System |
Direct Injection |
| Rotation |
Counterclockwise |
| Air Cleaner |
Dry-type |
| Fuel Tank Capacity, gal (L) |
33.7 (128.0) |
| Oil Capacity, qts (L) |
7.7 (7.3) |
| Coolant Capacity, qts (L) |
20.1 (18.9) |
| Electrical System Rating, Volts |
12 |
| Alternator Rating, Amp |
52 |
| Transmission Type |
Power Shuttle |
| Gearbox Type |
4F/4R, Full synchromesh |
| Number of Forward Gears |
4 |
| Number of Reverse Gears |
4 |
| Torque Converter |
Single-stage |
| Torque Converter Ratio |
2.63:1 |
| Oil Capacity, qts (L) |
19.1 (18.0) |
| Maximum Forward Speed, mph (kph) |
20.9 (33.7) |
| Maximum Reverse Speed, mph (kph) |
20.9 (33.7) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
All Wheel Steer |
| Steering System |
Full hydrostatic steering with 3 modes |
| Steering Modes |
Two wheel steer, circle steer, and independent rear wheels |
| Steering Cylinder |
Two, Double-acting (front and rear) |
| Steering Cylinder Bore (Front Wheels), in (mm) |
2.6 (65) |
| Steering Cylinder Stroke (Front Wheels), in (mm) |
8.3 (210) |
| Steering Cylinder Rod Diameter (Front Wheels), in (mm) |
1.4 (36) |
| Steering Cylinder Bore (Rear Wheels), in (mm) |
3.1 (80) |
| Steering Cylinder Stroke (Rear Wheels), in (mm) |
4.1 (104) |
| Steering Cylinder Rod Diameter (Rear Wheels), in (mm) |
1.6 (40) |
| Service Brakes |
Fully enclosed, hydraulic, multiple discs |
| Parking Brake |
Mechanical, independent |
| Front Tire Size (2WD) |
11L-16, 12 PR, F3 |
| Front Tire Size (4WD) |
12.5/80-18, 10 PR, SG |
| Rear Tire Size (2WD) |
16.9-24, 8 PR, R4 |
| Rear Tire Size (4WD) |
19.5L-24, 10 PR |
| Rear Tire Size (AWS) |
19.5L-24, 10 PR |
| Hydraulic System Type |
Load-sensing, closed center |
| Hydraulic Pump Type |
Variable, axial piston |
| Hydraulic Pump Flow, gpm (Lpm) |
43.0 (162.0) |
| Hydraulic Pressure, Bar (psi) |
207 (3000) |
| Hydraulic System Capacity, gal (L) |
20.8 (79.0) |
| Valves Type |
Pressure-compensated |
| Wheelbase |
83 in (2100 mm) |
| Transport Length |
24 ft 1 in (7300 mm) |
| Overall Length, (Loader on ground) |
24 ft (7295 mm) |
| Transport Height |
12 ft 4 in (3750 mm) |
| Height (Cab) |
113.4 (2870 mm) |
| Height (Exhaust) |
107.1 (2710 mm) |
| Overall Width |
88.3 in (2235 mm) |
| Ground Clearance |
13.9 (352 mm) |
| Front Tread |
72.3 in (1828 mm) |
| Rear Tread |
67.7 in (1714 mm) |
| Turning Radius (Two Wheel Steer) |
17 ft 9 in (5400 mm) |
| Turning Radius (Circle Steer) |
17 ft 1 in (5200 mm) |
| Turning Radius (Independent Rear Wheels) |
15 ft 7 in (4750 mm) |
| Weight |
15600 lbs (7075 kg) |
| Bucket Hinge Pin, Max Height |
11 ft (3350 mm) |
| Dump Angle at Full Height |
45 degrees |
| Dump Clearance at 45 deg |
102.4 in (2590 mm) |
| Dump Reach at 45 deg |
30.8 in (780 mm) |
| Maximum Bucket Rollback at Ground Level |
39 degrees |
| Digging Depth |
1.7 in (42 mm) |
| Maximum Grading Angle |
109 degrees |
| Maximum Operating Height |
14 ft 1 in (4290 mm) |
| Lift Capacity at Maximum Height |
7196 lbs (3264 kg) |
| Breakout Force |
10518 lbs (4781 kg) |
| Bucket Width, in (mm) |
95 (2400) |
| Bucket Capacity, cu.ft (m3) |
29.2 (0.84) |
| Loader Weight |
1010 lbs (459 kg) |
| Maximum Digging Depth |
16 ft 3 in (4953 mm) |
| Digging Depth, 2 ft (610 mm) Flat Bottom |
16 ft 2 in (4926 mm) |
| Overall Operating Height at Full Lift |
19 ft 3 in (5862 mm) |
| Loading Height |
12 ft 11 in (3935 mm) |
| Reach From Swing Pivot at Ground Line |
20 ft 7 in (6268 mm) |
| Loading Reach |
6 ft 4 in (1917 mm) |
| Swing Arc |
180 degrees |
| Bucket Rotation (Vertical Wall Position) |
170 degrees |
| Bucket Rotation (Truck Loading Position) |
170 degrees |
| Stabilizer Spread (Operating Position) |
10 ft 7 in (3219 mm) |
| Stabilizer Spread (Transport Position) |
7 ft 9 in (2352 mm) |
| Digging Force (Bucket Cylinder) |
14440 lbs (6563 kg) |
| Digging Force (Crowd Cylinder) |
8685 lbs (3948 kg) |
| Backhoe (Extendable Stick) |
| Maximum Digging Depth |
20 ft 4 in (6202 mm) |
| Digging Depth, 2 ft (610 mm) Flat Bottom |
20 ft 3 in (6160 mm) |
| Overall Operating Height at Full Lift |
21 ft 2 in (6444 mm) |
| Loading Height |
15 ft 8 in (4783 mm) |
| Reach From Swing Pivot at Ground Line |
24 ft 4 in (7406 mm) |
| Loading Reach |
8 ft 11 in (2717 mm) |
| Swing Arc |
180 degrees |
| Bucket Rotation (Vertical Wall Position) |
165 degrees |
| Bucket Rotation (Truck Loading Position) |
165 degrees |
| Stabilizer Spread (Operating Position) |
10 ft 7 in (3219 mm) |
| Stabilizer Spread (Transport Position) |
7 ft 9 in (2352 mm) |
| Digging Force (Bucket Cylinder) |
14440 lbs (6560 kg) |
| Digging Force (Crowd Cylinder) |
6529 lbs (2967 kg) |
