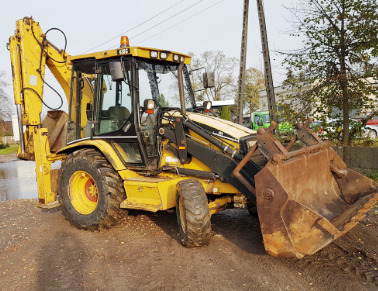

Cat 438C Backhoe Loader

The Caterpillar 438C is a 4x4 backhoe loader with all wheel steer system. This model was manufactured between 1986 and 2000. The Cat 438C is equipped with a Caterpillar 3054 DIT 4-cylinder direct injection liquid-cooled turbo diesel engine rated at 85 Hp (63 kW). The max. torque is 435 Nm (305 lb-ft) at 1400 rpm.

The powershuttle transmission includes a 4x4 full synchromesh gearbox and single-stage torque converter. The maximum forward or reverse speed - 20 mph (32.3 km/h). The closed center load-sensing hydraulic system includes a piston pump with flow rate of 43 gpm (162 lpm).

The hydraulic pressure is 207 bar (3000 psi). The Cat 438C backhoe loader is equipped with 12.5/80-18 front tyres and 16.9-28 rear tyres. The front end loader has a lifting capacity (bucket pin) of 7275 lbs (3300 kg) to full height of 133" (3360 mm), and boom breakout force of 11105 lbs (5048 kg). The bucket dump clearance is 102.8" (2600 mm) at max dump angle of 45 degrees. The 89" bucket has a rated capacity of 33.3 cu.ft (0.95 m3).

The backhoe with standard dipperstick digs to a maximum depth of 14 ft 2 in (4326 mm). The digging force is 12195 lbs (5545 kg) for the bucket cylinder and 7427 lbs (3376 kg) for the crowd cylinder. The overall reach from swing pivot (extendable dipperstick) is 22 ft 2 in (6756 mm) at ground level. The backhoe can be fitted with 12", 16", 18", 24", 30", 36" standard material buckets.

Engine
Engine Model Caterpillar 3054 DIT
Engine Type 4-cylinder, liquid-cooled turbocharged diesel
Number of Cylinders Four, In-Line
Displacement, cu in (L) 243 (4.00)
Engine Bore, in (mm) 3.94 (100.0)
Engine Stroke, in (mm) 5.00 (127.0)
Aspiration Turbocharged
Maximum Engine Power, hp (kW) 89.0 (66.0)
Rated Engine Power, hp (kW) 85.0 (63.0)
Rated Engine Speed, rpm 2200
Compression 16.2:1
Fuel System Direct Injection
Rotation Counterclockwise
Air Cleaner Dry-type
Fuel Tank Capacity, gal (L) 33.7 (128.0)
Oil Capacity, qts (L) 7.7 (7.3)
Coolant Capacity, qts (L) 20.1 (18.9)
Electrical System Rating, Volts 12
Alternator Rating, Amp 52

Transmission
Transmission Type Power Shuttle
Gearbox Type 4F/4R, Full synchromesh
Number of Forward Gears 4
Number of Reverse Gears 4
Torque Converter Single-stage
Torque Converter Ratio 2.63:1
Oil Capacity, qts (L) 19.1 (18.0)
Maximum Forward Speed, mph (kph) 20.0 (32.3)
Maximum Reverse Speed, mph (kph) 20.0 (32.3)

Wheels and Tires
Drive Wheels 4WD 4x4
Steering Configuration All Wheel Steer
Steering System Full hydrostatic steering with 3 modes
Steering Modes Two wheel steer, circle steer, and independent rear wheels
Steering Cylinder Two, Double-acting (front and rear)
Service Brakes Fully enclosed, hydraulic, multiple discs
Parking Brake Mechanical, independent
Front Tire Size 12.5/80-18, 10PR, SG
Rear Tire Size 16.9-28, 10PR, R4
Rear Tire Size (AWS) 16.9-28, 12PR, R4
Front Tread, in (mm) 70.5 (1780)
Rear Tread, in (mm) 67.8 (1714)


Hydraulic System
Hydraulic System Type Load-sensing, closed center
Hydraulic Pump Type Variable, axial piston
Hydraulic Pump Flow, gpm (Lpm) 43.0 (162.0)
Hydraulic Pressure, Bar (psi) 207 (3000)
Hydraulic System Capacity, gal (L) 20.8 (80.0)
Valves Type Pressure-compensated

Dimensions and Weight
Wheelbase 83 in (2100 mm)
Transport Length 18 ft 10 in (5740 mm)
Overall Length, (Loader on ground) 18 ft 7 in (5665 mm)
Transport Height 12 ft 4 in (3750 mm)
Height (Cab) 114.6 (2900 mm)
Height (Exhaust) 108.7 (2750 mm)
Overall Width 94.5 in (2392 mm)
Ground Clearance 13.2 (335 mm)
Turning Radius (Two Wheel Steer) 17 ft 9 in (5400 mm)
Turning Radius (Circle Steer) 17 ft 1 in (5200 mm)
Turning Radius (Independent Rear Wheels) 15 ft 7 in (4750 mm)
Weight 16670 lbs (7560 kg)

Loader
Bucket Hinge Pin, Maximum Height 11 ft 1 in (3360 mm)
Dump Angle at Full Height 45 degrees
Dump Clearance at 45 deg 102.8 in (2600 mm)
Dump Reach at 45 deg 30.8 in (780 mm)
Maximum Bucket Rollback at Ground Level 39 degrees
Digging Depth 3.2 in (80 mm)
Maximum Grading Angle 113 degrees
Maximum Operating Height 14 ft 1 in (4285 mm)
Lift Capacity at Maximum Height 7275 lbs (3300 kg)
Breakout Force 11105 lbs (5048 kg)
Bucket Width 89 in (2260 mm)
Bucket Capacity 33.3 cu.ft (0.95 m3)
Loader Weight 1400 lbs (635 kg)

Backhoe (Standard Stick)
Maximum Digging Depth 14 ft 2 in (4326 mm)
Digging Depth, 2 ft (610 mm) Flat Bottom 14 ft 1 in (4288 mm)
Overall Operating Height at Full Lift 18 ft 3 in (5568 mm)
Loading Height 12 ft 1 in (3684 mm)
Reach From Swing Pivot at Ground Line 18 ft 9 in (5711 mm)
Loading Reach 5 ft 5 in (1660 mm)
Swing Arc 180 degrees
Bucket Rotation (Vertical Wall Position) 170 degrees
Bucket Rotation (Truck Loading Position) 170 degrees
Sideshift From Machine Centerline 24.9 in (630 mm)
Stabilizer Spread 7 ft 9 in (2360 mm)
Digging Force (Bucket Cylinder) 12195 lbs (5545 kg)
Digging Force (Crowd Cylinder) 7427 lbs (3376 kg)

Backhoe (Extendable Stick)
Maximum Digging Depth 17 ft 11 in (5455 mm)
Digging Depth, 2 ft (610 mm) Flat Bottom 17 ft 9 in (5409 mm)
Overall Operating Height at Full Lift 20 ft 5 in (6220 mm)
Loading Height 14 ft 3 in (4344 mm)
Reach From Swing Pivot at Ground Line 22 ft 2 in (6756 mm)
Loading Reach 8 ft 6 in (2596 mm)
Swing Arc 180 degrees
Bucket Rotation (Vertical Wall Position) 165 degrees
Bucket Rotation (Truck Loading Position) 165 degrees
Sideshift From Machine Centerline 24.9 in (630 mm)
Stabilizer Spread 7 ft 9 in (2360 mm)
Digging Force (Bucket Cylinder) 12060 lbs (5480 kg)
Digging Force (Crowd Cylinder) 5350 lbs (2432 kg)
