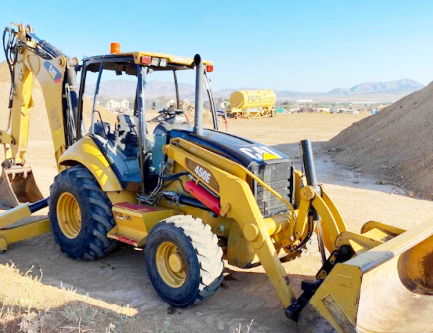

Cat 450E Backhoe Loader
The
Caterpillar 450E is a 4WD (4x4) backhoe loader. This model was manufactured from
2007 to 2017. The Cat 450E powerline system components: a 268 cu.in (4.4 L)
Caterpillar C4.4 four-cylinder direct injection turbocharged diesel engine with
a maximum power of 137 hp (102 kW), and 5x3 Auto Shift transmission with
single-stage torque converter.
The maximum travel speed (forward and reverse): 24.9 mph (40.1 km/h) /
17 mph (27.3 km/h). The closed center load sensing hydraulic system used
a secondary gear pump with a flow of 51.3 gal/min (194 l/min). The
hydraulic system pressure is 245 bar (3550 psi) for loader and 262 bar
(3800 psi) for backhoe. The Caterpillar 450E is equipped with 15x19.5
front tyres and 21L-24R4 rear tyres. The wheelbase is 87" (2200 mm).
The loader has a maximum lift height of 11 ft 5 in (3486 mm) at pin and
clearance with bucket dumped of 8 ft 8 in (2647 mm). The lift capacity
is rated at 8439 lbs (3828 kg) lbs to max height, and bucket's breakout
force is 11746 lbs (5340 kg). The 96 in (2430 mm) standard material
bucket has a nominal heaped capacity of 38.2 cu.ft (1.09 m3).
The backhoe (extendable stick) work ranges consist of a bucket digging
force of 17760 lbs (8073 kg), and dipperstick digging force of 8992 lbs
(4087 kg). The maximum digging depth is 21 ft 4 in (6500 mm), and reach
from swing pivot is 25 ft 10 in (7884 mm) at ground level. The backhoe
is compatible with 18" (455 mm), 24" (605 mm), 30" (760 mm), and 36"
(910 mm) buckets.
| Engine Model |
Caterpillar C4.4 |
| Engine Type |
4-cylinder, direct injection turbocharged diesel |
| Number of Cylinders |
Inline 4 |
| Displacement, cu in (L) |
268 (4.4) |
| Engine Bore, in (mm) |
4.13 (105.0) |
| Engine Stroke, in (mm) |
5.00 (127.0) |
| Aspiration |
Turbocharged |
| Maximum Engine Power, hp (kW) |
137.0 (102.0) |
| Rated Engine Power, hp (kW) |
124.0 (92.0) |
| Rated Engine Speed, rpm |
2200 |
| Maximum Torque, Nm (lb-ft) |
750 (556) |
| Torque Speed, rpm |
1400 |
| Compression |
16.5:1 |
| Emission Level |
Tier 3 |
| Fuel System |
Direct Injection |
| Rotation |
Counterclockwise |
| Air Cleaner |
Dry-type axial seal |
| Fuel Tank Capacity, gal (L) |
38.4 (145.0) |
| Oil Capacity, qts (L) |
9.0 (8.5) |
| Coolant Capacity, qts (L) |
27.1 (25.6) |
| Electrical System Rating, Volts |
12 |
| Battery Rating |
880 CCA |
| Transmission Type |
5F/3R, Auto Shift |
| Number of Forward Gears |
5 |
| Number of Reverse Gears |
3 |
| Torque Converter |
Single-stage |
| Torque Converter Ratio |
2.38:1 |
| Oil Capacity, qts (L) |
22.3 (21.0) |
| Maximum Forward Speed, mph (kph) |
24.9 (40.1) |
| Maximum Reverse Speed, mph (kph) |
17.0 (27.3) |
| Drive Wheels |
4WD 4x4 |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic, Hand Metering Unit |
| Steering Cylinder |
One, Double-acting |
| Steering Cylinder Bore, in (mm) |
3.35 (85) |
| Steering Cylinder Stroke, in (mm) |
9.32 (236) |
| Steering Cylinder Rod Diameter, in (mm) |
1.66 (42) |
| Service Brakes |
Boosted, outboard, oil-immersed, multiple disc |
| Parking Brake |
Mechanical, independent |
| Front Tire Size |
15x19.5 12PR |
| Rear Tire Size |
21L-24R4 18PR |
| Front Tread, in (mm) |
79.7 (2016) |
| Rear Tread, in (mm) |
71.7 (1814) |
| Hydraulic System Type |
Closed center load sensing |
| Hydraulic Pump Type |
Variable displacement piston, secondary gear pump |
| Hydraulic Pump Flow, gpm (Lpm) |
51.3 (194.0) |
| System Pressure (Loader), Bar (psi) |
245 (3550) |
| System Pressure (Backhoe), Bar (psi) |
262 (3800) |
| Hydraulic System Capacity, gal (L) |
26.5 (100.0) |
| Wheelbase |
87 in (2200 mm) |
| Transport Length |
26 ft 1 in (7916 mm) |
| Overall Length, (Loader on ground) |
26 ft (7913 mm) |
| Transport Height |
13 ft 7 in (4143 mm) |
| Height (Cab) |
113.6 in (2874 mm) |
| Height (Exhaust) |
112.5 in (2845 mm) |
| Overall Width |
96.3 in (2436 mm) |
| Ground Clearance |
12.7 in (322 mm) |
| Turning Radius |
13 ft 9 in (4180 mm) |
| Weight (Operating) |
24100 lbs (10950 kg) |
| Weight (Maximum) |
27060 lbs (12300 kg) |
| Bucket Hinge Pin, Maximum Height |
11 ft 5 in (3486 mm) |
| Dump Angle at Full Height |
44 degrees |
| Dump Clearance at Full Height |
8 ft 8 in (2647 mm) |
| Dump Reach at Full Height |
33.9 in (858 mm) |
| Maximum Bucket Rollback at Ground Level |
40 degrees |
| Digging Depth |
9.1 in (229 mm) |
| Maximum Grading Angle |
106 degrees |
| Maximum Operating Height |
14 ft 10 in (4512 mm) |
| Lift Capacity at Maximum Height |
8439 lbs (3828 kg) |
| Breakout Force |
11746 lbs (5340 kg) |
| Tipping Load at Breakout Point |
18466 lbs (8376 kg) |
| Bucket Width, in (mm) |
96 (2430) |
| Bucket Capacity, cu.ft (m3) |
38.2 (1.09) |
| Loader Weight |
1526 lbs (692 kg) |
| Maximum Digging Depth |
17 ft 3 in (5257 mm) |
| Digging Depth, 8 ft Flat Bottom |
16 ft 2 in (4923 mm) |
| Digging Depth, 2 ft Flat Bottom |
17 ft 2 in (5221 mm) |
| Reach From Swing Pivot at Ground Line |
22 ft 1 in (6701 mm) |
| Loading Height |
14 ft 7 in (4447 mm) |
| Loading Reach |
6 ft 10 in (2091 mm) |
| Maximum Operating Height |
21 ft 5 in (6526 mm) |
| Swing Arc |
175 degrees |
| Bucket Rotation |
198 degrees |
| Stabilizer Spread (Operating Position) |
11 ft 10 in (3614 mm) |
| Stabilizer Spread (Transport Position) |
8 ft (2451 mm) |
| Digging Force (Bucket Cylinder) |
17760 lbs (8073 kg) |
| Digging Force (Crowd Cylinder) |
11802 lbs (5365 kg) |
| Backhoe (Extendable Stick) |
| Maximum Digging Depth |
21 ft 4 in (6500 mm) |
| Digging Depth, 8 ft Flat Bottom |
20 ft 5 in (6229 mm) |
| Digging Depth, 2 ft Flat Bottom |
21 ft 3 in (6465 mm) |
| Reach From Swing Pivot at Ground Line |
25 ft 10 in (7884 mm) |
| Loading Height |
17 ft 1 in (5206 mm) |
| Loading Reach |
10 ft 2 in (3098 mm) |
| Maximum Operating Height |
24 ft 2 in (7368 mm) |
| Swing Arc |
175 degrees |
| Bucket Rotation |
198 degrees |
| Stabilizer Spread (Operating Position) |
11 ft 10 in (3614 mm) |
| Stabilizer Spread (Transport Position) |
8 ft (2451 mm) |
| Digging Force (Bucket Cylinder) |
17760 lbs (8073 kg) |
| Digging Force (Crowd Cylinder) |
8992 lbs (4087 kg) |
