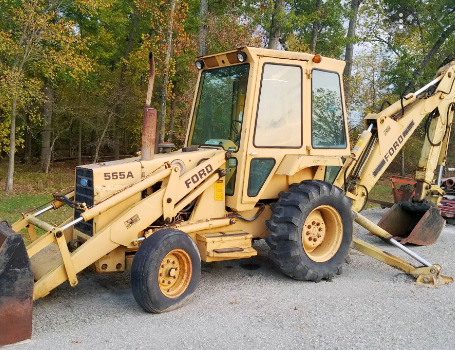

Ford 555A Backhoe Loader
The
Ford 555A is a two-wheel drive backhoe loader. This model was manufactured
between 1984 and 1985. The Ford 555A is equipped with a 201 cu.in (3.3 L)
4-stroke 3-cylinder liquid-cooled naturally aspirated diesel engine with a rated
power of 63 Hp (47 kW) and 229 Nm (169 lb-ft) of max torque at 1400 rev/min.
The
Ford 555A is fitted with 2 transmission options: 4x4 transmission with single
stage torque converter type, and manual-reversing transmission with 6 forward
and 4 reverse gears. The max travel speed (forward and reverse): 17.4 mph (27.9
km/h) / 17.2 mph (27.6 km/h). The open center hydraulic system used a gear pump
with a rated fluid flow of 28.5 gpm (108 lpm). The hydraulic pressure is 2400
psi (166 bar). The Ford 555A was equipped with a hydrostatic power steering,
differential mechanical wet disc brakes, 11Lx16 front tires, and 16.9x24 rear
tires. The wheel base is 80" (2030 mm).
The loader has a max lift height of 129"
(3270 mm) at pin and bucket dump clearance of 105" (2660 mm). The lifting
capacity is rated at 5200 lbs (2360 kg) to max height, and breakout force is
11850 lbs (5375 kg). The rated cycle times are 4.8 seconds lifting to maximum
height, and 1.7 seconds full bucket dumping. The 84" (2130 mm) standard material
bucket has a rated capacity of 1 cu.yd (0.8 m3).
The Ford 765 backhoe
operational data includes a bucket digging force of 9800 lbs (4455 kg), and
dipper arm dig force of 6920 lbs (3140 kg). The digging depth at max value is
185" (4690 mm), and reach from swing pivot is 231" (5860 mm) at ground level.
The backhoe can be fitted with 12" (305 mm), 18" (455 mm), 24" (605 mm), 30"
(760 mm), and 36" (910 mm) buckets.
| Engine Model |
Ford |
| Engine Type |
4-Stroke, three-cylinder liquid-cooled diesel |
| Number of Cylinders |
3 |
| Displacement, cu in (L) |
201 (3.30) |
| Engine Bore, in (mm) |
4.40 (112.0) |
| Engine Stroke, in (mm) |
4.40 (112.0) |
| Aspiration |
Naturally aspirated |
| Rated Engine Power, hp (kW) |
63.0 (47.0) |
| Rated Engine Speed, rpm |
2200 |
| Maximum Torque, Nm (ft-lb) |
229 (169) |
| Torque Speed, rpm |
1400 |
| Compression Ratio |
16.3:1 |
| Firing Order |
1-2-3 |
| Fuel System |
Injection pump |
| Governor |
Mechanical |
| Air Cleaner |
Dry |
| Intake Valve Clearance, in (mm) |
0.015 (0.38) |
| Exhaust Valve Clearance, in (mm) |
0.018 (0.46) |
| Fuel Tank Capacity, gal (L) |
24.0 (90.8) |
| Oil Capacity, qts (L) |
7.0 (6.6) |
| Coolant Capacity, qts (L) |
15.3 (14.5) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Alternator Rating, Amps |
32/51 |
| Transmission Type |
Torque Converter |
| Gearbox Type |
4F/4R, 4-speeds |
| Number of Forward Gears |
4 |
| Number of Reverse Gears |
4 |
| Torque Converter Type |
Single stage |
| Torque Converter Ratio |
2.78:1 |
| Oil Capacity, qts (L) |
19.0 (18.0) |
| Maximum Forward Speed, mph (kph) |
17.4 (27.9) |
| Maximum Reverse Speed, mph (kph) |
17.2 (27.6) |
| Transmission Type |
Manual-Reversing |
| Gearbox Type |
6F/4R, Unsynchronized gear |
| Number of Forward Gears |
6 |
| Number of Reverse Gears |
4 |
| Clutch Type |
Dry disc |
| Oil Capacity, qts (L) |
12.7 (12.0) |
| Maximum Forward Speed, mph (kph) |
16.8 (27.0) |
| Maximum Reverse Speed, mph (kph) |
15.0 (24.2) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Hydrostatic power |
| Brakes Type |
Differential mechanical wet disc |
| Front Tire Size |
11L-16 |
| Rear Tire Size |
16.9-24 |
| Front Tread, in (mm) |
68 (1720) |
| Rear Tread, in (mm) |
64 (1620) |
| Hydraulic System Type |
Open Center |
| Hydraulic Pump Type |
Gear |
| Implement Pump Flow, gpm (Lpm) |
28.5 (108.0) |
| Steering Pump Flow, gpm (Lpm) |
5.9 (22.4) |
| Hydraulic Pressure, Bar (psi) |
166 (2400) |
| Hydraulic Fluid Capacity (Loader), gal (L) |
13.0 (49.2) |
| Hydraulic Fluid Capacity (Backhoe), gal (L) |
21.0 (79.5) |
| Steering Oil Capacity, qts (L) |
2.0 (1.9) |
| Wheelbase, in (mm) |
80 (2030) |
| Length (with Loader), in (mm) |
180 (4570) |
| Length (with Backhoe/Loader), in (mm) |
276 (7010) |
| Height (Cab), in (mm) |
109 (2760) |
| Height (ROPS), in (mm) |
107.5 (2730) |
| Overall Width, in (mm) |
85 (2150) |
| Ground Clearance, in (mm) |
12 (305) |
| Weight w/o Attachments, lb (kg) |
6160 (2800) |
| Weight with Loader, lb (kg) |
12110 (5490) |
| Weight with Backhoe/Loader, lb (kg) |
14970 (6790) |
| Loader Model |
Ford |
| Maximum Lift Height (to Pin), in (mm) |
129 (3270) |
| Clearance, Dumped Bucket, in (mm) |
105 (2660) |
| Reach At Max. Lift Height, in (mm) |
27 (680) |
| Dump Angle, deg |
55 |
| Rollback Angle, deg |
40 |
| Breakout Force (at Pin), lb (kg) |
11850 (5375) |
| Lift Capacity To Max. Height (at Pin), lb (kg) |
5200 (2360) |
| Bucket Width, in (mm) |
84 (2130) |
| Bucket Capacity, cu.yd (m3) |
1.0 (0.80) |
| Raising Time to Full Height, sec |
4.8 |
| Bucket Dumping Time, sec |
1.7 |
| Lowering Time, sec |
2.8 |
| Backhoe Model |
Ford 765 |
| Digging Depth (14-ft), in (mm) |
173 (4390) |
| Digging Depth (15-ft), in (mm) |
185 (4690) |
| 2-ft Flat Digging Depth (14-ft), in (mm) |
171 (4340) |
| 2-ft Flat Digging Depth (15-ft), in (mm) |
183 (4640) |
| 8-ft Flat Digging Depth (14-ft), in (mm) |
155 (3930) |
| 8-ft Flat Digging Depth (15-ft), in (mm) |
169 (4290) |
| Reach from Swing Pivot (14-ft), in (mm) |
220 (5580) |
| Reach from Swing Pivot (15-ft), in (mm) |
231 (5860) |
| Loading Height (14-ft), in (mm) |
131 (3320) |
| Loading Height (15-ft), in (mm) |
137 (3470) |
| Bucket Digging Force (14-ft), lb (kg) |
9735 (4415) |
| Bucket Digging Force (15-ft), lb (kg) |
9800 (4455) |
| Dipperstick Digging Force (14-ft), lb (kg) |
6750 (3060) |
| Dipperstick Digging Force (15-ft), lb (kg) |
6920 (3140) |
| Bucket Width, in (mm) |
12 (305) |
| Bucket Width, in (mm) |
18 (455) |
| Bucket Width, in (mm) |
24 (605) |
| Bucket Width, in (mm) |
30 (760) |
| Bucket Width, in (mm) |
36 (910) |
