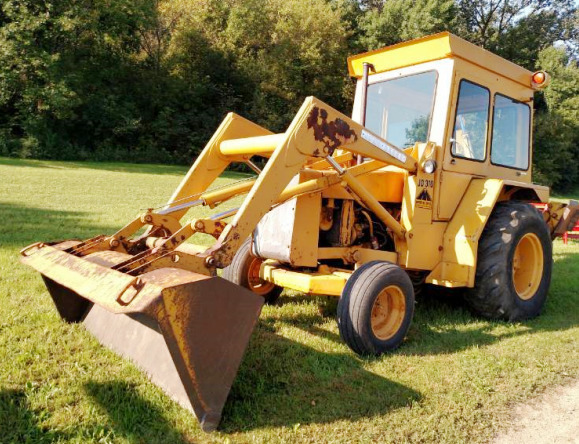

John Deere 310 Backhoe Loader
The
John Deere 310 backhoe loader was manufactured between 1971 and 1975. The John
Deere 310 is equipped with a JD 3.164D 3-cylinder liquid-cooled diesel engine
with a rated power of 52 hp (38.7 kw), or 164 cu.in (2.7 L) 3-cylinder
liquid-cooled gasoline engine with a rated power of 51 hp (37.8 kw).
The Collar Shift transmission consists of a dry clutch and gearbox with
8 forward and 4 reverse gears. The maximum forward speed - 19.6 mph
(31.5 kph), a maximum reverse speed - 8.8 mph (14.2 kph). The closed
center hydraulic system includes a piston pump with flow of 23 gpm (87.4
lpm). The hydraulic pressure is 162 bar (2350 psi). The John Deere 310
backhoe loader is fitted with 7.50x16 or 11Lx15 front tires and 16.9x24
or 19.5Lx24 rear tires. The wheelbase is 77" (1950 mm).
The loader’s maximum lift height is 122" (3090 mm) at pin and clearance
with bucket dumped is 99" (2510 mm). The lift capacity is 4000 lbs (1815
kg) to maximum lift height at pin, and boom breakout force is 7100 lbs
(3220 kg). The raising time is 3.7 seconds from ground line to max
height, and bucket dump time is 1.3 sec. The loader is equipped with a
90" general purpose bucket.
The backhoe can dig to maximum depth of 181"
(4590 mm), and 2-ft flat depth of 169" (4290 mm). The bucket digging
force is 10500 lbs (4760 kg). The reach from swing pivot at ground line
is 205" (5200 mm). The backhoe can be equipped with 16", 20", 24" and
30" buckets.
| Engine Model |
John Deere 3.164D |
| Engine Type |
4-Stroke, three-cylinder liquid-cooled diesel |
| Number of Cylinders |
3 |
| Displacement, cu in (L) |
164 (2.70) |
| Engine Bore, in (mm) |
4.02 (102.0) |
| Engine Stroke, in (mm) |
4.33 (110.0) |
| Aspiration |
Naturally aspirated |
| Rated Engine Power, hp (kW) |
52.0 (38.7) |
| Rated Engine Speed, rpm |
2500 |
| Maximum Torque, Nm (ft-lb) |
175 (129) |
| Torque Speed, rpm |
1300 |
| Compression Ratio |
16.2:1 |
| Firing Order |
1-2-3 |
| Fuel System |
Injection pump |
| Intake Valve Clearance, in (mm) |
0.014 (0.36) |
| Exhaust Valve Clearance, in (mm) |
0.018 (0.46) |
| Fuel Tank Capacity, gal (L) |
19.5 (73.8) |
| Oil Capacity, qts (L) |
12.0 (11.4) |
| Coolant Capacity, qts (L) |
9.0 (8.5) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Engine Model |
John Deere |
| Engine Type |
4-Stroke, 3-cylinder liquid-cooled gasoline |
| Number of Cylinders |
3 |
| Displacement, cu in (L) |
164 (2.70) |
| Engine Bore, in (mm) |
4.02 (102.0) |
| Engine Stroke, in (mm) |
4.33 (110.0) |
| Rated Engine Power, hp (kW) |
51.0 (37.8) |
| Rated Engine Speed, rpm |
2500 |
| Compression Ratio |
7.5:1 |
| Firing Order |
1-2-3 |
| Fuel System |
Carburetor |
| Air Cleaner |
Dry type |
| Intake Valve Clearance, in (mm) |
0.014 (0.36) |
| Exhaust Valve Clearance, in (mm) |
0.022 (0.56) |
| Fuel Tank Capacity, gal (L) |
22.0 (83.3) |
| Oil Capacity, qts (L) |
12.0 (11.4) |
| Coolant Capacity, qts (L) |
9.0 (8.5) |
| Electrical System Rating, Volts |
12 |
| Transmission Type |
Collar Shift |
| Gearbox Type |
8F/4R, gear |
| Number of Forward Gears |
8 |
| Number of Reverse Gears |
4 |
| Clutch Type |
Dry disc |
| Oil Capacity, qts (L) |
82.0 (77.6) |
| Maximum Forward Speed, mph (kph) |
19.6 (31.5) |
| Maximum Reverse Speed, mph (kph) |
8.8 (14.2) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Hydrostatic power |
| Brakes Type |
Wet disc |
| Front Tire Size (Std) |
7.50-16 |
| Rear Tire Size (Std) |
16.9-24 |
| Front Tire Size (Opt) |
11L-15 |
| Rear Tire Size (Opt) |
19.5L-24 |
| Front Tread, in (mm) |
62 (1570) |
| Rear Tread, in (mm) |
65 (1650) |
| Hydraulic System Type |
Closed center |
| Implement Pump Displacement, cu in (L) |
3.0 (0.049) |
| Implement Pump Flow, gpm (Lpm) |
23.0 (87.4) |
| Hydraulic Pressure, Bar (psi) |
162 (2350) |
| Loader Circuit Relief Valve (Auxiliary), Bar (psi) |
172 (2500) |
| Loader Circuit Relief Valve (Bucket Dump), Bar (psi) |
104 (1500) |
| Loader Circuit Relief Valve (Bucket Rollback), Bar (psi) |
190 (2750) |
| Backhoe Circuit Relief Valve (Boom Lower), Bar (psi) |
164 (2375) |
| Backhoe Circuit Relief Valve (Boom Raise), Bar (psi) |
240 (3500) |
| Backhoe Circuit Relief Valve (Crowd), Bar (psi) |
164 (2375) |
| Hydraulic Fluid Capacity, gal (L) |
20.5 (77.6) |
| Wheelbase, in (mm) |
77 (1950) |
| Length, in (mm) |
144 (3650) |
| Height, in (mm) |
104 (2640) |
| Overall Width, in (mm) |
82.9 (2100) |
| Weight, lb (kg) |
12750 (5785) |
| Maximum Lift Height (to pin), in (mm) |
122 (3090) |
| Clearance, Dumped Bucket, in (mm) |
99 (2510) |
| Dump Reach, in (mm) |
31.3 (790) |
| Dump Angle, deg |
50 |
| Rollback Angle, deg |
40 |
| Breakout Force (at pin), lb (kg) |
7100 (3220) |
| Lift to Full Height (at pin), lb (kg) |
4000 (1815) |
| Bucket Width, in (mm) |
90 (2275) |
| Raising Time to Full Height, second |
3.7 |
| Bucket Dumping Time, second |
1.3 |
| Lowering Time, second |
3.0 |
| Bucket Rollback Time (Flat on Ground), second |
0.8 |
| Digging Depth, in (mm) |
181 (4590) |
| Digging Depth (2-ft Flat), in (mm) |
169 (4290) |
| Reach from Swing Pivot, in (mm) |
205 (5200) |
| Loading Height, in (mm) |
124 (3140) |
| Swing Arc, deg |
180 |
| Maximum Transport Height, in (mm) |
135 (3420) |
| Bucket Digging Force, lb (kg) |
10500 (4760) |
| Boom Lower (Full Height to Maximum Depth), second |
4.1 |
| Boom Lower (Full Height to Ground), second |
1.9 |
| Boom Raise (Ground to Full Height), second |
2.1 |
| Boom Raise (Max Depth to Full Height), second |
4.5 |
| Bucket Dump, second |
1.9 |
| Dipperstick (In), second |
3.6 |
| Dipperstick (Out), second |
3.3 |
| Swing (180 deg), second |
4.0 |
