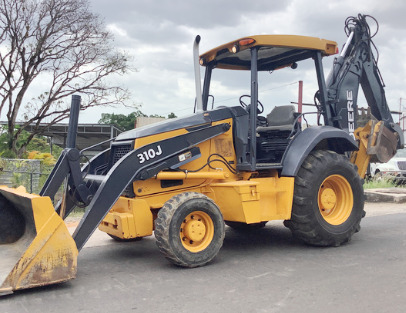

John Deere 310J Backhoe Loader
The
John Deere 310J backhoe loader was manufactured from 2007 to 2011. The John
Deere 310J driveline system components: JD 4045T 4-stroke 4-cylinder
turbocharged diesel engine and full powershift transmission with 4 forward and 2
reverse gears.
A 276 cubic inches (4.5L) engine has a cylinder bore of 4.19" (106 mm),
piston stroke of 5.00" (127 mm), and rated power of 84 hp (62.6 kW). The
maximum travel speed (forward/reverse): 22.3 mph (35.9 km/h) and 8.2 mph
(13.2 km/h). The open center hydraulic system used a single gear pump
with a flow of 28 gpm (106 lpm).
The hydraulic pressure is 220 bar (3200 psi) for loader and 250 bar
(3625 psi) for backhoe. The 2WD models are equipped with 11Lx16 front
tires and 19.5Lx24 rear tires. A 12x16.5 front tires and 19.5Lx24 rear
tires are used for 4WD models. The wheelbase is 83" (2100 mm) for models
with 2WD, or 84" (2130 mm) for models with 4WD.
The loader’s maximum lift height is 133.6" (3380 mm) at pin, and
clearance with bucket dumped is 106" (2690 mm). The lifting capacity is
7419 lbs (3365 kg) to max height at pin, and breakout force is 11160 lbs
(5060 kg). The estimated cycle times are 5 seconds raising to full
height, and 1.3 seconds to full bucket dump. The loader is compatible
with a 86" (2175 mm) heavy-duty material bucket with a rated capacity of
26.9 cu.ft (0.77 cu.m).
The backhoe work ranges consist of a bucket digging force of 11105
(5035) and dipper arm digging force of 7005 (3177). The max digging
depth is 215" (5460 mm), and overall reach from swing pivot is 257"
(6520 mm) at ground line. The backhoe is equipped with 12" (305 mm), 18"
(455 mm), 24" (605 mm), and 30" (760 mm) buckets.
| Engine Model |
John Deere 4045T |
| Engine Type |
4-Stroke, four-cylinder turbocharged diesel |
| Number of Cylinders |
4 |
| Displacement, cu in (L) |
276 (4.50) |
| Engine Bore, in (mm) |
4.19 (106.0) |
| Engine Stroke, in (mm) |
5.00 (127.0) |
| Aspiration |
Turbocharged |
| Rated Engine Power, hp (kW) |
84.0 (62.6) |
| Rated Engine Speed, rpm |
2000 |
| Maximum Torque, Nm (ft-lb) |
336 (270) |
| Torque Speed, rpm |
1300 |
| Compression Ratio |
17:1 |
| Firing Order |
1-3-4-2 |
| Fuel System |
Injection pump |
| Intake Valve Clearance, in (mm) |
0.014 (0.36) |
| Exhaust Valve Clearance, in (mm) |
0.018 (0.46) |
| Fuel Tank Capacity, gal (L) |
41.0 (155.0) |
| Oil Capacity, qts (L) |
14.0 (13.2) |
| Coolant Capacity, qts (L) |
26.0 (24.6) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Alternator Rating, Amps |
90 |
| Transmission Type |
Power Shift |
| Gearbox Type |
4F/2R, full powershift |
| Number of Forward Gears |
4 |
| Number of Reverse Gears |
2 |
| Clutch Type |
Wet disc |
| Torque Converter Type |
Single stage |
| Torque Converter Ratio |
2.63:1 |
| Oil Capacity, qts (L) |
16.0 (15.0) |
| Maximum Forward Speed, mph (kph) |
22.3 (35.9) |
| Maximum Reverse Speed, mph (kph) |
8.2 (13.2) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front steer |
| Steering System |
Hydrostatic power |
| Steering Cylinder Size (2WD), in (mm) |
2.76x8.39 (70x215) |
| Steering Cylinder Size (4WD), in (mm) |
2.64x8.27 (67x210) |
| Brakes Type |
Hydraulic wet disc |
| Front Tire Size (2WD) |
11L-16 |
| Rear Tire Size (2WD) |
19.5L-24 |
| Front Tire Size (4WD) |
12-16.5 |
| Rear Tire Size (4WD) |
19.5L-24 |
| Hydraulic System Type |
Open center |
| Hydraulic Pump Type |
Single gear |
| Implement Pump Flow, gpm (Lpm) |
28.0 (106.0) |
| Hydraulic Pressure (Loader), Bar (psi) |
220 (3200) |
| Hydraulic Pressure (Backhoe), Bar (psi) |
250 (3625) |
| Hydraulic Fluid Capacity, gal (L) |
24.0 (91.0) |
| Wheelbase (2WD), in (mm) |
83 (2100) |
| Wheelbase (4WD), in (mm) |
84 (2130) |
| Length (w/Attachments), in (mm) |
282(7160) |
| Height (Cab), in (mm) |
110 (2780) |
| Overall Width, in (mm) |
86 (2180) |
| Ground Clearance, in (mm) |
13 (330) |
| Weight with Attachments (2WD, Cab), lb (kg) |
14660 (6670) |
| Weight with Attachments (4WD, Cab), lb (kg) |
15030 (6830) |
| Maximum Lift Height (to pin), in (mm) |
133.6 (3380) |
| Clearance, Dumped Bucket, in (mm) |
106 (2690) |
| Dump Reach, in (mm) |
30.9 (780) |
| Dump Angle, deg |
45 |
| Rollback Angle, deg |
40 |
| Breakout Force (at pin), lb (kg) |
11160 (5060) |
| Lift to Full Height (at pin), lb (kg) |
7419 (3365) |
| Bucket Width, in (mm) |
86 (2175) |
| Lift Cylinder Size, in (mm) |
3.15x31.1 (80x790) |
| Bucket Cylinder Size, in (mm) |
3.54x29.3 (90x745) |
| Raising Time to Full Height, second |
5.0 |
| Bucket Dumping Time, second |
1.3 |
| Lowering Time, second |
2.5 |
| Digging Depth (Standard), in (mm) |
171 (4340) |
| Digging Depth (Extendable Dipperstick, Retracted), in (mm) |
173 (4390) |
| Digging Depth (Extendable Dipperstick, Extended), in (mm) |
215 (5460) |
| 2-ft Flat Digging Depth (Standard), in (mm) |
170 (4310) |
| 2-ft Digging Depth (Extendable Dipperstick, Retracted), in (mm) |
172 (4360) |
| 2-ft Digging Depth (Extendable Dipperstick, Extended), in (mm) |
215 (5460) |
| 8-ft Flat Digging Depth (Standard), in (mm) |
156 (3960) |
| 8-ft Digging Depth (Extendable Dipperstick, Retracted), in (mm) |
160 (4060) |
| 8-ft Digging Depth (Extendable Dipperstick, Extended), in (mm) |
215 (5460) |
| Reach from Swing Pivot (Standard), in (mm) |
214 (5430) |
| Reach from Swing Pivot (Extendable Dipperstick, Retracted), in (mm) |
217 (5510) |
| Reach from Swing Pivot (Extendable Dipperstick, Extended), in (mm) |
257 (6520) |
| Loading Height (Standard), in (mm) |
131 (3320) |
| Loading Height (Extendable Dipperstick, Retracted), in (mm) |
133 (3370) |
| Loading Height (Extendable Dipperstick, Extended), in (mm) |
167 (4240) |
| Swing Arc, degrees |
180 |
| Maximum Transport Height, in (mm) |
135.6 (3430) |
| Bucket Force, lb (kg) |
11105 (5035) |
| Dipperstick Force, lb (kg) |
7005 (3177) |
| Bucket Width, in (mm) |
12 (305) |
| Bucket Width, in (mm) |
18 (455) |
| Bucket Width, in (mm) |
24 (605) |
| Bucket Width, in (mm) |
30 (760) |
