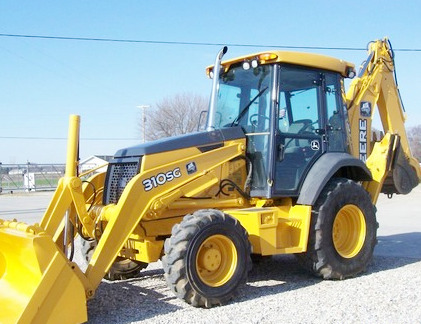

John Deere 310SG Backhoe Loader
The
John Deere 310SG backhoe loader was manufactured from 2001 to 2007. The John
Deere 310SG driveline consists of a 276 cu.in (4.5L) John Deere 4045T 4-stroke
4-cylinder turbocharged diesel engine with a rated power of 86 hp (64 kW), and
4x4 collar-shift transmission or 4x3 powershift transmission.
The max travel speed (forward/reverse): 20.5 mph (33 km/h). The open
center hydraulic system used a tandem gear type pump with a flow of 28
gal/min (106 l/min) using loader or 36 gal/min (136 l/min) using
backhoe. The main relief pressure is 250 bar (3625 psi).
The John Deere 310SG is equipped with a hydrostatic power steering,
hydraulic wet disc brakes, 11Lx15 (2WD) or 12.5/80-18 (4WD) front tires,
and 16.9x24 (2WD) or 19.5Lx24 (4WD) rear tires. The wheelbase is 82.7"
(2100 mm).
The loader has a max lift height of 133.9" (3400 mm) at pin and
clearance with bucket dumped of 102" (2590 mm). The lifting capacity is
7340 lbs (3332 kg) at max height (pivot pin), and breakout force (bucket
on ground) is 10210 lbs (4640 kg). The loader is compatible with a 86"
(2180 mm) heavy-duty material bucket with a rated capacity of 33.6 cu.ft
(0.96 cu.m).
The backhoe with extendable dipperstick can dig to a maximum depth of 18
ft 5 in (5610 mm). The bucket digging force is 12158 lbs (5526 kg), and
dipper stick digging force is 5628 lbs (2558 kg). The reach from swing
pivot at ground level is 21 ft 11 in (6680 mm). The backhoe is
compatible with 12" (305 mm), 18" (455 mm), 24" (605 mm), and 30" (760
mm) buckets.
| Engine Model |
John Deere 4045T |
| Engine Type |
4-Stroke, 4-cylinder turbocharged diesel |
| Number of Cylinders |
4, in-line |
| Displacement, cu in (L) |
276.0 (4.50) |
| Engine Bore, in (mm) |
4.19 (106.0) |
| Engine Stroke, in (mm) |
5.00 (127.0) |
| Aspiration |
Turbocharged |
| Rated Engine Power, hp (kW) |
86.0 (64.0) |
| Rated Engine Speed, rpm |
2300 |
| Operating Speed Range, rpm |
1300-2350 |
| Maximum Torque, Nm (lb-ft) |
376 (277) |
| Torque Speed, rpm |
1400 |
| Firing Order |
1-3-4-2 |
| Fuel System |
Injection pump |
| Governor Type |
Mechanical |
| Air Cleaner |
Dry Element |
| Emissions Level |
Stage 2 |
| Valve Clearance (Intake), in (mm) |
0.014 (0.356) |
| Valve Clearance (Exhaust), in (mm) |
0.018 (0.457) |
| Fuel Tank Capacity, gal (L) |
36.0 (136.5) |
| Oil Capacity, qts (L) |
13.7 (13.0) |
| Coolant Capacity, qts (L) |
17.0 (16.0) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Alternator Rating, Amps |
70/90 |
| Transmission Type |
Collar-Shift |
| Gearbox Type |
4F/4R, synchronized with hydraulic reverser |
| Number of Forward Gears |
4 |
| Number of Reverse Gears |
4 |
| Torque Converter Type |
Single stage |
| Torque Converter Ratio |
2.63:1 |
| Oil Capacity, qts (L) |
15.0 (14.0) |
| Maximum Forward Speed, mph (kph) |
20.5 (33.0) |
| Maximum Reverse Speed, mph (kph) |
20.5 (33.0) |
| Transmission Type |
Power-Shift |
| Gearbox Type |
4F/3R, full power shifted |
| Number of Forward Gears |
4 |
| Number of Reverse Gears |
3 |
| Torque Converter Type |
Single stage |
| Torque Converter Ratio |
2.63:1 |
| Oil Capacity, qts (L) |
15.0 (14.0) |
| Maximum Forward Speed, mph (kph) |
20.5 (33.0) |
| Maximum Reverse Speed, mph (kph) |
16.1 (25.9) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front steer |
| Steering System |
Hydrostatic power |
| Steering Cylinder Rod/Stroke (2WD), in (mm) |
1.0x9.5 (25x240) |
| Steering Cylinder Rod/Stroke (4WD), in (mm) |
1.4x8.3 (36x210) |
| Brakes Type |
Hydraulic wet disc |
| Front Tire Size (2WD) |
11Lx15 |
| Rear Tire Size (2WD) |
16.9x24 |
| Front Tire Size (2WD) |
11Lx16 |
| Rear Tire Size (2WD) |
19.5Lx24 |
| Front Tire Size (4WD) |
12.5/80-18 |
| Rear Tire Size (4WD) |
19.5L-24 |
| Hydraulic System Type |
Open center |
| Implement Pump Type |
Gear type, tandem with unloader |
| Implement Pump Flow (Loader), gpm (Lpm) |
28.0 (106.0) |
| Implement Pump Flow (Backhoe), gpm (Lpm) |
36.0 (136.0) |
| Steering Pump Flow, gpm (Lpm) |
4.5 (17.0) |
| Hydraulic Pressure, Bar (psi) |
250 (3625) |
| Hydraulic Fluid Capacity, gal (L) |
24.0 (91.0) |
| Wheelbase, in (mm) |
82.7 (2100) |
| Length, in (mm) |
282 (7160) |
| Height (ROPS), in (mm) |
110 (2790) |
| Overall Width, in (mm) |
86 (2180) |
| Ground Clearance, in (mm) |
13 (330) |
| Turning Radius (2WD), in (mm) |
127.2 (3230) |
| Turning Radius (4WD), in (mm) |
131.5 (3340) |
| Weight (2WD, ROPS), lb (kg) |
13500 (6125) |
| Weight (4WD, ROPS), lb (kg) |
14100 (6410) |
| Weight (2WD, Cab), lb (kg) |
14190 (6450) |
| Weight (4WD, Cab), lb (kg) |
14700 (6680) |
| Weight (Maximum), lb (kg) |
15955 (7225) |
| Bucket Width, in (mm) |
86 (2180) |
| Bucket Capacity, cu.yd (m3) |
1.25 (0.96) |
| Maximum Lift Height to Pivot Pin, in (mm) |
133.9 (3400) |
| Clearance with Bucket Dumped, in (mm) |
102 (2590) |
| Reach at Maximum Lift Height, in (mm) |
36 (911) |
| Maximum Dump Angle, deg |
45 |
| Digging Depth, in (mm) |
5.8 (147) |
| Maximum Rollback Angle, deg |
40 |
| Lift Capacity to Maximum Height at Pivot Pin, lb (kg) |
7340 (3332) |
| Breakout Force at Pivot Pin, lb (kg) |
10210 (4640) |
| Boom Cylinder Size (Rod/Stroke), in (mm) |
1.97x31.1 (50x790) |
| Bucket Cylinder Size (Rod/Stroke), in (mm) |
1.97x29.3 (50x744) |
| Loader (Standard Materials Bucket) |
| Bucket Width, in (mm) |
92 (2340) |
| Bucket Capacity, cu.yd (m3) |
1.32 (1.01) |
| Maximum Lift Height to Pivot Pin, in (mm) |
133.1 (3380) |
| Clearance with Bucket Dumped, in (mm) |
103.2 (2620) |
| Reach at Maximum Lift Height, in (mm) |
32.2 (818) |
| Maximum Dump Angle, deg |
45 |
| Digging Depth, in (mm) |
7.3 (185) |
| Maximum Rollback Angle, deg |
40 |
| Lift Capacity to Maximum Height at Pivot Pin, lb (kg) |
6600 (2993) |
| Breakout Force at Pivot Pin, lb (kg) |
9650 (4386) |
| Boom Cylinder Size (Rod/Stroke), in (mm) |
1.97x31.1 (50x790) |
| Bucket Cylinder Size (Rod/Stroke), in (mm) |
1.97x29.3 (50x744) |
| Backhoe (Standard Dipperstick) |
| Maximum Digging Depth |
14 ft 6 in (4420 mm) |
| 2-ft Flat Digging Depth |
14 ft 4 in (4370 mm) |
| 8-ft Flat Digging Depth |
13 ft 4 in (4060 mm) |
| Reach from Swing Pivot |
18 ft 3 in (5560 mm) |
| Loading Height |
11 ft 3 in (3430 mm) |
| Swing Arc |
180 deg |
| Bucket Rotation |
190 deg |
| Stabilizer Spread (Operating) |
10 ft 2 in (3100 mm) |
| Bucket Cylinder Digging Force |
11990 lb (5450 kg) |
| Crowd Cylinder Digging Force |
8090 lb (3677 kg) |
| Boom Cylinder Size (Rod/Stroke) |
2.2x31.3 in (56x795 mm) |
| Crowd Cylinder Size (Rod/Stroke) |
2.5x23.9 in (63x607 mm) |
| Bucket Cylinder Size (Rod/Stroke) |
2.2x31.9 in (56x810 mm) |
| Swing Cylinder Size (Rod/Stroke) |
1.97x10.9 in (50x278 mm) |
| Stabilizer Cylinder Size (Rod/Stroke) |
1.97x19.7 in (50x500 mm) |
| Backhoe (Extendable Dipperstick) |
| Maximum Digging Depth (Retracted) |
14 ft 11 in (4550 mm) |
| Maximum Digging Depth (Extended) |
18 ft 5 in (5610 mm) |
| 2-ft Flat Digging Depth (Retracted) |
14 ft 9 in (4500 mm) |
| 2-ft Flat Digging Depth (Extended) |
18 ft 3 in (5560 mm) |
| 8-ft Flat Digging Depth (Retracted) |
13 ft 9 in (4190 mm) |
| 8-ft Flat Digging Depth (Extended) |
17 ft 6 in (5330 mm) |
| Reach from Swing Pivot (Retracted) |
18 ft 7 in (5660 mm) |
| Reach from Swing Pivot (Extended) |
21 ft 11 in (6680 mm) |
| Loading Height (Retracted) |
11 ft 7 in (3530 mm) |
| Loading Height (Extended) |
14 ft 1 in (4290 mm) |
| Swing Arc, deg |
180 |
| Bucket Rotation, deg |
190 |
| Bucket Digging Force (Retracted) |
12158 lb (5526 kg) |
| Bucket Digging Force (Extended) |
12158 lb (5526 kg) |
| Dipper Digging Force (Retracted) |
7796 lb (3544 kg) |
| Dipper Digging Force (Extended) |
5628 lb (2558 kg) |
| Boom Cylinder Size (Rod/Stroke) |
2.2x31.3 in (56x795 mm) |
| Crowd Cylinder Size (Rod/Stroke) |
2.5x23.9 in (63x607 mm) |
| Bucket Cylinder Size (Rod/Stroke) |
2.2x31.9 in (56x810 mm) |
| Swing Cylinder Size (Rod/Stroke) |
1.97x10.9 in (50x278 mm) |
| Stabilizer Cylinder Size (Rod/Stroke) |
1.97x19.7 in (50x500 mm) |
| Extendable Dipperstick Size (Rod/Stroke) |
1.77x42 in (45x1067 mm) |
