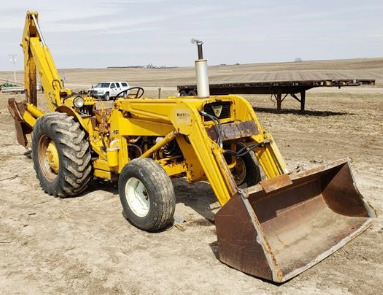

Massey Ferguson 40 Backhoe Loader
The
Massey Ferguson 40 is a 2WD (4x2) backhoe loader. The MF 40 is equipped with a
Perkins D3.152 four-stroke 3-cylinder liquid-cooled diesel engine with a rated
power of 42 hp (31.3 kw) at 2000 rpm, or Perkins G3.152 three-cylinder gasoline
engine with a rated power of 41 hp (30.5 kw) at 2000 rpm. The Massey Ferguson 40
is fitted with 2 transmission options: 6x6 manual shuttle transmission, or 4x4
transmission with torque converter.
Max. travel speed (forward/reverse): 21.4 mph (35.3 km/h) and 19.3 mph
(31.8 km/h). The open center hydraulic system used a piston pump with a
rated capacity of 20 gallons per minute (76 l/min). The hydraulic
pressure is 2125 psi (147 bar).
The Massey Ferguson 40 was fitted with 7.50-16 or 11L-15 front tires and
14.9-24 or 16.9x24 rear tires. The front end loader’s maximum lift
height is 121 inches (3070 mm) at pin, and clearance with bucket dumped
is 99 inches (2515 mm). The lift capacity is 3000 lb (1360 kg) at
maximum height (bucket pin), and boom breakout force is 5000 lb (2267
kg). The raising time is 3.6 sec. from ground level to max height, and
bucket dump time is 1.2 seconds. The loader is compatible with a 68"
bucket.
The backhoe has a bucket digging force of 8500 lb (3855 kg), and max
digging depth of 150 inches (3810 mm). The reach from swing pivot is 177
inches (4490 mm) at ground level. The backhoe is equipped with 16", 18",
24", and 36" buckets.
Engine Model |
Perkins D3.152 |
Engine Type |
4-Stroke, 3-cylinder liquid-cooled diesel |
Number of Cylinders |
3 |
Displacement, cu in (L) |
152.7 (2.50) |
Engine Bore, in (mm) |
3.60 (91.0) |
Engine Stroke, in (mm) |
5.00 (127.0) |
Aspiration |
Natural |
Rated Engine Power, hp (kW) |
42.0 (31.3) |
Rated Engine Speed, rpm |
2000 |
Maximum Torque, Nm (ft-lb) |
162 (120) |
Torque Speed, rpm |
1200 |
Idle Speed, rpm |
800-2400 |
Compression Ratio |
17.4:1 |
Firing Order |
1-2-3 |
Fuel System |
Injection pump |
Governor |
Mechanical |
Air Cleaner |
Dual dry element |
Valve Clearance, in (mm) |
0.012 (0.30) |
Fuel Tank Capacity, gal (L) |
18.5 (70.0) |
Oil Capacity, qts (L) |
6.0 (5.7) |
Coolant Capacity, qts (L) |
10.0 (9.5) |
Electrical System Rating, Volts |
12 |
Charging System |
Alternator |
Engine Model |
Perkins G3.152 |
Engine Type |
4-Stroke, 3-cylinder liquid-cooled gasoline |
Number of Cylinders |
3 |
Displacement, cu in (L) |
152.7 (2.50) |
Engine Bore, in (mm) |
3.60 (91.0) |
Engine Stroke, in (mm) |
5.00 (127.0) |
Rated Engine Power, hp (kW) |
41.0 (30.5) |
Rated Engine Speed, rpm |
2000 |
Maximum Torque, Nm (ft-lb) |
162 (120) |
Torque Speed, rpm |
1200 |
Compression Ratio |
7.5:1 |
Fuel System |
Carburetor |
Fuel Tank Capacity, gal (L) |
18.5 (70.0) |
Oil Capacity, qts (L) |
6.0 (5.7) |
Coolant Capacity, qts (L) |
10.0 (9.5) |
Electrical System Rating, Volts |
12 |
PTO Operational Type |
Live |
PTO Horsepower, hp (kW) |
38.0 (28.5) |
PTO Speed, rpm |
540 |
PTO / Engine Speed, rpm |
540/1500 |
Transmission Type |
Manual Shuttle |
Gearbox Type |
6F/6R |
Number of Forward Gears |
6 |
Number of Reverse Gears |
6 |
Clutch Type |
Dry disc |
Maximum Forward Speed, mph (kph) |
21.4 (35.3) |
Maximum Reverse Speed, mph (kph) |
19.3 (31.8) |
Transmission Type |
Torque Converter |
Gearbox Type |
4F/4R |
Number of Forward Gears |
4 |
Number of Reverse Gears |
4 |
Torque Converter Type |
Single stage |
Maximum Forward Speed, mph (kph) |
16.8 (27.7) |
Maximum Reverse Speed, mph (kph) |
14.5 (23.9) |
Drive Wheels |
2WD 4x2 |
Steering Configuration |
Front steer |
Steering System |
Hydrostatic power |
Brakes Type |
Dual disc |
Front Tire Size (Std) |
7.50-16 |
Rear Tire Size (Std) |
14.9-24 |
Front Tire Size (Opt) |
11L-15 |
Rear Tire Size (Opt) |
16.9x24 |
Hydraulic System Type |
Open Center |
Hydraulic Pump Type |
Gear |
Implement Pump Flow (Loader), gpm (Lpm) |
20.0 (76.0) |
Hydraulic Pressure, Bar (psi) |
147 (2125) |
Hydraulic Capacity (Tractor), gal (L) |
8.0 (30.3) |
Hydraulic Capacity (Loader), gal (L) |
6.0 (22.5) |
Steering Capacity, qts (L) |
1.6 (1.5) |
Wheelbase, in (mm) |
84 (2130) |
Length, in (mm) |
263 (6680) |
Height (Steering Wheel), in (mm) |
55.5 (1400) |
Overall Width, in (mm) |
77.5 (1960) |
Ground Clearance, in (mm) |
15 (380) |
Weight (Tractor, Gas), lb (kg) |
3640 (1650) |
Weight (Tractor, Diesel), lb (kg) |
3650 (1655) |
Weight with Loader/Backhoe, lb (kg) |
7745 (3520) |
Loader Model |
MF 34 |
Maximum Lift Height (to Pin), in (mm) |
121 (3070) |
Clearance, Dumped Bucket, in (mm) |
99 (2515) |
Reach At Max. Lift Height, in (mm) |
21 (533) |
Reach At Ground, in (mm) |
69 (1750) |
Dump Angle, deg |
47 |
Rollback Angle, deg |
38 |
Breakout Force (at Pin), lb (kg) |
5000 (2267) |
Lift Capacity To Max. Height (at Pin), lb (kg) |
3000 (1360) |
Bucket Width, in (mm) |
68 (1720) |
Lift Cylinder Size, in (mm) |
2.5x31 (63x787) |
Bucket Cylinder Size, in (mm) |
2.5x15.6 (63x395) |
Raising Time to Full Height, sec |
3.6 |
Bucket Dumping Time, sec |
1.2 |
Lowering Time, sec |
1.3 |
Loader Weight, lb (kg) |
1380 (625) |
Backhoe Model |
MF 52 |
Digging Depth (Maximum), in (mm) |
150 (3810) |
Digging Depth (2-ft Flat), in (mm) |
140 (3550) |
Reach from Swing Pivot, in (mm) |
177 (4490) |
Loading Height, in (mm) |
111 (2810) |
Swing Arc, deg |
180 |
Bucket Rotation, deg |
163 |
Transport Height, in (mm) |
123 (3120) |
Digging Force (Bucket), lb (kg) |
8500 (3855) |
Boom Cylinder Size, in (mm) |
4x32 (101x812) |
Crowd Cylinder Size, in (mm) |
3.5x30 (88x762) |
Bucket Cylinder Size, in (mm) |
3x27.5 (76x698) |
Stabilizer Cylinder Size, in (mm) |
3.5x22 (88x558) |
Bucket Width, in (mm) |
16 (305) |
Bucket Width, in (mm) |
18 (455) |
Bucket Width, in (mm) |
24 (605) |
Bucket Width, in (mm) |
30 (760) |
Backhoe Weight, lb (kg) |
2735 (1240) |
