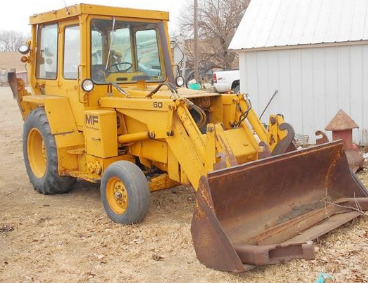

Massey Ferguson 60 Backhoe Loader
The
Massey Ferguson 60 is a 2-wheel drive backhoe loader. The components of MF 60
powerline system: a 236 cubic inches (3.9L) Perkins A4.236 4-cycle 4-cylinder
direct injection liquid-cooled diesel engine, and 4x4 mechanical transmission
with single-stage torque converter. The engine engine has a cylinder bore of
3.88" (98.6 mm), piston stroke of 5.0" (127 mm), and rated power of 68 hp (50.4
kW).
The maximum forward speed - 17.5 mph (28.2 km/h), maximum reverse speed
- 17.5 mph (28.2 km/h). The open center hydraulic system used a gear
pump with a flow of 28 gpm (106 lpm). The hydraulic pressure is 147 bar
(2125 psi). The Massey Ferguson 60 was fitted with 11.0x16 or 9.5x15
front tyres and 19.5x24 or 16.9x28 rear tyres. The wheelbase is 81.8
(2070).
The loader’s max lift height is 132" (3350 mm) at pin and clearance with
bucket dumped is 108" (2740 mm). The lift capacity is 5200 lbs (2358 kg)
at max height (bucket pin), and breakout force (bucket on ground) is
9000 lbs (4080 kg). The 88" (2230 mm) standard material bucket has a
nominal heaped capacity of 1 cu.yd (0.8 cu.m).
The backhoe operational data includes a bucket dig force of 11000 lbs
(4990 kg) and dipper arm digging force of 7412 lbs (3360 kg). The
digging depth at max value is 185.5" (4710 mm), and overall reach from
swing pivot is 226.6" (5750 mm) at ground level. The backhoe can be
equipped with 16" (405 mm), 18" (455 mm), 24" (605 mm), 30" (760 mm),
and 36" (910 mm) buckets.
| Engine Model |
Perkins A4.236 |
| Engine Type |
4-Stroke, four-cylinder liquid-cooled diesel |
| Number of Cylinders |
4 |
| Displacement, cu in (L) |
236 (3.90) |
| Engine Bore, in (mm) |
3.88 (98.6) |
| Engine Stroke, in (mm) |
5.00 (127.0) |
| Aspiration |
Naturally aspirated |
| Rated Engine Power, hp (kW) |
68.0 (50.4) |
| Rated Engine Speed, rpm |
2000 |
| Compression Ratio |
16.0:1 |
| Firing Order |
1-3-4-2 |
| Fuel System |
Injection pump |
| Combustion System |
Direct injection |
| Governor |
Mechanical |
| Air Cleaner |
Dry type |
| Intake Valve Clearance, in (mm) |
0.012 (0.30) |
| Exhaust Valve Clearance, in (mm) |
0.012 (0.30) |
| Fuel Tank Capacity, gal (L) |
21.4 (81.0) |
| Oil Capacity, qts (L) |
9.9 (9.4) |
| Coolant Capacity, qts (L) |
16.7 (15.8) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Transmission Type |
Torque Converter |
| Gearbox Type |
4F/4R |
| Number of Forward Gears |
4 |
| Number of Reverse Gears |
4 |
| Torque Converter Type |
Single stage |
| Oil Capacity, qts (L) |
51.8 (49.0) |
| Maximum Forward Speed, mph (kph) |
17.5 (28.2) |
| Maximum Reverse Speed, mph (kph) |
17.5 (28.2) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Power Steering |
| Brakes Type |
Wet disc |
| Front Tire Size (Std) |
11.0x16 |
| Rear Tire Size (Std) |
19.5x24 |
| Front Tire Size (Opt) |
9.5x15 |
| Rear Tire Size (Opt) |
16.9x28 |
| Wheelbase, in (mm) |
81.8 (2070) |
| Length, in (mm) |
289 (7340) |
| Height (Steering Wheel), in (mm) |
77 (1950) |
| Height (ROPS), in (mm) |
106.8 (2710) |
| Height (Cab), in (mm) |
106 (2690) |
| Overall Width, in (mm) |
86 (2180) |
| Ground Clearance, in (mm) |
15 (380) |
| Total Weight, lb (kg) |
14000 (6350) |
| Maximum Lift Height (to Pin), in (mm) |
132 (3350) |
| Clearance, Dumped Bucket, in (mm) |
108 (2740) |
| Reach At Max. Lift Height, in (mm) |
30 (760) |
| Dump Angle, deg |
50 |
| Rollback Angle, deg |
40 |
| Breakout Force (at Pin), lb (kg) |
9000 (4080) |
| Lift Capacity To Max. Height (at Pin), lb (kg) |
5200 (2358) |
| Bucket Width, in (mm) |
88 (2230) |
| Bucket Capacity, cu.yd (m3) |
1.0 (0.80) |
| Maximum Digging Depth, in (mm) |
185.5 (4710) |
| 2-ft Flat Digging Depth, in (mm) |
184.5 (4680) |
| 8-ft Flat Digging Depth, in (mm) |
167 (4240) |
| Reach from Swing Pivot, in (mm) |
226.6 (5750) |
| Loading Height, in (mm) |
149.6 (3790) |
| Swing Arc, deg |
180 |
| Bucket Rotation, deg |
200 |
| Bucket Digging Force, lb (kg) |
11000 (4990) |
| Dipperstick Digging Force, lb (kg) |
7412 (3360) |
| Bucket Width, in (mm) |
16 (305) |
| Bucket Width, in (mm) |
18 (455) |
| Bucket Width, in (mm) |
24 (605) |
| Bucket Width, in (mm) |
30 (760) |
| Bucket Width, in (mm) |
36 (910) |
