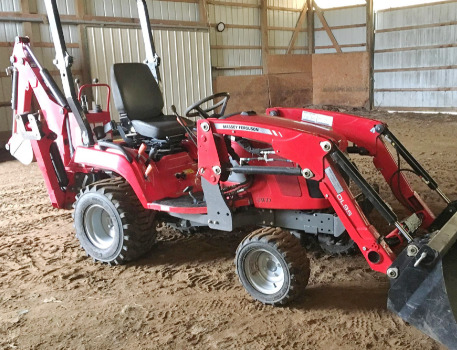

Massey Ferguson GC1710 TLB

The Massey Ferguson GC1710 backhoe loader was manufactured by Iseki built from 2013 to 2018. The Massey Ferguson GC1710 TLB powerline includes a Iseki E3112 4-cycle 3-cylinder overhead valve indirect injection liquid-cooled diesel engine and 2-range hydrostatic transmission with infinite forward and reverse gears.

A 68.5 cu.in (1.1L) engine has a cylinder bore of 3.08" (78.2 mm), piston stroke of 3.07" (78 mm), and maximum power of 22.5 hp (16.8 kW). The maximum forward speed - 9.1 mph (14.6 km/h), a max reverse speed - 6.5 mph (10.4 km/h).

The open center hydraulic system includes a gear pump with fluid flow rate of 4.3 gpm (16.4 lpm). The hydraulic system pressure is 132 bar (1915 psi). The Massey Ferguson GC1710 TLB is fitted with 18x8.50-10 front tires and 26x12.00-12 rear tires. The wheel base is 57.1" (1450 mm).

The Massey Ferguson DL95 loader has a max lift height of 72.8" (1850 mm) at pin and bucket dump angle at full height of 50 degrees. The lift capacity is 830 lbs (377 kg) at maximum height (bucket pin), and boom breakout force is 1320 lbs (600 kg). The loader is compatible with a 48" (1220 mm) standard material pin-type bucket with a rated capacity of 6.1 cu.ft (0.17 cu.m).

The Massey Ferguson CB05 backhoe digs to a maximum depth of 78" (1980 mm). The digging force is 1950 lbs (884 kg) for the bucket cylinder and 1180 lbs (535 kg) for the crowd cylinder. The overall reach from swing pivot at ground level is 102" (2590 mm). The backhoe is compatible with 10" (255 mm) and 12" (305 mm) buckets.

Engine
Engine Model Iseki E3112
Engine Type 4-cycle overhead valve indirect injection diesel
Number of Cylinders 3
Cylinder Bore, in (mm) 3.08 (78.2)
Piston Stroke, in (mm) 3.07 (78.0)
Total Displacement, cu.in (L) 68.5 (1.123)
Maximum Power, hp (kw) 22.5 (16.8)
Rated Speed, rpm 2600
Idle Speed, rpm 1175-2880
Aspiration Naturally aspirated
Compression Ratio 22.5:1
Firing Order 1-3-2
Fuel System Indirect injection
Governor Type Mechanical
Air Cleaner Type Single dry element
Cooling System Liquid, forced circulation
Valve Clearance (Cold), in (mm) 0.25 (0.010)
Fuel Tank Capacity, gal (L) 6.6 (25.0)
Oil Capacity, qts (L) 4.0 (3.7)
Coolant Capacity, qts (L) 3.4 (3.2)
Electrical System Rating, Volts 12
Alternator Rating, Amps 40

Power Take-Off
PTO Operational Type Independent
PTO Horsepower, hp (kW) 18.7 (13.9)
Rear PTO Speed, rpm 540
Rear PTO / Engine Speed, rpm 540/2475
Mid PTO Speed, rpm 2000
Mid PTO / Engine Speed, rpm 2000/2460

Transmission
Transmission Type Hydrostatic (HST)
Number of Forward Gears Infinite (2-range)
Number of Reverse Gears Infinite (2-range)
Maximum Forward Speed, mph (kph) 9.1 (14.6)
Maximum Reverse Speed, mph (kph) 6.5 (10.4)

Wheels and Tires
Drive Wheels 4WD 4x4
Steering Configuration Front steer
Steering System Hydrostatic Power
Service Brake Wet disc
Front Tire Size 18x8.50-10
Rear Tire Size 26x12.0-12


Hydraulic System
Hydraulic System Type Open center
Implement Pump Type Gear
Implement Pump Flow, gpm (Lpm) 4.3 (16.4)
Steering Pump Flow, gpm (Lpm) 2.0 (7.6)
Total Flow Rate, gpm (Lpm) 6.3 (24.0)
3-Point Hitch Category 1
Type of Link Ends Fixed
Lift Control Position control
Lift Capacity at end, lb (kg) 1190 (540)

Dimensions and Weight
Wheelbase, in (mm) 57.1 (1450)
Length (with Attachments), in (mm) 177 (4495)
Height (ROPS), in (mm) 86 (2185)
Overall Width, in (mm) 54 (1370)
Ground Clearance, in (mm) 6.7 (170)
Turning Radius, in (mm) 92 (2350)
Weight (with Attachments), lb (kg) 2670 (1210)

Loader
Loader Model Massey Ferguson DL95
Lift Cylinder Diameter, in (mm) 1.6 (40)
Bucket Cylinder Diameter, in (mm) 1.75 (45)
Bucket Width, in (mm) 48 (1220)
Maximum Lift Height to Pin, in (mm) 72.8 (1850)
Digging Depth, in (mm) 2.8 (70)
Maximum Dump Angle, degrees 50
Maximum Rollback Angle, degrees 25
Lift Capacity to Max Height at Pin, lbs (kg) 830 (377)
Lift Capacity to Max Height at 0.5m Forward of Pin, lbs (kg) 580 (270)
Breakout Force at Pin, lbs (kg) 1320 (600)
Breakout Force at 0.5m Forward of Pin, lbs (kg) 920 (420)
Maximum Rollback Force, lbs (kg) 2120 (960)

Backhoe
Backhoe Model Massey Ferguson CB05
Maximum Digging Depth, in (mm) 78 (1980)
Overall Reach from Swing Pivot, in (mm) 102 (2590)
Loading Height, in (mm) 60 (1525)
Swing Arc, deg 140
Bucket Rotation, deg 180
Bucket Digging Force, lbs (kg) 1950 (884)
Dipperstick Digging Force, lbs (kg) 1180 (535)
Bucket Widths, in (mm) 10, 12 (255, 305)
