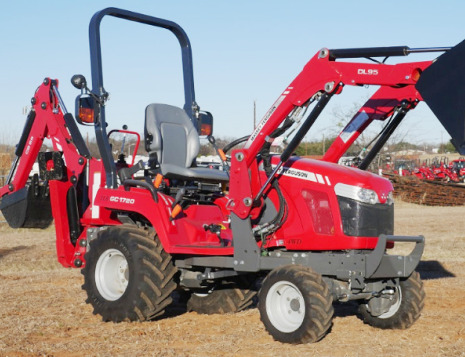

Massey Ferguson GC1720 TLB
The
Massey Ferguson GC1720 is a 4-wheel drive backhoe loader from Iseki built. This
model was manufactured between 2013 and 2018. The Massey Ferguson GC1720
powerline includes a 68.5 cu.in (1.12L) Iseki E3112 4-cycle 3-cylinder overhead
valve indirect injection liquid-cooled diesel engine with a maximum power of 25
hp (18.6 kW), and two-range hydrostatic transmission with infinite forward and
reverse gears.
The maximum forward speed - 9.1 mph (14.6 km/h), a maximum reverse speed
- 6.5 mph (10.4 km/h). The open center hydraulic system includes a gear
pump with a flow of 4.8 gal/min (18.3 l/min). The main relief pressure
is 132 bar (1914 psi). The Massey Ferguson GC1720 backhoe loader was
equipped with 18x8.50-10 front tires and 26x12.00-12 rear tires. The
wheel base is 57.1" (1450 mm).
The Massey Ferguson DL100 front end loader has a lift capacity (at pin)
of 678 lbs (307 kg) to full height of 73" (1855 mm) and boom breakout
force of 950 lbs (432 kg). The maximum bucket dump angle is 43 degrees
at full height. The loader is equipped with a 48" (1220 mm) standard
material pin-type bucket with a rated capacity of 6.1 cu.ft (0.17 cu.m).
The Massey Ferguson CB65 backhoe work ranges consist of a bucket digging
force of 2476 lbs (1123 kg), and dipper arm digging force of 1748 lbs
(793 kg). The digging depth at maximum value is 77.5" (1995 mm), and
reach from swing pivot is 107" (2715 mm) at ground line. The backhoe is
compatible with 12" (305) or 16" (405 mm) buckets.
| Engine Model |
Iseki E3112 |
| Engine Type |
4-cycle overhead valve indirect injection diesel |
| Number of Cylinders |
3 |
| Cylinder Bore, in (mm) |
3.08 (78.2) |
| Piston Stroke, in (mm) |
3.07 (78.0) |
| Total Displacement, cu.in (L) |
68.5 (1.123) |
| Maximum Power, hp (kw) |
25.0 (18.6) |
| Rated Speed, rpm |
3000 |
| Idle Speed, rpm |
1175-3200 |
| Aspiration |
Naturally aspirated |
| Compression Ratio |
22.5:1 |
| Firing Order |
1-3-2 |
| Fuel System |
Indirect injection |
| Governor Type |
Mechanical |
| Air Cleaner Type |
Single dry element |
| Cooling System |
Liquid, forced circulation |
| Valve Clearance (Cold), in (mm) |
0.25 (0.010) |
| Fuel Tank Capacity, gal (L) |
6.6 (25.0) |
| Oil Capacity, qts (L) |
4.0 (3.7) |
| Coolant Capacity, qts (L) |
3.4 (3.2) |
| Electrical System Rating, Volts |
12 |
| Alternator Rating, Amps |
40 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
19.6 (14.5) |
| Rear PTO Speed, rpm |
540 |
| Rear PTO / Engine Speed, rpm |
540/2475 |
| Mid PTO Speed, rpm |
2000 |
| Mid PTO / Engine Speed, rpm |
2000/2460 |
| Transmission Type |
Hydrostatic (HST) |
| Number of Forward Gears |
Infinite (2-range) |
| Number of Reverse Gears |
Infinite (2-range) |
| Maximum Forward Speed, mph (kph) |
9.1 (14.6) |
| Maximum Reverse Speed, mph (kph) |
6.5 (10.4) |
| Drive Wheels |
4WD 4x4 |
| Steering Configuration |
Front steer |
| Steering System |
Hydrostatic Power |
| Service Brake |
Wet disc |
| Front Tire Size |
18x8.50-10 |
| Rear Tire Size |
26x12.00-12 |
| Hydraulic System Type |
Open center |
| Implement Pump Type |
Gear |
| Implement Pump Flow, gpm (Lpm) |
4.8 (18.3) |
| Steering Pump Flow, gpm (Lpm) |
2.0 (7.6) |
| Total Flow Rate, gpm (Lpm) |
6.8 (25.8) |
| 3-Point Hitch Category |
1 |
| Type of Link Ends |
Fixed |
| Lift Control |
Position control |
| Lift Capacity at end, lb (kg) |
1190 (540) |
| Wheelbase, in (mm) |
57.1 (1450) |
| Length (with Attachments), in (mm) |
177 (4495) |
| Height (ROPS), in (mm) |
86 (2185) |
| Overall Width, in (mm) |
54 (1370) |
| Ground Clearance, in (mm) |
6.7 (170) |
| Turning Radius, in (mm) |
92 (2350) |
| Weight (with Attachments), lb (kg) |
2670 (1210) |
| Loader Model |
Massey Ferguson DL100 |
| Lift Cylinder Diameter, in (mm) |
1.6 (40) |
| Bucket Cylinder Diameter, in (mm) |
1.75 (45) |
| Bucket Width, in (mm) |
48 (1220) |
| Maximum Lift Height to Pin, in (mm) |
73 (1855) |
| Digging Depth, in (mm) |
2.8 (70) |
| Maximum Dump Angle, degrees |
43 |
| Maximum Rollback Angle, degrees |
23 |
| Lift Capacity to Max Height at Pin, lbs (kg) |
678 (307) |
| Lift Capacity to Max Height at 0.5m Forward of Pin, lbs (kg) |
470 (215) |
| Breakout Force at Pin, lbs (kg) |
950 (432) |
| Backhoe Model |
Massey Ferguson CB65 |
| Maximum Digging Depth, in (mm) |
77.5 (1995) |
| Overall Reach from Swing Pivot, in (mm) |
107 (2715) |
| Loading Height, in (mm) |
66 (1675) |
| Swing Arc, deg |
150 |
| Bucket Rotation, deg |
177 |
| Transport Height, m (in) |
70.9 (1800) |
| Stabiliser Spread (Transport), in (mm) |
47 (1190) |
| Stabiliser Spread (Operating), in (mm) |
80.3 (2040) |
| Bucket Digging Force, lb (kg) |
2476 (1123) |
| Dipperstick Digging Force, lb (kg) |
1748 (793) |
| Bucket Widths, in (mm) |
12, 16 (305, 405) |
| Shipping weight, lb (kg) |
635 (288) |
