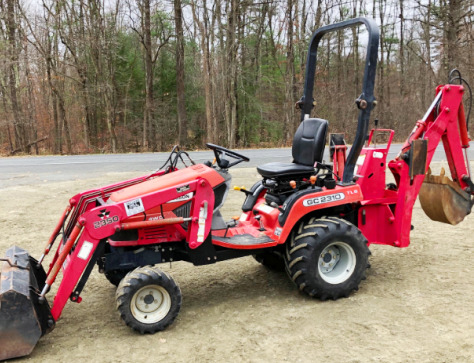

Massey Ferguson GC2310 TLB
The
Massey Ferguson GC2310 backhoe loader tractor was manufactured by Iseki built
from 2005 to 2008. The Massey Ferguson GC2310 TLB powerline system components: a
68.5 cu.in (1.1 L) Iseki E3112 4-cycle 3-cylinder indirect injection liquid
cooled diesel engine, and two-range hydrostatic transmission with infinite
forward and reverse gears. The engine has a cylinder bore of 3.08" (78.2 mm),
piston stroke of 3.07" (78 mm), and rated power of 22.5 hp (16.8 kW).
The max forward speed - 9.2 mph (14.7 km/h), a max reverse speed - 6.9
mph (11 km/h). The open center hydraulic system includes a gear pump
with a flow rate of 4.1 gal/min (15.5 l/min). The hydraulic pressure is
130 bar (1875 psi). The MF GC2310 is equipped with a hydrostatic
steering system, wet disc brakes, 18x8.50-10 front tires, and
26x12.00-12 rear tires. The wheel base is 57.1" (1450 mm).
The MF 2350 front end loader has a lift capacity (at bucket pin) of 678
lbs (307 kg) to maximum height of 73" (1850 mm), and breakout force of
950 lbs (430 kg). The 48" (1210 mm) standard material bucket has a
heaped capacity of 6.5 cu.ft (0.19 m3).
The MF 2375 backhoe has a bucket digging force of 1950 lbs (884 kg) and
dipper arm dig force of 1180 lbs (535 kg). The max digging depth is 78"
(1980 mm), and overall reach from swing pivot is 102" (2590 mm) at
ground level. The backhoe can be equipped with 8" (205 mm), 12" (305
mm), and 16" (405 mm) buckets.
| Engine Model |
Iseki E3112 |
| Engine Type |
4 Cycle, Liquid cooled, diesel |
| Number of Cylinders |
3 |
| Displacement, cu in (L) |
68.5 (1.123) |
| Engine Bore, in (mm) |
3.08 (78.2) |
| Engine Stroke, in (mm) |
3.07 (78) |
| Aspiration |
Natural |
| Maximum Engine Power, hp (kW) |
22.5 (16.8) |
| Maximum Engine Speed, rpm |
2600 |
| Maximum Torque, Nm |
65 |
| Torque Speed, rpm |
2000 |
| Fuel System |
In-Line Pump |
| Fuel Injection to combustion chamber |
Indirect |
| Fuel Tank Capacity, gal (L) |
5.53 (21.0) |
| Cooling System |
Liquid cooled |
| Neutral Safety Start |
Standard |
| Oil Capacity, qts (L) |
2.9 (2.7) |
| Coolant Capacity, qts (L) |
4.9 (4.6) |
| Electrical System Rating, Volts |
12 |
| Alternator Rating, Amps |
40 |
| Rear PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
18.7 (13.9) |
| Rear PTO Speeds, rpm |
540 |
| Rear PTO / Engine Speeds, rpm |
540/2467 |
| Mid PTO Operational Type |
Independent |
| Mid PTO Speeds, rpm |
2000 |
| Mid PTO / Engine Speeds, rpm |
2000/2532 |
| Transmission |
Hydrostatic |
| Transmission Type |
Two-range with cruise control |
| Number of Forward/Reverse Speed |
Infinite, 2 ranges |
| Control |
Single pedal for forward and reverse |
| Maximum Forward Speed, mph (kph) |
9.2 (14.7) |
| Maximum Reverse Speed, mph (kph) |
6.9 (11.0) |
| Differential lock |
Standard, pedal operated |
| Service Brake |
Wet disc |
| Drive Wheels |
4WD 4x4 |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic |
| Tires Type |
Turf or Agricultural |
| Front Tire Size |
18x8.50-10 |
| Rear Tire Size |
26x12.00-12 |
| Hydraulic System Type |
Open center |
| Implement Pump Flow, gpm (Lpm) |
4.1 (15.5) |
| Steering Flow, gpm (Lpm) |
2.0 (7.6) |
| Total Flow, gpm (Lpm) |
6.1 (23.1) |
| 3-Point Hitch Category |
1 |
| Draft Sensing or Lift Control |
Directional control |
| Link Ends Type |
Fixed |
| Standard Lift Capacity at lift pin, lb (kg) |
1190 (540) |
| Wheelbase, in (mm) |
57.1 (1450) |
| Length, in (mm) |
100 (2520) |
| Height (ROPS), in (mm) |
73.3 (1855) |
| Overall Width, in (mm) |
45.1 (1150) |
| Ground Clearance, in (mm) |
6.9 (170) |
| Turning Radius, in (mm) |
73.1 (1850) |
| Front Wheel Track, in (mm) |
36.8 (930) |
| Rear Wheel Track, in (mm) |
33.2 (840) |
| Shipping Weight, lb (kg) |
2600 (180) |
| Loader Model |
MF 2350 |
| Max Lift Height (to pin), in (mm) |
73 (1850) |
| Dump Angle, deg |
43 |
| Rollback Angle, deg |
20 |
| Breakout Force (Lift), lb (kg) |
950 (430) |
| Lift Capacity at Maximum Height (pin), lb (kg) |
678 (307) |
| Lift Capacity at Maximum Height (500 mm), lb (kg) |
470 (213) |
| Bucket Width, in (mm) |
48 (1210) |
| Backhoe Model |
MF 2375 |
| Max Digging Depth, in (mm) |
78 (1980) |
| Reach From Pivot, in (mm) |
102 (2590) |
| Bucket Force, lb (kg) |
1950 (884) |
| Dipperstick Force, lb (kg) |
1180 (535) |
