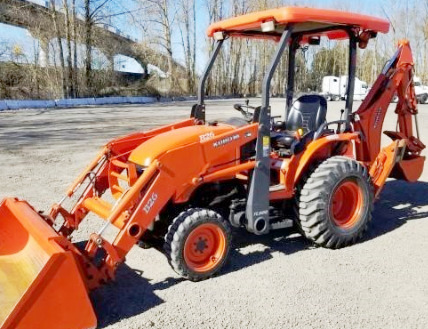

Kubota B26 Backhoe Loader
The
Kubota B26 is a 4-wheel drive tractor backhoe loader. This model was
manufactured between 2007 and 2017. The Kubota B26 TLB powertrain system
components: a 68.6 cubic inches (1.1 L) Kubota D1105 4-stroke 3-cylinder
vertical indirect injection water-cooled naturally aspirated diesel engine with
maximum power of 26 hp (19.3 kW), and 3-range hydrostatic transmission with
infinite forward and reverse gears.
The max forward speed - 11.1 mph (17.9 kph), a max reverse speed - 9.8
mph (15.8 kph). The open center hydraulic system includes a gear pump
with fluid flow rate of 7 gal/min (26.5 l/min). The three point hitch
lift capacity is 2140 lbs (970 kg) at pin. The Kubota B26 backhoe loader
was equipped with 24x8.50-14 front tyres and 13.6x16 rear tyres. The
wheel base is 62.2" (1580 mm).
The Kubota TL500 loader has a maximum lift height of 94.5" (2400 mm) at
pin and clearance with bucket dumped of 70" (1778 mm). The lift capacity
is 1300 lbs (590 kg) to max height at pin, and breakout force is 2345
lbs (1066 kg). The boom raising time is 3.5 seconds from ground level to
full height, and bucket dumping time is 1.7 seconds. The 60" (1520 mm)
heavy-duty material bucket has a heaped capacity of 9.5 cu.ft (0.27 m3).
The 66" (1670 mm) light material bucket has a heaped capacity of 13.8
cu.ft (0.39 m3).
The backhoe operational data includes a bucket dig force of 4210 lbs
(1915 kg), and dipper arm dig force of 3123 lbs (1420 kg). The max
digging depth is 99.8" (2535 mm), and a reach from swing pivot is 133.9"
(3400 mm) at ground level. The backhoe can be equipped with 12" (305
mm), 18" (455 mm), or 24" (610 mm) buckets.
| Engine Model |
Kubota D1105 |
| Engine Type |
4-stroke vertical water-cooled diesel |
| Number of Cylinders |
3 |
| Cylinder Bore, in (mm) |
3.07 (78.0) |
| Piston Stroke, in (mm) |
3.09 (78.4) |
| Total Displacement, cu.in (L) |
68.6 (1.123) |
| Maximum Power, hp (kw) |
26.0 (19.3) |
| Rated Speed, rpm |
2800 |
| Idle Speed, rpm |
850-3200 |
| Maximum Torque, Nm (lb-ft) |
65.3 (48.7) |
| Torque Speed, rpm |
2000 |
| Aspiration |
Naturally aspirated |
| Compression Ratio |
24:1 |
| Firing Order |
1-2-3 |
| Combustion Chamber |
Spherical type |
| Direction of Rotation |
Counter-clockwise |
| Fuel Injection Pump |
Bosch type |
| Injection nozzle |
Bosch Throttle type |
| Governor Type |
All speed mechanical governor |
| Lubrication System |
Forced lubrication by trochoid pump |
| Oil Pressure Indicating |
Electrical type switch |
| Oil Filter Type |
Full flow paper filter (cartridge) |
| Fuel Tank Capacity, gal (L) |
8.2 (31.0) |
| Oil Capacity, qts (L) |
3.2 (3.0) |
| Coolant Capacity, qts (L) |
4.3 (4.5) |
| Electrical System Rating, Volts |
12 |
| Alternator Rating, Amps |
40 |
| Starting System |
Electric starting with starter |
| Starter Rating |
12V, 1.0 kW |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
19.5 (14.5) |
| PTO Speed, rpm |
540 |
| PTO / Engine Speed, rpm |
540/2768 |
| Transmission Type |
Hydrostatic |
| Number of Forward Gears |
Infinite (3-range) |
| Number of Reverse Gears |
Infinite (3-range) |
| Oil Capacity, qts (L) |
27.5 (26.0) |
| Maximum Forward Speed, mph (kph) |
11.1 (17.9) |
| Maximum Reverse Speed, mph (kph) |
9.8 (15.8) |
| Drive Wheels |
4WD 4x4 |
| Steering Configuration |
Front steer |
| Steering System |
Hydrostatic power |
| Brakes Type |
Wet disc |
| Front Tire Size |
24x8.50-14 |
| Rear Tire Size |
13.6-16 |
| Front Tread, in (mm) |
35.6 (900) |
| Rear Tread, in (mm) |
41.3 (1040) |
| Hydraulic System Type |
Open center |
| Implement Pump Type |
Gear |
| Implement Pump Flow, gpm (Lpm) |
7.0 (26.5) |
| Steering Pump Flow, gpm (Lpm) |
4.2 (16.0) |
| Number of Standard Remote Valves |
1/3 |
| 3-Point Hitch Category |
1 |
| Draft Sensing or Lift Control |
Position control |
| Lift Capacity at 24" (610mm) ahead pin, lb (kg) |
1675 (760) |
| Lift Capacity at pin, lb (kg) |
2140 (970) |
| Wheelbase, in (mm) |
62.2 (1580) |
| Length (with Attachments), in (mm) |
198.2 (5035) |
| Height (ROPS), in (mm) |
89.5 (2275) |
| Overall Width, in (mm) |
53.7 (1365) |
| Ground Clearance, in (mm) |
13.8 (350) |
| Turning Radius, in (mm) |
98.5 (2500) |
| Weight, lb (kg) |
4000 (1815) |
| Loader Model |
Kubota TL500 |
| Maximum Lift Height to Pivot Pin, in (mm) |
94.5 (2400) |
| Clearance with Bucket Dumped, in (mm) |
70 (1778) |
| Reach at Maximum Lift Height, in (mm) |
22.3 (567) |
| Maximum Dump Angle, degrees |
45 |
| Digging Depth, in (mm) |
7 (177) |
| Maximum Rollback Angle, degrees |
46 |
| Lift Capacity to Full Height at Pivot Point, lbs (kg) |
1300 (590) |
| Breakout Force at Bucket Pivot Point, lbs (kg) |
2345 (1066) |
| Boom Cylinder Size (Bore/Stroke), in (mm) |
1.97x15.7 (50x399) |
| Bucket Cylinder Size (Bore/Stroke), in (mm) |
2.17x15.1 (55x383) |
| Bucket Width, in (mm) |
60 (1520) |
| Optional Bucket Width, in (mm) |
66 (1675) |
| Loader Weight, lbs (kg) |
628 (285) |
| Maximum Digging Depth, in (mm) |
99.8 (2535) |
| 2-ft Flat Digging Depth, in (mm) |
98.3 (2498) |
| 8-ft Flat Digging Depth, in (mm) |
77 (1957) |
| Overall Reach from Swing Pivot, in (mm) |
133.9 (3400) |
| Loading Height, in (mm) |
77.3 (1963) |
| Loading Reach, in (mm) |
52.1 (1324) |
| Swing Arc, deg |
180 |
| Bucket Rotation, deg |
181 |
| Leveling Angle, deg |
10.7 |
| Transport Height, in (mm) |
89.1 (2264) |
| Stabilizer Spread (Operating Position), in (mm) |
83.3 (2116) |
| Stabilizer Spread (Transport Position), in (mm) |
53 (1347) |
| Digging Force (Bucket Cylinder), lbs (kg) |
4210 (1915) |
| Digging Force (Dipper Cylinder), lbs (kg) |
3123 (1420) |
| Bucket Widths, in (mm) |
12, 18, 24 (305, 457, 610) |
| Backhoe Weight, lbs (kg) |
823 (374) |
