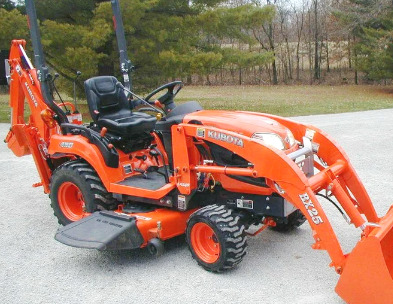

Kubota BX25 Backhoe Loader
The
Kubota BX25 tractor loader backhoe was manufactured from 2009 to 2013. The
components of Kubota BX25 TLB powertrain system: Kubota D902-E3 3-cylinder
vertical indirect injection water-cooled diesel engine, and 2-range hydrostatic
transmission with infinite forward and reverse gears.
A 54.8 cubic inches (0.9 L) engine has a cylinder bore of 2.83 in (72
mm), piston stroke of 2.9 in (73.6 mm), and maximum power of 23 hp (17.2
kW). The max travel speed (forward and reverse): 8.4 mph (13.5 km/h) /
6.2 mph (10 km/h). The open center hydraulic system includes a gear pump
with fluid flow rate of 6.3 gpm (23.8 lpm). The Kubota BX25 backhoe
loader is fitted with a hydrostatic power steering, wet disc brakes,
18x8.50-10 front tires, and 26x12.0-12 rear tires. The wheelbase is 55.1
in (1400 mm).
The Kubota LA240 loader has a maximum lift height of 71.3 in (1810 mm)
at pin and bucket dump clearance of 52.4 in (1330 mm). The lifting
capacity is 745 lbs (337 kg) at max height (pivot pin), and bucket's
breakout force is 992 lbs (449 kg). The raising time is 3.5 seconds from
ground line to maximum height, and bucket dump time is 1.7 sec. The 48
in (1220 mm) standard material bucket has a rated capacity of 6.1 cu.ft
(0.17 m3).
The Kubota BT601 backhoe has a bucket dig force of 1936 lbs (880 kg) and
dipperstick dig force of 1170 lbs (530 kg). The digging depth at maximum
value is 74.4 in (1890 mm), and a reach from swing pivot is 102.8 in
(2612 mm) at ground line. The backhoe can be equipped with 8 in (203 mm)
and 12 in (305 mm) buckets.
| Engine Model |
Kubota D902-E3 |
| Engine Type |
4-cycle vertical indirect injection water-cooled diesel |
| Number of Cylinders |
3 |
| Cylinder Bore, in (mm) |
2.83 (72.0) |
| Piston Stroke, in (mm) |
2.90 (73.6) |
| Total Displacement, cu.in (L) |
54.8 (0.90) |
| Maximum Power, hp (kw) |
23.0 (17.2) |
| Rated Speed, rpm |
3200 |
| Idle Speed, rpm |
900-3800 |
| Aspiration |
Naturally aspirated |
| Compression Ratio |
24:1 |
| Firing Order |
1-2-3 |
| Combustion Chamber |
Spherical type |
| Direction of Rotation |
Counter-clockwise |
| Fuel Injection Pump |
Bosch type |
| Injection nozzle |
Bosch Throttle type |
| Governor Type |
All speed mechanical governor |
| Lubrication System |
Forced lubrication by trochoid pump |
| Oil Pressure Indicating |
Electrical type switch |
| Oil Filter Type |
Full flow paper filter (cartridge) |
| Valve Clearance (Cold), in (mm) |
0.0057-0.0073 (0.145-0.185) |
| Fuel Tank Capacity, gal (L) |
6.6 (25.0) |
| Oil Capacity, qts (L) |
4.0 (3.7) |
| Coolant Capacity, qts (L) |
3.4 (3.2) |
| Electrical System Rating, Volts |
12 |
| Alternator Rating, Amps |
40 |
| Starting System |
Electric starting with starter |
| Starter Rating |
12V, 1.2 kW |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
17.7 (13.2) |
| PTO Clutch |
Hydraulic |
| Rear PTO Speed, rpm |
540 |
| Rear PTO / Engine Speed, rpm |
540/3068 |
| Mid PTO Speed, rpm |
2500 |
| Mid PTO / Engine Speed, rpm |
2500/3125 |
| Transmission Type |
Hydrostatic (HST) |
| Number of Forward Gears |
Infinite (2-range) |
| Number of Reverse Gears |
Infinite (2-range) |
| Oil Capacity, qts (L) |
12.3 (11.7) |
| Maximum Forward Speed, mph (kph) |
8.4 (13.5) |
| Maximum Reverse Speed, mph (kph) |
6.2 (10.0) |
| Drive Wheels |
4WD 4x4 |
| Steering Configuration |
Front steer |
| Steering System |
Hydrostatic Power |
| Service Brake |
Wet disc |
| Front Tire Size |
18x8.50-10 |
| Rear Tire Size |
26x12.0-12 |
| Front Tread, in (mm) |
35.8 (910) |
| Rear Tread, in (mm) |
32.2 (820) |
| Hydraulic System Type |
Open center |
| Implement Pump Type |
Gear |
| Implement Pump Flow, gpm (Lpm) |
6.3 (23.8) |
| Hydraulic Capacity, qts (L) |
3.1 (11.7) |
| 3-Point Hitch Category |
1 |
| Lift Control |
Position control |
| Lift Capacity at 24" behind pin, lb (kg) |
660 (300) |
| Lift Capacity at pin, lb (kg) |
990 (450) |
| Wheelbase, in (mm) |
55.1 (1400) |
| Length (Tractor only), in (mm) |
95.5 (2420) |
| Length (with Attachments), in (mm) |
175 (4445) |
| Height (ROPS), in (mm) |
86.2 (2190) |
| Overall Width, in (mm) |
45.1 (1145) |
| Ground Clearance, in (mm) |
8.7 (220) |
| Turning Radius, in (mm) |
90.1 (2300) |
| Weight (Tractor only), lb (kg) |
1520 (690) |
| Weight (with Attachments), lb (kg) |
2700 (1225) |
| Loader Model |
Kubota LA240 |
| Maximum Lift Height to Pivot Pin, in (mm) |
71.3 (1810) |
| Clearance with Bucket Dumped, in (mm) |
52.4 (1330) |
| Reach at Maximum Lift Height, in (mm) |
26.2 (660) |
| Maximum Dump Angle, degrees |
45 |
| Digging Depth, in (mm) |
5 (127) |
| Maximum Rollback Angle, degrees |
29 |
| Lift Capacity to Full Height at Pivot Pin, lbs (kg) |
745 (337) |
| Lift Capacity to Full Height at 19.7" (0.5m) ahead Pivot Pin, lbs (kg) |
518 (234) |
| Breakout Force at Bucket Pivot Pin, lbs (kg) |
992 (449) |
| Boom Cylinder Size (Rod/Stroke), in (mm) |
1.0x12.8 (25x326) |
| Bucket Cylinder Size (Rod/Stroke), in (mm) |
1.18x8.1 (30x205) |
| Bucket Width, in (mm) |
48 (1220) |
| Loader Weight, lbs (kg) |
440 (200) |
| Backhoe Model |
Kubota BT601 |
| Maximum Digging Depth, in (mm) |
74.4 (1890) |
| 2-ft Flat Digging Depth, in (mm) |
72.5 (1840) |
| 8-ft Flat Digging Depth, in (mm) |
41.7 (1060) |
| Overall Reach from Swing Pivot, in (mm) |
102.8 (2612) |
| Loading Height, in (mm) |
60.4 (1533) |
| Loading Reach, in (mm) |
31.1 (790) |
| Swing Arc, deg |
140 |
| Bucket Rotation, deg |
180 |
| Transport Height, in (mm) |
67.7 (1720) |
| Stabilizer Spread (Operating Position), in (mm) |
73.3 (1860) |
| Stabilizer Spread (Transport Position), in (mm) |
51 (1295) |
| Digging Force (Bucket Cylinder), lbs (kg) |
1936 (880) |
| Digging Force (Dipper Cylinder), lbs (kg) |
1170 (530) |
| Bucket Widths, in (mm) |
8, 12 (203, 305) |
| Backhoe Weight, lbs (kg) |
615 (279) |
