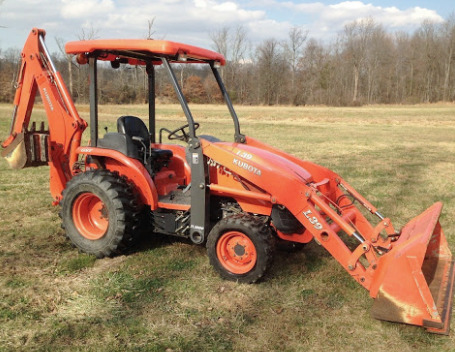

Kubota L39 Backhoe Loader
The
Kubota L39 is a 4WD backhoe loader. This model was manufactured between 2005 and
2015. The components of Kubota L39 TLB powerline system: a Kubota D1803 vertical
3-cylinder direct injection diesel engine, and a Glide Shift transmission with
12 forward and 8 reverse gears.
A 111.4 cubic inches engine output rating is 37.4 hp (27.9 kW), and a
max torque is 115.8 Nm (85.4 lb-ft) at 1600 rev/min. The max travel
speed (forward/reverse): 14.7 mph (23.7) and 14 mph (22.4 kph). The open
center hydraulic system includes a gear pump with a flow of 24.3 gallons
per minute (88.7 liters per minute).
The hydraulic fluid capacity is 16.3 gal (61.5 L). The Kubota L39 TLB is
fitted with 27x10.50LL or 27x10.5-15 front tyres and 16.5Lx16.1 or
15-19.5 rear tyres. The TL1000 loader has a lifting capacity (at pivot
pin) of 2767 lb (1255) to maximum height of 114.2" (2900 kg), and
breakout force (bucket on ground) of 4605 lb (2093 kg). The clearance
with bucket dumped is 90" (2285) mm at maximum dump angle of 45 degrees.
The boom raising time is 3.7 seconds from ground line to max height, and
bucket dump time is 1.7 seconds. The 72" heavy-duty round bucket has a
rated capacity of 15.5 cu.ft (0.44 m3). The 4 in 1 bucket has a rated
capacity of 13.1 cu.ft (0.37 m3) and width of 72 in.
The BT1000 backhoe work ranges consist of a bucket dig force of 5825 lb
(2647 kg), and dipper arm digging force of 3779 lb (1718 kg). The max
digging depth is 121" (3073 mm), 2-ft. flat digging depth is 120" (3048
mm), and overall reach from swing pivot is 160.9" (4087 mm) at ground
line. The backhoe is equipped with 12", 16", 18", 24", 30" and 36"
buckets.
| Engine Model |
Kubota D1803 |
| Engine Type |
Direct injection vertical 4-cycle 3-cyl. diesel |
| Number of Cylinders |
3 |
| Displacement, cu in (L) |
111.4 (1,83) |
| Engine Bore, in (mm) |
87 (3,4) |
| Engine Stroke, in (mm) |
102,4 (4,0) |
| Rated Engine Power, hp (kW) |
36,3 (27,1) |
| Maximum Engine Power, hp (kW) |
37,4 (27,9) |
| Rated Engine Speed, rpm |
2700 |
| Maximum Torque, Nm (ft-lbs) |
115,8 (85,4) |
| Compression |
23,8:1 |
| Firing Order |
1-2-3 |
| Injection pump |
Bosch Type |
| Injection pressure, MPa (psi) |
13.73 (1991) |
| Fuel System |
Direct injection |
| Fuel Tank Capacity, gal (L) |
10,6 (40,0) |
| Oil Capacity, qts (L) |
6,0 (5,7) |
| Coolant Capacity, qts (L) |
6,3 (6,0) |
| Electrical System Rating, Volts |
12 |
| Alternator Rating, Amps |
55 |
| PTO Operational Type |
Rear, Independent |
| PTO Horsepower, hp (kW) |
29,6 (22,1) |
| PTO Speeds, rpm |
540 |
| Transmission Type |
F12/R8, Glide Shift (GST) |
| Number of Forward Speeds |
12 |
| Number of Reverse Speeds |
8 |
| Maximum Speed Forward, mph (kph) |
14,7 (23,7) |
| Clutch |
Dry, Single |
| Synchro |
Fully synchronized |
| Shuttle Shift |
Standard |
| Drive Wheels |
4x4 4WD |
| Steering Configuration |
Front steer |
| Steering System |
Hydrostatic Power |
| Tilt Steering |
Standard |
| Brakes Type |
Wet disc |
| Front Axle Capacity, qts (L) |
6.9 (6.5) |
| Front Tire Size |
27x10.50LLx15 / 27x10.5-15 (Industrial) |
| Rear Tire Size |
16.5Lx16.1 / 15-19.5 (Industrial) |
| Hydraulic System Type |
Open center |
| Implement Pump Flow, gpm (Lpm) |
24,3 (88,7) |
| Steering Pump Flow, gpm (Lpm) |
6,2 (23,5) |
| Hydraulic Capacity, gal (L) |
16,25 (61,5) |
| 3-Point Hitch Category |
1 |
| Draft Sensing or Lift Control |
Standard |
| Standard Lift Capacity 24 Inches behind pin, lb (kg) |
2800 (1270) |
| Standard Lift Capacity at lift pin, lb (kg) |
2220 (244) |
| Wheelbase, in (mm) |
68,9 (1750) |
| Front Tread, in (mm) |
45,9 (1160) |
| Rear Tread, in (mm) |
51,8 (1310) |
| 4WD Turning Radius, in (mm) |
87.3 (2200) |
| Weight, lb (kg) |
6988 (3170) |
| Maximum lift height, in (mm) |
114.2 (2900) |
| Clearance with bucket dumped, in (mm) |
90.0 (2285) |
| Reach at maximum height, in (mm) |
20.5 (520) |
| Maximum dump angle, deg |
45 |
| Reach with bucket on ground, in (mm) |
72.0 (1830) |
| Bucket rollback angle, deg |
45 |
| Digging depth, in (mm) |
5.0 (125) |
| Overall height in carry position, in (mm) |
45.3 (1150) |
| Lift capacity to max. height at bucket bottom mid point, lb (kg) |
2200 (1000) |
| Lift capacity to max. height at pivot pin, lb (kg) |
2767 (1255) |
| Breakout force at pivot pin, lb (N) |
4605 (20470) |
| Control valve |
One detent float position power beyond circuit hydraulic dual self-leveling valve |
| Net weight, lb (kg) |
960 (435) |
| Transport height, in (mm) |
106.3 (2700) |
| Stabilizer spread-transport, in (mm) |
67.2 (1707) |
| Ground clearance, in (mm) |
12.3 (312) |
| Overall width, in (mm) |
66.9 (1699) |
| Digging depth, maximum, in (mm) |
121.0 (3073) |
| Digging depth, 2-ft. flat bottom, in (mm) |
120.0 (3048) |
| Digging depth, 8-ft. flat bottom, in (mm) |
102.2 (2596) |
| Operating height, fully raised, in (mm) |
157.2 (3993) |
| Loading height, maximum, in (mm) |
91.3 (2319) |
| Loading reach, in (mm) |
58.7 (1491) |
| Reach from swing pivot, in (mm) |
160.9 (4087) |
| Swing pivot to rear axle center line, in (mm) |
38.0 ( 965) |
| Bucket rotation, deg |
180 |
| Swing arc, deg |
180 |
| Stabilizer spread-operating, in (mm) |
89.3 (2268) |
| Angle of departure, deg |
19.2 |
| Leveling angle, deg |
10.0 |
| Digging force using bucket cylinder, lb (kg) |
5825 (2647) |
| Digging force using dipperstick cylinder, lb (kg) |
3779 (1718) |
| Trunnion type boom swing mechanism |
Two cylinders |
| Net weight, lb (kg) |
1598 (725) |
