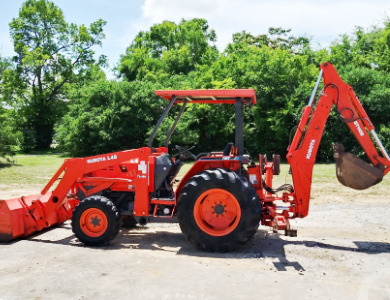

Kubota L48 Backhoe Loader
The
Kubota L48 tractor loader backhoe was manufactured from 2000 to 2009. The Kubota
L48 TLB is equipped with a 148.5 cubic inches (2.4 L) Kubota V2403 4-cylinder
indirect injection water-cooled diesel engine with a rated power of 46 hp (34.3
kW), and 3-range hydrostatic transmission with infinite forward and reverse
gears.
The maximum travel speed (forward/reverse): 14.1 mph (22.5 km/h) and 14.2
mph (22.7 km/h). The open center hydraulic system includes a gear pump with
fluid flow rate of 25.9 gpm (98 lpm). The hydraulic pressure is 2800 psi (193
bar). The Kubota L48 TLB is fitted with a hydrostatic power steering system, wet
disc brakes, 10x16.5 front tyres, and 17.5Lx24 rear tyres. The wheelbase is 74" (1880 mm).
The TL1150 front end loader has a lift capacity (at bucket pin) of 3000
lbs (1360 kg) to full height of 116.1" (2950 mm), and breakout force of
4375 lbs (1990 kg). A full dump clearance with a 45-degree max dump
angle is 88.8" (2255 mm). The rated cycle times are 4.2 seconds lifting
to maximum height, and 2.9 seconds full bucket dumping. The 72" (1820
mm) standard material bucket has a weight of 420 lbs (190 kg), and
nominal heaped capacity of 15.5 cu.ft (0.44 cu.m).
The BT1100 backhoe operational data includes a bucket dig force of 5908
lbs (2685 kg), and dipper arm dig force of 3968 lbs (1803 kg). The
digging depth at max value is 134.6" (3419 mm), and a reach from swing
pivot is 172.7" (4387 mm) at ground level. The backhoe can be equipped
with 12", 16", 18", 24", 30", and 36" buckets.
| Engine Model |
Kubota V2403 |
| Engine Type |
4 cycle, vertical, indirect injection water-cooled diesel |
| Number of Cylinders |
4 |
| Displacement, cu in (L) |
148.5 (2.434) |
| Engine Bore, in (mm) |
3.43 (87.0) |
| Engine Stroke, in (mm) |
4.03 (102.4) |
| Aspiration |
Natural |
| Rated Engine Power, hp (kW) |
46.0 (34.3) |
| Maximum Engine Power, hp (kW) |
48.0 (35.8) |
| Rated Engine Speed, rpm |
2600 |
| Idle Speed, rpm |
950-1000 |
| Compression |
23.8:1 |
| Firing Order |
1-3-4-2 |
| Fuel System |
Indirect injection |
| Fuel Injection Pump |
Bosch type |
| Emissions Level |
Tier 4 |
| Emission Control |
EGR |
| Fuel Tank Capacity, gal (L) |
13.2 (50.0) |
| Oil Capacity, qts (L) |
8.7 (8.2) |
| Coolant Capacity, qts (L) |
8.7 (8.2) |
| Electrical System Rating, Volts |
12 |
| Starting System |
Electric starter |
| PTO Operational Type |
Live-continuous running |
| PTO Horsepower, hp (kW) |
37.5 (27.8) |
| PTO Speed, rpm |
540 |
| Transmission Type |
Hydrostatic |
| Number of Forward Gears |
3 Range |
| Number of Reverse Gears |
3 Range |
| Oil Capacity, qts (L) |
48.8 (46.2) |
| Cruise Control |
Standard |
| Maximum Forward Speed, mph (kph) |
14.1 (22.5) |
| Maximum Reverse Speed, mph (kph) |
14.2 (22.7) |
| Drive Wheels |
4WD 4x4 |
| Steering Configuration |
Front steer |
| Steering System |
Hydrostatic power |
| Brake Type |
Wet discs |
| Front Tire Size |
10x16.5-R4 |
| Rear Tire Size |
17.5Lx24-R4 |
| Front Tread, in (mm) |
53.7 (1360) |
| Rear Tread, in (mm) |
57.6 (1460) |
| Hydraulic System Type |
Open center |
| Hydraulic Pump Flow, gpm (Lpm) |
25.9 (98.0) |
| Steering Flow, gpm (Lpm) |
6.6 (25.0) |
| Hydraulic Pressure, Bar (psi) |
193 (2800) |
| Hydraulic Capacity, gal (L) |
12.2 (46.2) |
| 3-Point Hitch Category |
1 |
| Draft Sensing or Lift Control |
Position control |
| Lift Capacity 24" (600mm) behind pin, lb (kg) |
3310 (1500) |
| Wheelbase, in (mm) |
74.0 (1880) |
| Overall Length, in (mm) |
241.1 (6120) |
| Height in (mm) |
120 (3040) |
| Overall Width (with Loader), in (mm) |
74.5 (1890) |
| Turning Radius, in (mm) |
126.5 (3200) |
| Weight (Maximum), lb (kg) |
7760 (3520) |
| Loader Model |
TL1150 |
| Maximum Lift Height, in (mm) |
116.1 (2950) |
| Clearance Bucket Dumped, in (mm) |
88.8 (2255) |
| Reach at Maximum Height, in (mm) |
22.8 (580) |
| Maximum Dump Angle, deg |
45 |
| Reach at Ground, in (mm) |
71.3 (1810) |
| Bucket Rollback Angle, deg |
45 |
| Digging Depth, in (mm) |
5.9 (150) |
| Lift Capacity at Maximum Height, lb (kg) |
3000 (1360) |
| Breakout Force, lb (kg) |
4375 (1990) |
| Bucket Width, in (mm) |
72 (1820) |
| Bucket Capacity, cu.ft (cu.m) |
15.5 (0.44) |
| Loader Weight, lb (kg) |
1080 (490) |
| Bucket Weight, lb (kg) |
420 (190) |
| Backhoe Model |
BT1100 |
| Boom Swing System |
2-cylinder trunion type |
| Transport Height, in (mm) |
113.2 (2875) |
| Digging Depth (Maximum), in (mm) |
134.6 (3419) |
| Digging Depth (2-ft Flat Bottom), in (mm) |
133.7 (3396) |
| Loading Height, in (mm) |
114.6 (2911) |
| Swing Arc, deg |
180 |
| Reach From Pivot, in (mm) |
172.7 (4387) |
| Bucket Force, lb (kg) |
5908 (2685) |
| Dipperstick Force, lb (kg) |
3968 (1803) |
| Bucket Width (Standard), in (mm) |
16 (405), 18 (455), 24 (605) |
| Bucket Width (Optional), in (mm) |
12 (300), 30 (760), 36 (910) |
| Backhoe Weight, lb (kg) |
1953 (886) |
