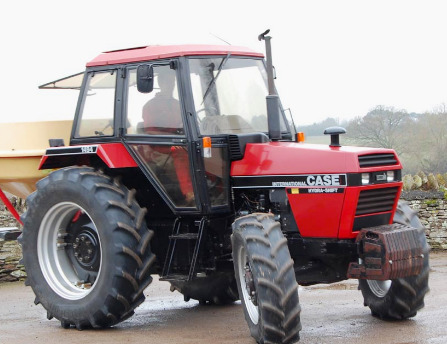

Case IH 1494 Tractor
The
Case International 1494 is a 2WD or 4WD utility tractor. This model was
manufactured from 1983 to 1988. The Case IH 1494 is powered by Case AD4.55T four
cycle 4-cylinder turbocharged diesel engine with a maximum output power of 85 hp
(63.5 kW) and 296 Nm (218 lb-ft) of peak torque at 1600 rev/min.
The Case IH 1494 tractor was fitted with 2 transmission options: 12x4
Hydra-shift transmission, or synchromesh gear transmission with 12
forward and 4 reverse gears. The maximum forward speed - 17.1 mph (27.4
km/h), maximum reverse speed - 7.5 mph (12 km/h).
The open center hydraulic system used a gear pump with flow rate of 15.3
gal/min (58 l/min). The hydraulic system pressure is 170 bar (2450 psi).
The 2-wheel drive models are equipped with 7.50x18 front tyres and
16.9x34 rear tyres. The 12.4x24 front tyres and 13.6x38 rear tyres fit
4-wheel drive tractors. The wheelbase is 88.5 inches (2240 mm).
| Engine Model |
Case AD4.55T |
| Engine Type |
4 stroke four-cylinder turbocharged diesel |
| Number of Cylinders |
4 |
| Displacement, cu in (L) |
219.0 (3.60) |
| Engine Bore, in (mm) |
3.94 (100.0) |
| Engine Stroke, in (mm) |
4.51 (114.0) |
| Aspiration |
Turbocharged |
| Rated Engine Power, hp (kW) |
85.0 (63.5) |
| Rated Engine Speed, rpm |
2200 |
| Maximum Torque, Nm (ft-lbs) |
296 (218) |
| Torque Speed, rpm |
1600 |
| Compression |
16.0:1 |
| Fuel System |
Injection pump |
| Cooling System |
Water cooled radiator |
| Fuel Tank Capacity, gal (L) |
35.9 (135.0) |
| Oil Capacity, qts (L) |
7.8 (7.4) |
| Coolant Capacity, qts (L) |
15.0 (14.2) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Alternator Rating, Amps |
45/65 |
| Batteries Power, AH |
96 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
75.0 (55.9) |
| PTO Speed, rpm |
540/1000 |
| PTO Control |
Manual |
| Transmission Type |
Synchromesh |
| Gearbox Type |
12F/4R |
| Number of Forward Gears |
12 |
| Number of Reverse Gears |
4 |
| Clutch Type |
Dry disc |
| Oil Capacity, qts (L) |
33.6 (31.8) |
| Maximum Forward Speed, mph (kph) |
16.8 (27.0) |
| Maximum Reverse Speed, mph (kph) |
7.0 (11.2) |
| Transmission Type |
Hydra-Shift |
| Gearbox Type |
12F/4R |
| Number of Forward Gears |
12 |
| Number of Reverse Gears |
4 |
| Clutch Type |
Hydraulic |
| Oil Capacity, qts (L) |
33.6 (31.8) |
| Maximum Forward Speed, mph (kph) |
17.1 (27.4) |
| Maximum Reverse Speed, mph (kph) |
7.5 (12.0) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic power |
| Brakes Type |
Mechanical disc brakes |
| Front Tire Size (2WD) |
7.50x18 |
| Rear Tire Size (2WD) |
16.9x34 |
| Front Tire Size (4WD) |
12.4x24 |
| Rear Tire Size (4WD) |
13.6x38 |
| Front Tread (2WD), in (mm) |
52-72 (1320-1820) |
| Front Tread (4WD), in (mm) |
60-76 (1520-1930) |
| Rear Tread, in (mm) |
56-80 (1420-2030) |
| Hydraulic System Type |
Open center |
| Implement Pump Flow, gpm (Lpm) |
15.3 (58.0) |
| Steering Pump Flow, gpm (Lpm) |
7.7 (29.0) |
| Hydraulic Pressure, Bar (psi) |
170 (2475) |
| Steering Pressure, Bar (psi) |
127.5 (1850) |
| Number of Standard Remote Valves |
1/3 |
| 3-Point Hitch Category |
2 |
| Draft Sensing or Lift Control |
Top link sensing |
| Standard Lift Capacity 24-in (610mm) behind pin, lb (kg) |
3210 (1456) |
| Standard Lift Capacity at lift pin, lb (kg) |
5365 (2435) |
| Wheelbase, in (mm) |
88.5 (2240) |
| Length, in (mm) |
147.5 (3740) |
| Height (Cab), in (mm) |
102 (2590) |
| Overall Width, in (mm) |
75.0 (1900) |
| Ground clearance (2WD), in (mm) |
16.5 (410) |
| Ground clearance (4WD), in (mm) |
14 (350) |
| Turning Radius, in (mm) |
150 (3800) |
| Weight (2WD, Synchromesh), lb (kg) |
7380 (3348) |
| Weight (4WD, Synchromesh), lb (kg) |
8005 (3630) |
| Weight (2WD, Hydra-Shift), lb (kg) |
7660 (3475) |
| Weight (4WD, Hydra-Shift), lb (kg) |
8180 (3715) |
