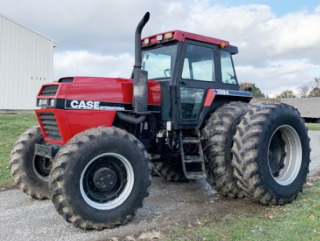

Case IH 3594 Specifications
The
Case IH 3594 is a 4WD (4x4) row-crop tractor. This model was manufactured from
1985 to 1988. The tractor is powered by 504 cu.in (8.3 L) Case 504BD
six-cylinder turbocharged diesel engine with a rated power of 235 hp (174 kW).
The Case IH 3594 is fitted with a two transmission options: partial
powershift transmission with 12 forward and 3 reverse gears, or
powershift transmission with 24 forward and 3 reverse gears. The maximum
travel speed (forward/reverse): 20.8 mph (33.5 km/h) and 8.4 mph (13.5
km/h). The closed center hydraulic system has a piston pump with a rated
capacity of 30 gpm (113.6 lpm).
The hydraulic system pressure is 155 bar (2250 psi). The Case IH 3594 is
equipped with a hydrostatic power steering, differential hydraulic wet
disc brakes, 16.9x26 front tires, and 24.5R32 rear tires. The wheelbase
is 116" (2940 mm).
| Engine Model |
Case 504BD |
| Engine Type |
4 Stroke, 6 cylinders turbocharged diesel |
| Number of Cylinders |
Six |
| Displacement, cu in (L) |
504 (8,3) |
| Engine Bore, in (mm) |
4,61 (117,0) |
| Engine Stroke, in (mm) |
5,00 (127,0) |
| Aspiration |
Turbocharged |
| Maximum Engine Power, hp (kW) |
235,0 (174,0) |
| Rated Engine Speed, rpm |
2100 |
| Compression |
15.8:1 |
| Fuel Tank Capacity, gal (L) |
85,0 (321,6) |
| Oil Capacity, qts (L) |
23,0 (21,8) |
| Coolant Capacity, qts (L) |
44,0 (41,6) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Alternator Rating, Amps |
72/105 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
182,0 (135,7) |
| PTO Speeds, rpm |
1000 |
| Transmission Type |
Power Shift |
| Gearbox Type |
24F/3R |
| Number of Forward Gears |
12 |
| Number of Reverse Gears |
3 |
| Clutch Type |
Hydraulic wet disc |
| Oil Capacity, qts (L) |
133,0 (125,9) |
| Maximum Speed (Forward), mph (kph) |
20,8 (33,5) |
| Maximum Speed (Reverse), mph (kph) |
7,3 (11,7) |
| Transmission Type |
Partial power shift |
| Gearbox Type |
12F/3R |
| Number of Forward Gears |
12 |
| Number of Reverse Gears |
3 |
| Power Shift Steps |
3 |
| Oil Capacity, qts (L) |
133,0 (125,9) |
| Maximum Speed (Forward), mph (kph) |
20,8 (33,5) |
| Maximum Speed (Reverse), mph (kph) |
8,4 (13,5) |
| Drive Wheels |
4WD 4x4 |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic power |
| Service Brake |
Differential hydraulic wet disc |
| Front Tire Size |
16.9-26 |
| Rear Tire Size |
24.5R-32 |
| Hydraulic System Type |
Closed center |
| Implement Pump Flow, gpm (Lpm) |
30,0 (113,6) |
| Steering Pump Flow, gpm (Lpm) |
8,0 (30,3) |
| Hydraulic Oil Capacity, gal (L) |
33,3 (125,9) |
| Hydraulic Pressure, Bar (psi) |
155 (2250) |
| Number of Standard Remote Valves |
2/4 |
| 3-Point Hitch Category |
3 |
| Standard Lift Capacity 24-in (610 mm) behind pin, lb (kg) |
7750 (3515) |
| Wheelbase, in (mm) |
116 (2940) |
| Length, in (mm) |
192,5 (4880) |
| Height, in (mm) |
120 (3040) |
| Overall Width, in (mm) |
60 (1520) |
| Ground Clearance, in (mm) |
18 (450) |
| Weight (Ballasted), lb (kg) |
20600 (9310) |
| Weight (Operating), lb (kg) |
17590 (7980) |
