Case IH 7140 Magnum Specifications
The

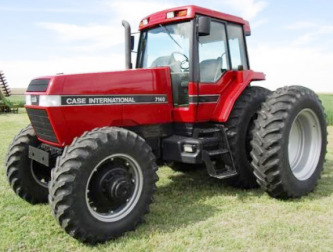

Case IH Magnum 7140 row-crop tractor was manufactured between 1987 and 1993. The
tractor is powered by 505 cu.in (8.3 L) Case-International 6TA-830 6-cylinder
turbocharged diesel engine with a rated power of 238 hp (176.2 kW).
The Case IH Magnum 7140 is fitted with a 2 types of transmission. Type
1: Full powershift transmission with 18 forward and 2 reverse gears.
Type 2: Creeper transmission with 24 forward and 3 reverse gears. The
maximum travel speed (forward/reverse): 19.6 mph (31.5 kph) and 3 mph
(4.8 kph). The closed center hydraulic system has a piston pump with a
rated capacity of 22 gpm (83.3 lpm).
The hydraulic system pressure is 180 bar (2600 psi). The Case IH 7140
Magnum tractor is equipped with a hydrostatic power steering,
differential hydraulic wet disc brakes, 14L-16.1 (2WD) or 14.9R28 (4WD)
front tyres, and 18.4R42 rear tyres. The wheelbase is 118.3 in (3000
mm).
| Engine Model |
Case-International 6TA-830 |
| Engine Type |
6-cylinder, turbocharged diesel |
| Number of Cylinders |
Six, vertical inline |
| Displacement, cu in (L) |
505 (8,3) |
| Engine Bore, in (mm) |
4,49 (114,0) |
| Engine Stroke, in (mm) |
5,32 (135,0) |
| Aspiration |
Turbocharged |
| Rated Engine Power, hp (kW) |
238,0 (176,2) |
| Rated Engine Speed, rpm |
2200 |
| Idle Speed, rpm |
825-2395 |
| Compression |
16.5:1 |
| Firing Order |
1-5-3-6-2-4 |
| Fuel Injection Pump |
Bosch PS6MW |
| Valve Clearance (Intake), in (mm) |
0,012 (0,305) |
| Valve Clearance (Exhaust), in (mm) |
0,024 (0,609) |
| Fuel Tank Capacity, gal (L) |
95,0 (359,0) |
| Oil Capacity, qts (L) |
22,0 (21,0) |
| Coolant Capacity, qts (L) |
31,0 (29,3) |
| Electrical System Rating, Volts |
12 |
| Alternator Rating, Amps |
110 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
195,0 (145,4) |
| PTO Clutch |
Wet disc |
| PTO Speeds, rpm |
1000 |
| PTO / Engine Speeds, rpm |
1000/2200 |
| Transmission Type |
Full power shift |
| Gearbox Type |
18F/2R |
| Number of Forward Gears |
18 |
| Number of Reverse Gears |
2 |
| Clutch Type |
Hydraulic wet disc |
| Maximum Speed (Forward), mph (kph) |
19,6 (31,5) |
| Maximum Speed (Reverse), mph (kph) |
3,0 (4,8) |
| Transmission Type |
Powershift with creeper |
| Gearbox Type |
24F/3R |
| Number of Forward Gears |
24 |
| Number of Reverse Gears |
3 |
| Clutch Type |
Hydraulic wet disc |
| Maximum Speed (Forward), mph (kph) |
19,6 (31,5) |
| Maximum Speed (Reverse), mph (kph) |
3,0 (4,8) |
| Maximum Forward Speed (Creeper), mph (kph) |
2,2 (3,5) |
| Maximum Reverse Speed (Creeper), mph (kph) |
0,8 (1,3) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic power |
| Service Brake |
Differential hydraulic wet disc |
| Front Tire Size (2WD) |
14L-16.1 |
| Rear Tire Size (2WD) |
18.4R42 |
| Front Tire Size (4WD) |
14.9R28 |
| Rear Tire Size (4WD) |
18.4R42 |
| Hydraulic System Type |
Closed center (PFC) |
| Implement Pump Flow, gpm (Lpm) |
22,0 (83,3) |
| Total Flow, gpm (Lpm) |
29,0 (110,0) |
| Hydraulic Pressure, Bar (psi) |
180 (2600) |
| Hydraulic Capacity, gal (L) |
50,5 (191,0) |
| Number of Standard Remote Valves |
2/4 |
| 3-Point Hitch Category |
3/3N |
| Draft Sensing or Lift Control |
Electronic lower link |
| Standard Lift Capacity 24-in behind pin, lb (kg) |
10200 (4630) |
| Wheelbase, in (mm) |
118,3 (3000) |
| Length (2WD), in (mm) |
191,4 (4860) |
| Length (4WD), in (mm) |
198,8 (5040) |
| Height (2WD), in (mm) |
119,3 (3030) |
| Height (4WD), in (mm) |
118,3 (3000) |
| Ground Clearance (2WD), in (mm) |
22,8 (570) |
| Ground Clearance (4WD), in (mm) |
17,6 (440) |
| Front Tread (2WD), in (mm) |
60-86 (1520-2180) |
| Front Tread (4WD), in (mm) |
60-95 (1520-2410) |
| Rear Tread, in (mm) |
60-127 (1520-3220) |
| Weight (2WD), lb (kg) |
16500 (7480) |
| Weight (4WD), lb (kg) |
17760 (8050) |
