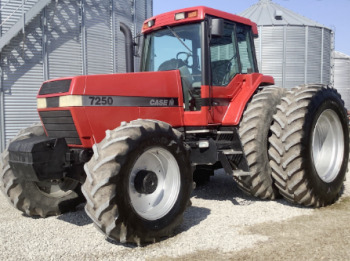

Case IH 7250 Magnum Specifications
The
Case IH 7250 is a 4WD (4x4) row-crop tractor from Magnum 7200-series. This model
was manufactured between 1994 and 1996. The components of Case IH Magnum 7250
powerline system: a 505 cubic inches (8.3 L) Case-International 6TA-830
6-cylinder turbocharged intercooled diesel engine with a rated power of 262.3 hp
(194.2 kW), and full powershift transmission with 18 forward and 4 reverse gears
or creeper transmission with 24 forward and 6 reverse gears.
The maximum travel speed (forward/reverse): 20.4 mph (32.8 km/h) and 7.4
mph (11.9 km/h). The closed center (PFC) hydraulic system includes a
piston pump with rated fluid flow of 22 gal/min (83.3 l/min). The
hydraulic pressure is 160 bar (2300 psi). The Case IH Magnum 7250 is
equipped with a hydrostatic power steering, differential hydraulic wet
disc brakes, 16.9x28 front tyres, and 20.8R38 rear tyres. The wheelbase
is 118.3 inches (3000 mm).
| Engine Model |
Case-International 6TA-830 |
| Engine Type |
Six-cylinder, turbocharged intercooled diesel |
| Number of Cylinders |
6, vertical inline |
| Displacement, cu in (L) |
504,5 (8,3) |
| Engine Bore, in (mm) |
4,49 (114,0) |
| Engine Stroke, in (mm) |
5,32 (135,0) |
| Aspiration |
Turbocharged |
| Rated Engine Power, hp (kW) |
262,3 (194,2) |
| Rated Engine Speed, rpm |
2200 |
| Idle Speed, rpm |
825-2395 |
| Compression |
16.5:1 |
| Firing Order |
1-5-3-6-2-4 |
| Fuel Injection Pump |
Bosch PS6MW |
| Valve Clearance (Intake), in (mm) |
0,012 (0,305) |
| Valve Clearance (Exhaust), in (mm) |
0,024 (0,609) |
| Fuel Tank Capacity, gal (L) |
95,0 (359,0) |
| Oil Capacity, qts (L) |
22,0 (21,0) |
| Coolant Capacity, qts (L) |
31,0 (29,3) |
| Electrical System Rating, Volts |
12 |
| Alternator Rating, Amps |
110 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
215,0 (160,3) |
| PTO Clutch |
Electro-hydraulic wet disc |
| PTO Speeds, rpm |
1000 |
| Transmission Type |
Full power shift |
| Gearbox Type |
18F/4R |
| Number of Forward Gears |
18 |
| Number of Reverse Gears |
4 |
| Clutch Type |
Hydraulic wet disc |
| Maximum Speed (Forward), mph (kph) |
20,4 (32,8) |
| Maximum Speed (Reverse), mph (kph) |
7,4 (11,9) |
| Transmission Type |
Powershift with creeper |
| Gearbox Type |
24F/6R |
| Number of Forward Gears |
24 |
| Number of Reverse Gears |
6 |
| Clutch Type |
Hydraulic wet disc |
| Maximum Speed (Forward), mph (kph) |
20,4 (32,8) |
| Maximum Speed (Reverse), mph (kph) |
7,4 (11,9) |
| Maximum Forward Speed (Creeper), mph (kph) |
2,2 (3,5) |
| Maximum Reverse Speed (Creeper), mph (kph) |
1,8 (2,9) |
| Drive Wheels |
4WD 4x4 |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic power |
| Service Brake |
Differential hydraulic wet disc |
| Front Tire Size |
16.9-28 |
| Rear Tire Size |
20.8R-38 |
| Hydraulic System Type |
Closed center pressure flow compensated (PFC) |
| Implement Pump Flow, gpm (Lpm) |
22,0 (83,3) |
| Total Flow, gpm (Lpm) |
29,0 (110,0) |
| Hydraulic Pressure, Bar (psi) |
160 (2300) |
| Hydraulic Capacity, gal (L) |
45,5 (173,0) |
| Number of Standard Remote Valves |
3/4 |
| 3-Point Hitch Category |
3 |
| Draft Sensing or Lift Control |
Electronic lower link draft sensing |
| Standard Lift Capacity, lb (kg) |
14950 (6785) |
| Wheelbase, in (mm) |
118,3 (3000) |
| Ground Clearance, in (mm) |
19,5 (490) |
| Front Tread, in (mm) |
60-95 (1520-2410) |
| Weight (Shipping), lb (kg) |
17450 (7930) |
| Weight (Operating), lb (kg) |
18140 (8330) |
