Case IH CX-100 Specifications
The

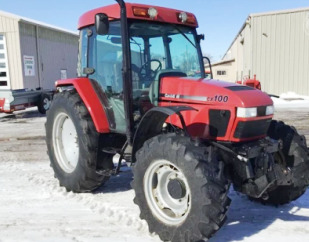

Case IH CX100 is a 2WD or 4WD tractor from CX utility series. This model was
manufactured between 1998 and 2002. The components of Case IH CX-100 powerline
system: a 244 cubic inches (4 L) Perkins 1004.40T 4-cylinder direct injection
turbocharged diesel engine with a rated power of 101 hp (74.6 kW), and synchro
shuttle transmission with 8 forward and 8 reverse gears or powershift
transmission with 16 forward and 8 reverse gears.
The maximum travel speed (forward/reverse): 24.4 mph (39.2 km/h) and
22.1 mph (35.5 km/h). The open center hydraulic system includes a gear
pump with rated fluid flow of 15.7 gal/min (59.4 l/min). The hydraulic
pressure is 173 bar (2500 psi).
The Case IH CX100 is equipped with a hydrostatic steering system,
differential hydraulic wet disc brakes, 7.50x16 (2WD) or 13.6R24 (4WD)
front tyres, and 16.9x34 (2WD) or 18.4R34 (4WD) rear tyres. The
wheelbase is 92.3" (2340 mm) for 2WD models and 93.7" (2370 mm) for 4WD
models.
| Engine Model |
Perkins 1004.40T |
| Engine Type |
4 stroke, direct injection, turbocharged diesel |
| Number of Cylinders |
4 |
| Displacement, cu in (L) |
244 (4,0) |
| Engine Bore, in (mm) |
3,93 (100,0) |
| Engine Stroke, in (mm) |
5,00 (127,0) |
| Aspiration |
Turbocharged |
| Maximum Engine Power, hp (kW) |
100,1 (74,6) |
| Rated Engine Power, hp (kW) |
94,0 (70,1) |
| Rated Engine Speed, rpm |
2200 |
| Maximum Torque, Nm (ft-lbs) |
405,0 (299,7) |
| Torque Speed, rpm |
1400 |
| Compression |
17.25:1 |
| Fuel System |
Direct injection |
| Fuel Tank Capacity, gal (L) |
41,3 (155,0) |
| Oil Capacity, qts (L) |
9,3 (8,8) |
| Coolant Capacity, qts (L) |
16,9 (16,0) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Alternator Rating, Amps |
65 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
83,0 (61,9) |
| PTO Speeds, rpm |
540/1000 |
| PTO Clutch |
Hydraulic wet disc |
| Transmission Type |
Synchro shuttle |
| Gearbox Type |
8F/8R |
| Number of Forward Gears |
8 |
| Number of Reverse Gears |
8 |
| Clutch Type |
Dry disc |
| Clutch Disc Diameter, in (mm) |
12 (300) |
| Oil Capacity (2WD), qts (L) |
36,4 (34,3) |
| Oil Capacity (4WD), qts (L) |
39,1 (37,0) |
| Maximum Forward Speed, mph (kph) |
19,8 (31,8) |
| Maximum Reverse Speed, mph (kph) |
18,1 (29,2) |
| Transmission Type |
Partial power shift |
| Gearbox Type |
16F/8R |
| Number of Forward Gears |
16 |
| Number of Reverse Gears |
8 |
| Clutch Type |
Dry disc |
| Clutch Disc Diameter, in (mm) |
12 (300) |
| Oil Capacity (2WD), qts (L) |
36,4 (34,3) |
| Oil Capacity (4WD), qts (L) |
39,1 (37,0) |
| Maximum Forward Speed, mph (kph) |
24,4 (39,2) |
| Maximum Reverse Speed, mph (kph) |
22,1 (35,5) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic power |
| Service Brake |
Differential hydraulic wet disc |
| Front Tire Size (2WD) |
7.50-16 |
| Rear Tire Size (2WD) |
16.9-34 |
| Front Tire Size (4WD) |
13.6R24 |
| Rear Tire Size (4WD) |
18.4R34 |
| Hydraulic System Type |
Open center |
| Implement Pump Flow, gpm (Lpm) |
15,7 (59,4) |
| Steering Pump Flow, gpm (Lpm) |
8,5 (32,2) |
| Total Flow, gpm (Lpm) |
24,2 (91,7) |
| Hydraulic Pressure, Bar (psi) |
173 (2500) |
| Hydraulic Capacity (2WD), qts (L) |
9,1 (34,4) |
| Hydraulic Capacity (4WD), qts (L) |
9,8 (37,1) |
| Number of Standard Remote Valves |
0/3 |
| 3-Point Hitch Category |
2/1 |
| Draft Sensing or Lift Control |
Electronic upper link |
| Standard Lift Capacity at lift pin, lb (kg) |
3665 (1660) |
| Optional Lift Capacity at lift pin, lb (kg) |
5100 (2310) |
| Wheelbase (2WD), in (mm) |
92,3 (2340) |
| Wheelbase (4WD), in (mm) |
93,7 (2370) |
| Length, in (mm) |
147 (3730) |
| Height, in (mm) |
107 (2720) |
| Turning Radius, in (mm) |
176 (4480) |
| Weight (2WD), lb (kg) |
7400 (3350) |
| Weight (4WD), lb (kg) |
8470 (3840) |
| Weight (Maximum), lb (kg) |
10150 (4600) |
