Case IH CX-60 Specifications

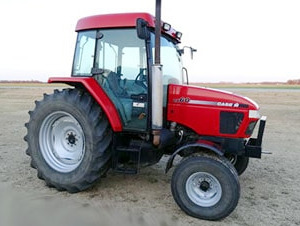

The Case IH CX60 utility tractor was manufactured between 1998 and 2002. The Case IH CX60 tractor is powered by 165 cu.in (2.7 L) Perkins 903.27T 3-cylinder turbocharged direct injection diesel engine with a rated power of 64 hp (47.7 kW).

The Case IH CX-60 is fitted with a 2 types of transmission. Type 1: Synchro shuttle transmission with 8 forward and 8 reverse gears. Type 2: Partial powershift transmission with 16 forward and 8 reverse gears. The maximum travel speed (forward/reverse): 24.4 mph (39.2 kph) and 22.1 mph (35.5 kph). The open center hydraulic system has a gear pump with a rated capacity of 13.7 gpm (51.9 lpm).

The hydraulic system pressure is 173 bar (2500 psi). The tractor is equipped with a hydrostatic power steering, differential hydraulic wet disc brakes, 7.50x16 (2WD) or 12.4R24 (4WD) front tyres, and 14.9-28 (2WD) or 18.4R30 (4WD) rear tyres. The wheelbase is 84.8" (2150 mm) for 2WD models and 87.2" (2210 mm) for 4WD models.

Engine
Engine Model Perkins 903.27T
Engine Type 4 stroke, turbocharged diesel
Number of Cylinders 3, vertical in-line
Displacement, cu in (L) 165 (2,70)
Engine Bore, in (mm) 3,74 (95,0)
Engine Stroke, in (mm) 5,00 (127,0)
Aspiration Turbocharged
Maximum Engine Power, hp (kW) 64,0 (47,7)
Rated Engine Power, hp (kW) 60,0 (44,7)
Rated Engine Speed, rpm 2250
Maximum Torque, Nm (ft-lbs) 244,1 (180,0)
Torque Speed, rpm 1400
Compression 17.25:1
Fuel System Direct injection
Fuel Tank Capacity, gal (L) 42,3 (159,0)
Oil Capacity, qts (L) 8,0 (7,6)
Coolant Capacity, qts (L) 12,6 (11,9)
Electrical System Rating, Volts 12
Charging System Alternator
Alternator Rating, Amps 65

Power Take-Off
PTO Operational Type Independent
PTO Horsepower, hp (kW) 50,0 (37,3)
PTO Speeds, rpm 540/1000
PTO Clutch Hydraulic wet disc

Standard Transmission
Transmission Type Synchro shuttle
Gearbox Type 8F/8R
Number of Forward Gears 8
Number of Reverse Gears 8
Clutch Type Dry disc
Clutch Disc Diameter, in (mm) 12 (300)
Oil Capacity (2WD), qts (L) 36,4 (34,3)
Oil Capacity (4WD), qts (L) 39,1 (37,0)
Maximum Forward Speed, mph (kph) 19,8 (31,8)
Maximum Reverse Speed, mph (kph) 18,1 (29,2)

Optional Transmission
Transmission Type Partial power shift
Gearbox Type 16F/8R (24F/12R with creeper)
Number of Forward Gears 16 (24)
Number of Reverse Gears 8 (12)
Clutch Type Dry disc
Clutch Disc Diameter, in (mm) 12 (300)
Oil Capacity (2WD), qts (L) 36,4 (34,3)
Oil Capacity (4WD), qts (L) 39,1 (37,0)
Maximum Forward Speed, mph (kph) 24,4 (39,2)
Maximum Reverse Speed, mph (kph) 22,1 (35,5)

Wheels and Tires
Drive Wheels 2WD/4WD
Steering Configuration Front Steer
Steering System Hydrostatic power
Service Brake Differential hydraulic wet disc
Front Tire Size (2WD) 7.50-16
Rear Tire Size (2WD) 14.9-28
Front Tire Size (4WD) 12.4R24
Rear Tire Size (4WD) 18.4R30

Hydraulic System
Hydraulic System Type Open center
Implement Pump Flow, gpm (Lpm) 13,7 (51,9)
Steering Pump Flow, gpm (Lpm) 8,5 (32,2)
Total Flow, gpm (Lpm) 22,2 (84,0)
Hydraulic Pressure, Bar (psi) 173 (2500)
Hydraulic Capacity (2WD), qts (L) 9,1 (34,4)
Hydraulic Capacity (4WD), qts (L) 9,8 (37,1)
Number of Standard Remote Valves 0/3
3-Point Hitch Category 2/1
Draft Sensing or Lift Control Electronic upper link
Standard Lift Capacity at lift pin, lb (kg) 3665 (1660)
Optional Lift Capacity at lift pin, lb (kg) 5100 (2310)

Dimensions and Weight
Wheelbase (2WD), in (mm) 84,8 (2150)
Wheelbase (4WD), in (mm) 87,2 (2210)
Length, in (mm) 141 (3590)
Height, in (mm) 107 (2720)
Turning Radius, in (mm) 167 (4240)
Weight (2WD), lb (kg) 7290 (3310)
Weight (4WD), lb (kg) 7970 (3620)
