Case IH CX-80 Specifications
The

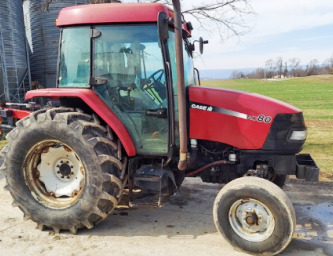

Case IH CX80 is a 2WD or 4WD tractor from CX utility series. This model was
manufactured from 1998 to 2002. The Case IH CX-80 tractor is powered by 243.5
cu.in (4 L) Perkins 1004.40T 4-cylinder turbocharged diesel engine with a rated
power of 84 hp (62.6 kW).
The tractor is fitted with a three types of transmission. Type 1: 8x8
synchro-shuttle transmission. Type 2: 16x8 powershift transmission. Type
3: 24x12 powershift transmission with creeper. The maximum forward speed
- 24.4 mph (39.2 kph), maximum reverse speed - 22.1 mph (35.5 kph).
The open center hydraulic system includes a gear pump with rated fluid
flow of 15.7 gal/min (59.4 l/min). The system relief pressure is 173 bar
(2500 psi). The two-wheel drive models are equipped with 7.50x16 front
tyres and 16.9-30 rear tyres. The 13.6R24 front tyres and 18.4R34 rear
tyres fit four-wheel drive tractors. The Case IH CX80 tractor can be
equipped with the following attachments: Case IH 2255 loader with lift
capacity to full height of 2500 lbs (1134 kg) and breakout force of 4000
lbs (1814 kg).
| Engine Model |
Perkins 1004.40T |
| Engine Type |
4 stroke, turbocharged diesel |
| Number of Cylinders |
4 |
| Displacement, cu in (L) |
243,5 (4,00) |
| Engine Bore, in (mm) |
3,93 (100,0) |
| Engine Stroke, in (mm) |
5,00 (127,0) |
| Aspiration |
Turbocharged |
| Maximum Engine Power, hp (kW) |
84,0 (62,6) |
| Rated Engine Power, hp (kW) |
78,0 (58,2) |
| Rated Engine Speed, rpm |
2200 |
| Maximum Torque, Nm (ft-lbs) |
343,0 (253,1) |
| Torque Speed, rpm |
1400 |
| Compression |
17.25:1 |
| Fuel System |
Direct injection |
| Fuel Tank Capacity, gal (L) |
42,3 (159,0) |
| Oil Capacity, qts (L) |
9,3 (8,8) |
| Coolant Capacity, qts (L) |
16,9 (16,0) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Alternator Rating, Amps |
65 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
67,1 (50,0) |
| PTO Speeds, rpm |
540/1000 |
| PTO Clutch |
Hydraulic wet disc |
| Transmission Type |
Synchro shuttle |
| Gearbox Type |
8F/8R |
| Number of Forward Gears |
8 |
| Number of Reverse Gears |
8 |
| Clutch Type |
Dry disc |
| Clutch Disc Diameter, in (mm) |
12 (300) |
| Oil Capacity (2WD), qts (L) |
36,4 (34,3) |
| Oil Capacity (4WD), qts (L) |
39,1 (37,0) |
| Maximum Forward Speed, mph (kph) |
19,8 (31,8) |
| Maximum Reverse Speed, mph (kph) |
18,1 (29,2) |
| Transmission Type |
Partial power shift |
| Gearbox Type |
16F/8R |
| Number of Forward Gears |
16 |
| Number of Reverse Gears |
8 |
| Clutch Type |
Dry disc |
| Clutch Disc Diameter, in (mm) |
12 (300) |
| Oil Capacity (2WD), qts (L) |
36,4 (34,3) |
| Oil Capacity (4WD), qts (L) |
39,1 (37,0) |
| Maximum Forward Speed, mph (kph) |
24,4 (39,2) |
| Maximum Reverse Speed, mph (kph) |
22,1 (35,5) |
| Transmission Type |
Power shift with creeper |
| Gearbox Type |
24F/12R |
| Number of Forward Gears |
24 |
| Number of Reverse Gears |
12 |
| Clutch Type |
Dry disc |
| Oil Capacity (2WD), qts (L) |
36,4 (34,3) |
| Oil Capacity (4WD), qts (L) |
39,1 (37,0) |
| Maximum Forward Speed, mph (kph) |
24,4 (39,2) |
| Maximum Reverse Speed, mph (kph) |
22,1 (35,5) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic power |
| Service Brake |
Differential hydraulic wet disc |
| Front Tire Size (2WD) |
7.50-16 |
| Rear Tire Size (2WD) |
16.9-30 |
| Front Tire Size (4WD) |
13.6R24 |
| Rear Tire Size (4WD) |
18.4R34 |
| Hydraulic System Type |
Open center |
| Implement Pump Flow, gpm (Lpm) |
15,7 (59,4) |
| Steering Pump Flow, gpm (Lpm) |
8,5 (32,2) |
| Total Flow, gpm (Lpm) |
24,2 (91,7) |
| Hydraulic Pressure, Bar (psi) |
173 (2500) |
| Hydraulic Capacity (2WD), qts (L) |
9,1 (34,4) |
| Hydraulic Capacity (4WD), qts (L) |
9,8 (37,1) |
| Number of Standard Remote Valves |
0/3 |
| 3-Point Hitch Category |
2/1 |
| Draft Sensing or Lift Control |
Electronic upper link |
| Standard Lift Capacity at lift pin, lb (kg) |
3665 (1660) |
| Optional Lift Capacity at lift pin, lb (kg) |
5100 (2310) |
| Wheelbase (2WD), in (mm) |
89,1 (2260) |
| Wheelbase (4WD), in (mm) |
92,7 (2350) |
| Length, in (mm) |
147 (3730) |
| Height, in (mm) |
107 (2720) |
| Turning Radius, in (mm) |
176 (4480) |
| Weight (2WD), lb (kg) |
7400 (3350) |
| Weight (4WD), lb (kg) |
8470 (3840) |
