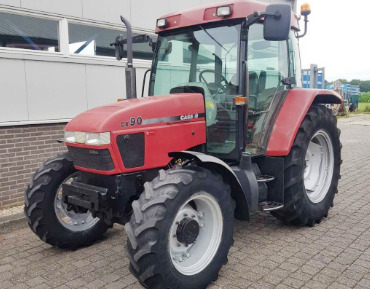

Case IH CX-90 Specifications
The
Case IH CX90 tractor was manufactured between 1998 and 2002. The Case IH CX90
tractor is powered by Perkins 1004.40T 4-cylinder direct injection turbocharged
diesel engine. A 243.5 cubic inches (4 L) engine has a cylinder bore of 3.93"
(100 mm), piston stroke of 5.00" (127 mm), and rated power of 84 hp (62.6 kW).
The Case IH CX90 is fitted with a 3 transmission options: 8x8
synchro-shuttle transmission, 16x8 powershift transmission, or 24x12
powershift transmission with creeper. The maximum forward speed - 24.4
mph (39.2 km/h), maximum reverse speed - 22.1 mph (35.5 km/h). The open
center hydraulic system includes a gear pump with rated fluid flow of
15.7 gal/min (59.4 l/min). The main relief pressure is 173 bar (2500
psi).
The tractor is equipped with a hydrostatic power steering, differential
hydraulic wet disc brakes, 7.50x16 (2WD) or 12.4R24 (4WD) front tyres,
and 16.9-30 (2WD) or 16.9R34 (4WD) rear tyres. The wheelbase is 92.3"
(2340 mm) for 2-wheel drive tractors and 93.7" (2370 mm) for 4-wheel
drive tractors.
| Engine Model |
Perkins 1004.40T |
| Engine Type |
4 stroke, turbocharged diesel |
| Number of Cylinders |
4 |
| Displacement, cu in (L) |
243,5 (4,00) |
| Engine Bore, in (mm) |
3,93 (100,0) |
| Engine Stroke, in (mm) |
5,00 (127,0) |
| Aspiration |
Turbocharged |
| Maximum Engine Power, hp (kW) |
90,0 (67,1) |
| Rated Engine Power, hp (kW) |
84,0 (62,6) |
| Rated Engine Speed, rpm |
2200 |
| Maximum Torque, Nm (ft-lbs) |
358,0 (264,0) |
| Torque Speed, rpm |
1400 |
| Compression |
17.25:1 |
| Fuel System |
Direct injection |
| Fuel Tank Capacity, gal (L) |
42,3 (159,0) |
| Oil Capacity, qts (L) |
9,3 (8,8) |
| Coolant Capacity, qts (L) |
16,9 (16,0) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Alternator Rating, Amps |
65 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
74,0 (55,2) |
| PTO Speeds, rpm |
540/1000 |
| PTO Clutch |
Hydraulic wet disc |
| Transmission Type |
Synchro shuttle |
| Gearbox Type |
8F/8R |
| Number of Forward Gears |
8 |
| Number of Reverse Gears |
8 |
| Clutch Type |
Dry disc |
| Clutch Disc Diameter, in (mm) |
12 (300) |
| Oil Capacity (2WD), qts (L) |
36,4 (34,3) |
| Oil Capacity (4WD), qts (L) |
39,1 (37,0) |
| Maximum Forward Speed, mph (kph) |
19,8 (31,8) |
| Maximum Reverse Speed, mph (kph) |
18,1 (29,2) |
| Transmission Type |
Partial power shift |
| Gearbox Type |
16F/8R |
| Number of Forward Gears |
16 |
| Number of Reverse Gears |
8 |
| Clutch Type |
Dry disc |
| Clutch Disc Diameter, in (mm) |
12 (300) |
| Oil Capacity (2WD), qts (L) |
36,4 (34,3) |
| Oil Capacity (4WD), qts (L) |
39,1 (37,0) |
| Maximum Forward Speed, mph (kph) |
24,4 (39,2) |
| Maximum Reverse Speed, mph (kph) |
22,1 (35,5) |
| Transmission Type |
Power shift with creeper |
| Gearbox Type |
24F/12R |
| Number of Forward Gears |
24 |
| Number of Reverse Gears |
12 |
| Clutch Type |
Dry disc |
| Oil Capacity (2WD), qts (L) |
36,4 (34,3) |
| Oil Capacity (4WD), qts (L) |
39,1 (37,0) |
| Maximum Forward Speed, mph (kph) |
24,4 (39,2) |
| Maximum Reverse Speed, mph (kph) |
22,1 (35,5) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic power |
| Service Brake |
Differential hydraulic wet disc |
| Front Tire Size (2WD) |
7.50-16 |
| Rear Tire Size (2WD) |
16.9-30 |
| Front Tire Size (4WD) |
12.4R24 |
| Rear Tire Size (4WD) |
16.9R34 |
| Hydraulic System Type |
Open center |
| Implement Pump Flow, gpm (Lpm) |
15,7 (59,4) |
| Steering Pump Flow, gpm (Lpm) |
8,5 (32,2) |
| Total Flow, gpm (Lpm) |
24,2 (91,7) |
| Hydraulic Pressure, Bar (psi) |
173 (2500) |
| Hydraulic Capacity (2WD), qts (L) |
9,1 (34,4) |
| Hydraulic Capacity (4WD), qts (L) |
9,8 (37,1) |
| Number of Standard Remote Valves |
0/3 |
| 3-Point Hitch Category |
2/1 |
| Draft Sensing or Lift Control |
Electronic upper link |
| Standard Lift Capacity at lift pin, lb (kg) |
3665 (1660) |
| Optional Lift Capacity at lift pin, lb (kg) |
5100 (2310) |
| Wheelbase (2WD), in (mm) |
92,3 (2340) |
| Wheelbase (4WD), in (mm) |
93,7 (2370) |
| Length, in (mm) |
147 (3730) |
| Height, in (mm) |
107 (2720) |
| Turning Radius, in (mm) |
176 (4480) |
| Weight (2WD), lb (kg) |
7400 (3350) |
| Weight (4WD), lb (kg) |
8470 (3840) |
| Weight (Operating), lb (kg) |
8170 (3700) |
