Case IH JX-75 Specifications
The

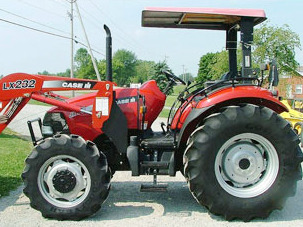

Case IH JX75 is a 2WD or 4WD utility tractor. This model was manufactured by
Turk Tractor built from 2002 to 2006. The Case IH JX-75 tractor is powered by
239 cu.in (3.9 L) Iveco 8045 4-cylinder direct injection diesel engine with a
rated power of 72 hp (53.7 kW).
The Case IH JX75 is fitted with a two transmission options: mechanical
shuttle transmission with 12 forward and 12 reverse gears, or creeper
transmission with 20 forward and 12 reverse gears. The maximum travel
speed (forward/reverse): 17.5 mph (28.2 km/h) and 17.6 mph (28.3km/h).
The open center hydraulic system has a gear pump with a rated capacity
of 13.6 gpm (51.5 lpm). The lift capacity is 5025 lbs (2280 kg) at lift
pin. The 2WD models are equipped with 11.2R24 front tires and 16.9R30
rear tires. The 280/85R28 front tires and 380/85R38 rear tires are used
for 4WD tractors. The wheelbase is 88.5 inches (2240 mm).
| Engine Model |
Iveco 8045 |
| Engine Type |
4 stroke, direct injection diesel |
| Number of Cylinders |
4, In-line |
| Displacement, cu in (L) |
239,0 (3,9) |
| Engine Bore, in (mm) |
4,09 (104,0) |
| Engine Stroke, in (mm) |
4,53 (115,0) |
| Rated Engine Power, hp (kW) |
72,0 (53,7) |
| Rated Engine Speed, rpm |
2500 |
| Aspiration |
Naturally aspirated |
| Compression |
18.0:1 |
| Fuel System |
Direct injection |
| Injection Pump Type |
Distributor |
| Direction of Rotation |
Anti-clockwise |
| Air Cleaner |
Paper element |
| Fuel Tank Capacity, gal (L) |
24,3 (92,0) |
| Electrical System Rating, Volts |
12 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
62,0 (46,2) |
| PTO Speeds, rpm |
540/540E |
| PTO Speeds, rpm |
540/1000 |
| Transmission Type |
Mechanical Shuttle |
| Gearbox Type |
12F/12R |
| Number of Forward Gears |
12 |
| Number of Reverse Gears |
12 |
| Clutch Type |
Dry disc |
| Maximum Speed (Forward), mph (kph) |
17,5 (28,2) |
| Maximum Speed (Reverse), mph (kph) |
17,6 (28,3) |
| Transmission Type |
Creeper |
| Gearbox Type |
20F/12R |
| Number of Forward Gears |
20 |
| Number of Reverse Gears |
12 |
| Clutch Type |
Dry disc |
| Maximum Speed (Forward), mph (kph) |
17,5 (28,2) |
| Maximum Speed (Reverse), mph (kph) |
17,6 (28,3) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic power |
| Service Brake |
Independent wet disc |
| Front Tire Size |
280/85R28 |
| Rear Tire Size |
380/85R38 |
| Hydraulic System Type |
Open center |
| Implement Pump Flow, gpm (Lpm) |
13,6 (51,5) |
| Steering Pump Flow, gpm (Lpm) |
8,1 (30,7) |
| Total Flow, gpm (Lpm) |
21,7 (82,2) |
| Number of Standard Remote Valves |
3 |
| 3-Point Hitch Category |
2 |
| Draft Sensing or Lift Control |
Mechanical lower-link draft sensing |
| Standard Lift Capacity at lift pin, lb (kg) |
5025 (2280) |
| Wheelbase, in (mm) |
88,5 (2240) |
| Length, in (mm) |
161,7 (4100) |
| Height, in (mm) |
100,3 (2540) |
| Weight (2WD), lb (kg) |
6205 (2815) |
| Weight (4WD), lb (kg) |
6775 (3070) |
