Case IH JX 80 Troubleshooting
The

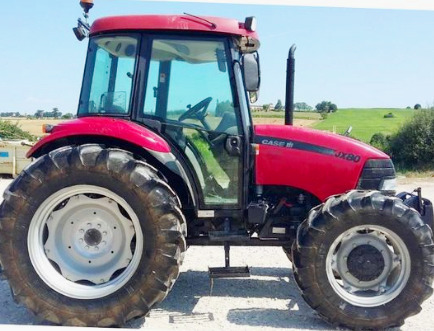

Case IH JX80 utility tractor was manufactured from 2007 to 2008. The Case IH
JX80 driveline system components: Iveco 8045 4 stroke 4-cylinder direct
injection liquid-cooled diesel engine and 12x4 synchronized gear transmission,
or 20x12 mechanical shuttle transmission with creeper.
A 239 cubic inches (3.9 L) engine has a cylinder bore of 4.09" (104 mm), piston stroke of 4.53" (115 mm), rated power of 72 hp (53.7 kW), and maximum torque of 279 Nm (205.8 lb-ft) at 1500 rpm. The maximum forward speed - 24.8 mph (40 kph).
The open center hydraulic system includes a gear pump with a rated capacity of 10.6 gal/min (40.1 l/min) or 13.6 gal/min (51.5 l/min). The main relief pressure is 190 bar (2755 psi). The Case IH JX-80 tractor is fitted with 13.6R24 front tires and 16.9R34 rear tires. The wheel base is 91" (2310 mm) for models with 2WD and 87" (2200 mm) for models with 4WD.
| Engine Troubleshooting |
| Engine hard to start or won't start |
There is air in the fuel system - Bleed the system.
Dirty fuel filter - Replace filter element.
Faulty or dirty injection nozzles - Service or change injection nozzles.
Water in the fuel system - Change fuel and repair fuel system.
Valve clearance is wrong - Check and adjust as required.
Fuel injection pump malfunctioning - Rebuild or install a new injection pump.
| Diesel starts but immediately stops |
Air filter clogged - Install new air filter element.
Fuel filter element is clogged - Clean or change the filter.
Fuel injection pump has loose connections - Tighten the connections.
Clogged or defective injectors - Change or clean fuel injectors.
Faulty fuel injection pump - Install a new pump or rebuild.
| Diesel shuts off while driving |
Engine not warmed up - Warm up engine as required.
Fuel filter plugging - Replace filter element.
Air in fuel system - Bleed fuel system.
Fuel injection nozzles are damaged - If necessary, replace with a new nozzle.
Incorrect adjustment of fuel injection pump timing - Set up as recommended.
| Engine stops at idle |
Low idle speed setting is not correct - Adjustment required.
Defective fuel injection pump - Replace injection pump or repair it.
Defective fuel injectors - Clean fuel injectors or change it.
Improper valve clearance - Adjust valve clearance.
| Engine lacks power |
Air filter element clogged - Install new air filter element.
Clogged or burnt injection nozzle - Replace injection nozzles.
Incorrect fuel injection pressure - Test fuel injection pressure and adjust it correctly.
The valve clearance is incorrect - Have it adjusted.
Low idle speed setting is not correct - Adjust low idle speed.
Fuel hoses or lines are clogged - Clean fuel system lines and hoses.
Blown cylinder head gasket - Change cylinder head gasket.
Piston rings are broken or leaking - Change piston rings.
| Engine overheating |
Not enough coolant - Add coolant fluid and inspect the cooling system for leaks.
Not enough engine oil - Check and refill engine oil.
Faulty radiator cap or dirty radiator fins - Clean radiator or change cap.
Loose or defective fan belt - Replace as required.
Diesel engine overloaded - Reduce load or shift to lower gear.
| Oil pressure is low |
Not enough oil in the engine - Check oil level and add oil as required.
Oil filter clogging - Service or change engine oil filter element.
Different type of engine oil - Use correct viscosity oil.
Excessive oil clearance of crankshaft bearing - Install new bearings.
Oil pump is defective - Inspect and change as required.
| Engine knocks or noises |
Insufficient engine oil - Checking oil level and add if necessary.
Engine is not preheated - Normalize the temperature by warming up the engine.
Timing of fuel injection pump is incorrect - Use the correct fuel injection pump timing adjustment.
Improperly adjusted low idle speed - Normalize low idle speed.
Defective fuel injectors - Replace fuel injectors.
Connecting rod is worn or misaligned - Need to replace or align the connecting rod.
Pistons are worn or scored - Replace the pistons.
| Transmission Troubleshooting |
| Low transmission fluid pressure |
Low fluid level - Need to add transmission fluid.
Transmission fluid filter element clogging (if equipped) - Service or change transmission fluid filter.
Relief valve malfunction - Install a new valve.
| Transmission is excessively noisy |
Transmission oil insufficient - Add oil to the transmission housing.
Transmission fluid contamination - Change the fluid.
Gears are defective or backlash is improper - Install new gears and adjust backlash properly.
Bearings are damaged or worn - Replace faulty bearings.
Worn or bent gear shift forks - Change defective shift forks.
Damaged or worn shaft splines - Change the shaft.
| Hard shifts |
Gear shift linkage is corroded or worn - Replace or lubricate the shift linkage.
Shift forks are worn or bent - Change defective shift forks.
Defective parts in the gearshift mechanism - Replace defective parts.
Unadjusted or worn clutch - Clutch needs to be adjusted or changed.
| Transmission oil leaks |
Transmission fluid level is exceeded - Excess fluid must be drained.
Damaged gaskets or seals - Install new components.
| Hydraulics Troubleshooting |
| Low hydraulic system pressure |
Hydraulic fluid is insufficient - Checking hydraulic fluid level and add if necessary.
Dirty hydraulic fluid filter element - Hydraulic filter maintenance required.
Defective hydraulic pump - Replace or repair hydraulic oil pump.
Hydraulic control valve is set improperly - The control valve must be set correctly.
Defective hydraulic cylinder - Change or repair hydraulic cylinder.
Leaks in hydraulic pipes - Identify leaks in the system and repair it.
| Hydraulic system is overheated |
Main relief valve failure - Relief valve replacement required.
Wrong hydraulic fluid type - Pour the proper type of fluid.
Hydraulic fluid is contaminated - Fill up with new hydraulic fluid.
Air in hydraulic pipes - Bleed hydraulic pipes.
| 3-point hitch fails to lift or lifts slowly |
Hitch is under excessive load - Reduce the load is required.
Low hydraulic fluid level - Checking hydraulic fluid level and add if necessary.
Hydraulic oil filter is clogged - Service or replace the hydraulic filter.
Hydraulic pump is faulty - Install a new hydraulic oil pump.
Main relief valve is faulty - Replace relief valve.
Hydraulic control valve is faulty - Install a new valve or repair it.
Broken hydraulic cylinder - Change or repair hydraulic cylinder.
Loose or broken suction pipe - Retighten or replace pipe.
| Hitch cannot be lowered or lowering is too slowly |
Incorrect setting hydraulic control valve - Use the correct adjustment.
Hydraulic cylinder is faulty - Replace or repair hydraulic cylinder.
Misadjusted hitch - Adjust three-point hitch as required.
Worn hitch rock shaft - Install a new shaft.
| Jerky lowering or lifting of the hitch |
Air in hydraulic lines - Bleed hydraulic lines.
Hydraulic fluid contamination - Change hydraulic fluid.
Damaged hydraulic pump - Replace or repair hydraulic oil pump.
Damaged hydraulic control valve - Repair or change the valve.
Damaged hydraulic cylinder - Install a new hydraulic cylinder or repair it.
| Steering System Troubleshooting |
| Steering wheel is difficult to turn |
Incorrectly mounted or defective steering column - Mount the steering column correctly or replace it.
Air lock in hydraulic steering system - Need to bleed air.
Not adjusted toe-in - Check toe-in and correct.
Uneven wear on front tires - Replace the tires.
Steering pump malfunction - Steering pump needs to be replaced or repaired.
Stuck or worn pump flow control valve - Flush or change flow control valve.
Low steering oil level - Fill up the steering oil.
| Excessive steering wheel free play |
Worn steering column shaft or coupling - Replace defective component.
Steering pump not working - Install a new steering pump.
Loose or worn steering linkage parts - Check and change as required.
| Tractor pulls to left or right |
Uneven tire pressure - Inflate the tires properly.
Improper toe-in - Adjust toe-in wheels.
Loose or worn steering linkage components - Repair or change steering linkage.
Damaged or improperly adjusted or worn front wheel bearings - Change or adjust bearings correctly.
| Electrical Troubleshooting |
| Battery is not charging |
Corroded or loose cable connections - Service or tighten cable connections.
Faulty battery terminal clamps - Install new terminal clamps.
Worn-out battery - Change the battery.
Worn or loose belt - Adjust belt tension or replace belt.
| Starter motor cranks slow |
Low battery output voltage - Recharge the battery.
Battery drains quickly - Service battery or change it.
Corroded battery terminals or disconnected wires - Check cables and service or change terminals.
| Starter is not working |
Battery is low or faulty - Charge or replace the battery.
Wiring is improperly connected or disconnected - Check wiring and connect properly.
Low battery power - Charge the battery.
Defective starter motor - Repair or replace starter.
