Case IH MX-100 Specifications
The

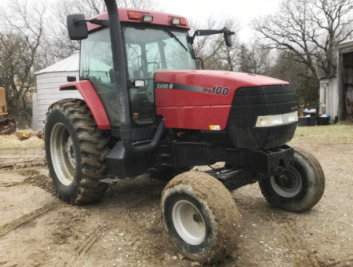

Case IH MX100 is a 2WD or 4WD farm tractor from Maxxum series. This model was
manufactured between 1997 and 1999. The components of Case IH MX-100 powerline
system: a 359 cubic inches (5.9 L) Cummins B6T-590 6-cylinder direct injection
turbocharged diesel engine with a rated power of 100 hp (74.6 kW), and
powershift transmission with 16 forward and 12 reverse gears, or creeper
transmission with 32 forward and 24 reverse gears.
The maximum travel speed (forward/reverse): 23 mph (37 km/h) and 13.7
mph (22 km/h). The closed center pressure flow compensated hydraulic
system includes a pump with rated fluid flow of 25 gal/min (94.6 l/min).
The hydraulic pressure is 203 bar (2950 psi). The Case IH MX100 Maxxum
is equipped with a hydrostatic power steering, wet disc brakes, 14.9x28
front tyres, and 18.4x38 rear tyres. The tractor is compatible with Case
IH L300 front loader with lift capacity to max height of 2450 lbs (1111
kg) and breakout force of 3150 lbs (1428 kg).
| Engine Model |
Cummins B6T-590 |
| Engine Type |
4-stroke, direct injection, turbocharged diesel |
| Number of Cylinders |
6 |
| Displacement, cu in (L) |
359 (5,90) |
| Engine Bore, in (mm) |
4,02 (102,0) |
| Engine Stroke, in (mm) |
4,72 (120,0) |
| Aspiration |
Turbocharged |
| Rated Engine Power, hp (kW) |
100,0 (74,6) |
| Rated Engine Speed, rpm |
2200 |
| Maximum Torque, Nm (ft-lbs) |
460 (340,4) |
| Torque Speed, rpm |
1000 |
| Compression |
17.5:1 |
| Fuel System |
Direct injection |
| Governor |
Mechanical |
| Fuel Tank Capacity, gal (L) |
72,0 (273,0) |
| Oil Capacity, qts (L) |
15,8 (15,0) |
| Coolant Capacity, qts (L) |
19,5 (18,6) |
| Electrical System Rating, Volts |
12 |
| Alternator Rating, Amps |
65 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
85,0 (63,4) |
| PTO Speeds, rpm |
540/1000 |
| Transmission Type |
Power shift |
| Gearbox Type |
16F/12R, Partial powershift |
| Number of Forward Gears |
16 |
| Number of Reverse Gears |
12 |
| Clutch Type |
Wet disc |
| Maximum Forward Speed, mph (kph) |
23,0 (37,0) |
| Maximum Reverse Speed, mph (kph) |
13,7 (22,0) |
| Transmission Type |
Powershift with creeper |
| Gearbox Type |
32F/24R, Partial powershift with creeper |
| Number of Forward Gears |
32 |
| Number of Reverse Gears |
24 |
| Clutch Type |
Wet disc |
| Maximum Forward Speed, mph (kph) |
23,0 (37,0) |
| Maximum Reverse Speed, mph (kph) |
13,7 (22,0) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic power |
| Service Brake |
Wet disc |
| Front Tire Size |
14.9-28 |
| Rear Tire Size |
18.4-38 |
| Hydraulic System Type |
PFC (Closed center pressure flow compensated) |
| Implement Pump Flow, gpm (Lpm) |
25,0 (94,6) |
| Hydraulic Pressure, Bar (psi) |
203 (2950) |
| Hydraulic Capacity, gal (L) |
17,5 (66,2) |
| Number of Standard Remote Valves |
2/4 |
| 3-Point Hitch Category |
2/3N |
| Draft Sensing or Lift Control |
Electronic lower-link |
| Standard Lift Capacity 24-in behind pin, lb (kg) |
8390 (3810) |
| Standard Lift Capacity at lift pin, lb (kg) |
12900 (5870) |
| Wheelbase (2WD), in (mm) |
110,7 (2810) |
| Wheelbase (4WD), in (mm) |
106,3 (2700) |
| Length, in (mm) |
197,7 (5020) |
| Height, in (mm) |
114,7 (2910) |
| Ground Clearance (2WD), in (mm) |
23,8 (600) |
| Ground Clearance (4WD), in (mm) |
24,6 (620) |
| Front Tread, in (mm) |
60-88 (1520-2230) |
| Rear Tread, in (mm) |
60-88 (1520-2230) |
| Turning Radius, in (mm) |
183 (4650) |
| Weight (2WD), lb (kg) |
11300 (5130) |
| Weight (4WD), lb (kg) |
12460 (5650) |
