Ford 1620 Tractor Maintenance
The

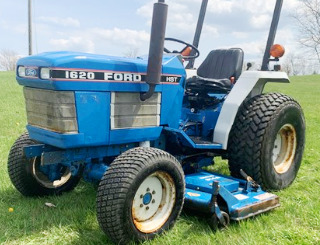

Ford 1620 is a 2-wheel drive or 4-wheel drive compact utility tractor from
Twenty compact series. This model was manufactured by Shibaura built between
1992 and 1997.
The Ford 1620 tractor is equipped with Shibaura J843 three-cylinder
liquid cooled diesel engine with a rated power of 27.3 hp (20.4 kW), and
3-range hydrostatic transmission with infinite forward and reverse
gears. Max. forward speed - 12.8 mph (20.6 km/h), maximum reverse speed
- 6.2 mph (10 km/h). The open center hydraulic system includes a gear
pump with rated fluid flow of 7.1 gpm (26.8 lpm).
The hydraulic pressure is 147 bar (2130 psi). The 2WD models are
equipped with 5.00x15 front tires and 9.50x24 rear tires. The 6.00x15
front tires and 9.50x24 rear tires are used for 4WD tractors. The
wheelbase is 63 inches (1600 mm). Compatible attachments for the Ford
1620: a 60" mid-mount mower deck, 78" front blade, 63" front-mount
snowblower, Ford 7108 loader with lift capacity to full height of 900
lbs (408 kg), and Ford 757B backhoe.
| Engine oil capacity, qts (L) |
4.8 (4.5) |
| Engine coolant capacity, qts (L) |
5.3 (5.0) |
| Transmission/Hydraulic system capacity, gal (L) |
5.8 (22.0) |
| Front axle oil capacity, qts (L) |
3.2 (3.0) |
| Steering oil capacity, qts (L) |
1.9 (1.8) |
| Recommended Oil and Fluid |
| Engine oil type |
SAE 15W-40, 10W-30, SAE 10W |
| Engine coolant type |
Antifreeze/Coolant |
| Transmission/Hydraulic fluid type |
134D, ATF Dexron II-D |
| Front axle oil type |
134D, Gearlube 80W-90 |
| Steering oil type |
134D, Gearlube LS |
| Check engine oil level |
Every 10 hours |
| Check the hydraulic/transmission fluid level |
Every 10 hours |
| Check engine air filter |
Every 10 hours |
| Check coolant level in radiator |
Every 10 hours |
| Check battery and clean terminals |
Every 50 hours |
| Check front axle oil |
Every 50 hours |
| Inspect and adjust alternator belt |
Every 50 hours |
| Lubricate axle hub bearings |
Every 50 hours |
| Change engine oil |
Every 100 hours |
| Clean engine air filter |
Every 100 hours |
| Clean engine fuel filter |
Every 100 hours |
| Replace engine oil filter |
Every 200 hours |
| Replace engine fuel filter |
Every 200 hours |
| Adjust parking and service brakes |
Every 200 hours |
| Change hydraulic/transmission fluid |
Every 300 hours |
| Change front axle lubricant |
Every 300 hours |
| Replace hydraulic oil filter |
Every 300 hours |
| Change steering oil |
Every 300 hours |
| Replace engine air filter |
Every 500 hours |
| Check and adjust engine idling |
Every 500 hours |
| Check and adjust valve clearance |
Every 500 hours |
| Flush cooling system and add new coolant |
Every 1000 hours |
| Engine oil filter part number |
84475542 |
| Engine fuel filter part number |
87300039, SBA360720020 |
| Engine air filter part number |
84541251 |
| Hydraulic oil filter part number |
9846407, SBA340500370 |
