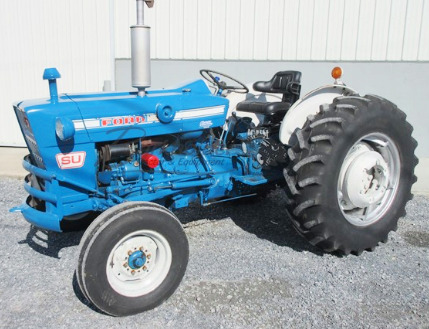

Ford 4000SU Tractor
The
Ford 4000SU is a two-wheel drive special utility tractor. This model was
manufactured between 1970 and 1976. The Ford 4000 SU tractor is equipped with a
Ford 3-cylinder water cooled diesel engine with a rated power of 57 hp (42.5
kW), or vertical 3-cylinder gasoline engine with a rated power of 56 hp (41.5
kW).
The Dual-Range transmission consists of a dry clutch and gearbox with 8
forward and 2 reverse gears. Max. travel speed (forward/reverse): 15 mph
(24.1 km/h) and 7.2 mph (11.6 km/h). The open center hydraulic system
used a gear pump with a flow rate of 5.4 gal/min (20.8 l/min).
The hydraulic pressure is 173 bar (2500 psi). The Ford 4000SU was
equipped with a power steering system, wet dics brakes, 7.50x15 or
7.50x16 front tires, and 14.9x28 or 16.9x24 rear tires. The wheel base
is 77.3 inches (1960 mm).
| Engine Model |
Ford |
| Engine Type |
Vertical 3-cylinder water cooled diesel |
| Number of Cylinders |
3 |
| Displacement, cu in (L) |
201 (3.3) |
| Engine Bore, in (mm) |
4.40 (112.0) |
| Engine Stroke, in (mm) |
4.40 (112.0) |
| Rated Engine Power, hp (kW) |
57.0 (42.5) |
| Rated Engine Speed, rpm |
2200 |
| Compression |
16.5:1 |
| Firing Order |
1-2-3 |
| Maximum Torque, Nm (ft-lbs) |
208 (153) |
| Torque Speed, rpm |
1300 |
| Fuel Tank Capacity, gal (L) |
16.0 (60.5) |
| Oil Capacity, qts (L) |
8.0 (7.6) |
| Coolant Capacity, qts (L) |
14.0 (13.2) |
| Electrical System Rating, Volts |
12 |
| Battery Rating, A/h |
128 |
| Charging System |
Generator |
| Charging Rating, Amps |
22 |
| Engine Model |
Ford |
| Engine Type |
Vertical 3-cylinder water cooled gasoline |
| Number of Cylinders |
3 |
| Displacement, cu in (L) |
201 (3.3) |
| Engine Bore, in (mm) |
4.40 (112.0) |
| Engine Stroke, in (mm) |
4.40 (112.0) |
| Rated Engine Power, hp (kW) |
56.0 (41.5) |
| Rated Engine Speed, rpm |
2200 |
| Compression |
7.75:1 |
| Firing Order |
1-2-3 |
| Maximum Torque, Nm (ft-lbs) |
218 (161) |
| Torque Speed, rpm |
1100 |
| Fuel Tank Capacity, gal (L) |
13.0 (49.3) |
| Oil Capacity, qts (L) |
8.0 (7.6) |
| Coolant Capacity, qts (L) |
14.0 (13.2) |
| Electrical System Rating, Volts |
12 |
| Battery Rating, A/h |
80 |
| Charging System |
Generator |
| Charging Rating, Amps |
22 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
52.0 (38.7) |
| PTO Speed, rpm |
540 |
| PTO / Engine Speed, rpm |
540/1800 |
| Transmission Type |
Dual Range |
| Gearbox Type |
8F/2R |
| Number of Forward Gears |
8 |
| Number of Reverse Gears |
2 |
| Clutch Type |
Dry disc |
| Oil Capacity, qts (L) |
17 (16.1) |
| Maximum Forward Speed, mph (kph) |
15.0 (24.1) |
| Maximum Reverse Speed, mph (kph) |
7.2 (11.6) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front Steer |
| Steering System |
Power Steering |
| Service Brake |
Wet disc |
| Front Tire Size (Std) |
7.5-15 |
| Rear Tire Size (Std) |
14.9-28 |
| Front Tire Size (Opt) |
7.5-16 |
| Rear Tire Size (Opt) |
16.9-24 |
| Front Tread, in (mm) |
52.0-80.0 (1320-2030) |
| Rear Tread, in (mm) |
56.0-80.0 (1420-2030) |
| Hydraulic System Type |
Open center |
| Implement Pump Flow, gpm (Lpm) |
5.4 (20.8) |
| Steering Flow, gpm (Lpm) |
4.5 (17.1) |
| Hydraulic Pressure, Bar (psi) |
173 (2500) |
| Steering Pressure, Bar (psi) |
55.0 (800) |
| Hydraulic System Capacity, gal (L) |
8.1 (30.7) |
| 3-Point Hitch Category |
2/1 |
| Standard Lift Capacity 24-in behind pin, lb (kg) |
1700 (772) |
| Wheelbase, in (mm) |
77.3 (1960) |
| Length, in (mm) |
132.1 (3350) |
| Height (Steering Wheel), in (mm) |
58.8 (1490) |
| Height (Hood), in (mm) |
52.75 (1330) |
| Overall Width, in (mm) |
70.9 (1800) |
| Ground Clearance (Front Axle), in (mm) |
22 (550) |
| Ground Clearance (Rear Axle), in (mm) |
17.3 (430) |
| Weight (Gasoline), lb (kg) |
4270 (1940) |
| Weight (Diesel), lb (kg) |
4390 (1990) |
