Ford 4630 Tractor Maintenance

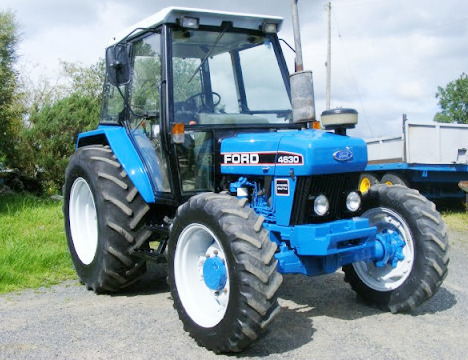

The Ford 4630 is a 30-series utility tractor. This model was manufactured from 1990 to 1993. The Ford 4630 tractor is powered by Ford vertical 3-cylinder water cooled diesel engine with a rated power of 60 Hp (44.7 kW) at 2200 rev/min.

The Ford 4630 is fitted with three transmission options: 8x2 Dual Range transmission, 8x8 synchronized shuttle transmission, and 16x8 Dual Power transmission. Max. forward speed - 16.5 mph (26.4 km/h), maximum reverse speed - 14.5 mph (23.2 km/h). The open center hydraulic system has a pump with a flow rate of 8.5 gpm (32.2 lpm).

The closed center hydraulic system has a pump with a flow rate of 14.1 gpm (53.4 lpm). The 2WD models are equipped with 7.50x15 front tires and 11.2x24 rear tires. The 7.50x18 front tires and 13.6x28 rear tires are used for 4WD tractors. The wheel base is 84.5 in (2140 mm) for models with 2-wheel drive and 84.1 in (2130 mm) for models with 4-wheel drive.

Compatible attachments for the Ford 4630: Ford 7209 loader with a max lift height of 110" (2790 mm), Ford 7210 loader with a max lift height of 124" (3140 mm), Ford 7310 loader with lift capacity to full height of 2685 lbs (1217 kg), Ford 7410 loader with lift capacity to full height of 2500 lbs (1134 kg).

Refill Capacities
Engine oil capacity, qts (L) 7.0 (6.6)
Engine coolant capacity, qts (L) 12.1 (11.4)
Transmission system capacity (Dual Range), gal (L) 3.2 (11.9)
Transmission system capacity (Shuttle), gal (L) 2.5 (9.5)
Transmission system capacity (Dual Power), gal (L) 3.0 (11.4)
Hydraulic system capacity, gal (L) 8.5 (32.2)
Front axle oil capacity, qts (L) 5.8 (5.5)
Steering system capacity, qts (L) 2.3 (2.2)

Recommended Oil and Fluid
Engine oil type SAE 15W-40, 10W-30, SAE 10W
Engine coolant type Antifreeze/Coolant
Transmission fluid type 134D, SAE 10W-40
Hydraulic fluid type 134D, SAE 10W-40
Front axle oil type 134D, SAE 10W-40
Steering oil type 134D, SAE 10W-40

Service Intervals
Check engine oil level Every 10 hours
Check transmission fluid level Every 10 hours
Check engine air filters Every 10 hours
Check coolant level in radiator Every 10 hours
Check battery and clean terminals Every 50 hours
Check hydraulic fluid level Every 50 hours
Inspect and adjust alternator belt Every 100 hours
Lubricate axle hub bearings Every 100 hours
Change engine oil Every 300 hours
Replace engine oil filter Every 300 hours
Clean engine air filters Every 300 hours
Clean engine fuel filter Every 300 hours
Adjust parking and service brakes Every 300 hours
Replace engine air filters Every 600 hours
Replace power steering filter Every 600 hours
Change steering oil Every 600 hours
Check and adjust engine idling Every 600 hours
Check and adjust valve clearance Every 600 hours
Replace engine fuel filter Every 1200 hours
Change hydraulic fluid Every 1200 hours
Change transmission fluid Every 1200 hours
Change front axle oil Every 1200 hours
Replace hydraulic oil filter Every 1200 hours
Replace engine coolant filter Every 1200 hours
Flush cooling system and add new coolant Every 1200 hours

Replacement Parts
Engine oil filter part number 86546614, E8NN6714AA
Engine fuel filter part number 87801434, D8NN9176AA (84535312, EDPN9N074AA)
Engine air filter part number (Primary) 81866927, E9NN9B618AA
Engine air filter part number (Secondary) D1NN9R500A, D6NN9R500B
Hydraulic oil filter part number 84518613, D8NNB486EA
Steering oil filter part number EDPN3K758A
Engine coolant filter part number E8NN8A424BB
