International Harvester 1026 Specs
The

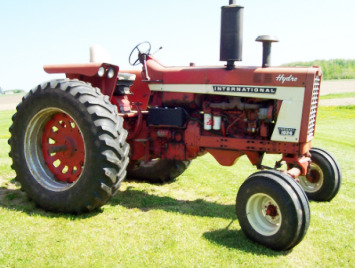

International Harvester 1026 standard-tread tractor was manufactured between
1970 and 1971. The International 1026 tractor is equipped with a 407 cu.in (6.7
L) International Harvester DT407 6-cylinder turbocharged liquid-cooled diesel
engine.
The engine has a cylinder bore of 4.32" (110 mm), piston stroke of 4.63"
(117 mm), and rated power of 124 hp (92 kW). The IH 1026 is fitted with
a high-low range hydrostatic transmission with infinite
forward and reverse gears. The max forward speed - 17 mph (27.4
kph), max reverse speed - 7 mph (11.3 kph).
The open center
hydraulic system has a gear pump with a rated capacity of 12 gal/min
(45.4 l/min). The hydraulic system pressure is 138 bar (2000 psi). The
two-wheel drive models are equipped with 7.5x15 front tyres and 18.4x34
rear tyres. The 11Lx15 front tyres and 18.4x38 rear tyres fit four-wheel
drive tractors. The wheelbase is 105 in (2655 mm).
| Engine Model |
International Harvester DT-407 |
| Engine Type |
4-stroke, six-cylinder turbocharged diesel |
| Number of Cylinders |
6 |
| Displacement, cu in (L) |
406.9 (6.70) |
| Engine Bore, in (mm) |
4.32 (110.0) |
| Engine Stroke, in (mm) |
4.63 (117.0) |
| Aspiration |
Turbocharged |
| Rated Engine Power, hp (kW) |
124.0 (92.0) |
| Rated Engine Speed, rpm |
2400 |
| Compression |
16:1 |
| Fuel System |
Direct injection |
| Air Cleaner |
Dual dry elements |
| Fuel Tank Capacity, gal (L) |
42.0 (159.0) |
| Oil Capacity, qts (L) |
13.2 (12.5) |
| Coolant Capacity, qts (L) |
24.0 (22.7) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
112.5 (83.9) |
| PTO Speeds, rpm |
540/1000 |
| PTO / Engine Speed, rpm |
540/2100 |
| PTO / Engine Speed, rpm |
1000/2100 |
| Transmission Type |
Hydrostatic |
| Number of Forward Gears |
Infinite, 2-range (Hi-Lo) |
| Number of Reverse Gears |
Infinite, 2-range (Hi-Lo) |
| Maximum Forward Speed (Low Range), mph (kph) |
7.5 (12.1) |
| Maximum Forward Speed (High Range), mph (kph) |
17.0 (27.4) |
| Maximum Reverse Speed (Low Range), mph (kph) |
3.0 (4.8) |
| Maximum Reverse Speed (High Range), mph (kph) |
7.0 (11.3) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic power |
| Brakes Type |
Differential hydraulic dry disc |
| Front Tire Size (2WD) |
7.5-15 |
| Rear Tire Size (2WD) |
18.4-34 |
| Front Tire Size (4WD) |
11L-15 |
| Rear Tire Size (4WD) |
18.4-38 |
| Front Tread, in (mm) |
54-84 (1365-2125) |
| Rear Tread, in (mm) |
60-94 (1520-2380) |
| Hydraulic System Type |
Open Center |
| Implement Pump Type |
Gear |
| Implement Pump Flow, gpm (Lpm) |
12.0 (45.4) |
| Hydraulic Pressure, Bar (psi) |
138 (2000) |
| Steering Pump Flow, gpm (Lpm) |
9.0 (34.0) |
| Number of Standard Remote Valves |
1/4 |
| 3-Point Hitch Category |
2 |
| Wheelbase, in (mm) |
105 (2655) |
| Length, in (mm) |
165 (4190) |
| Ground Clearance, in (mm) |
16 (400) |
| Turning Radius (without Brakes), in (mm) |
167 (4225) |
| Turning Radius (with Brakes), in (mm) |
144 (3645) |
| Weight (Operating), lb (kg) |
11100 (5035) |
| Weight (Ballasted), lb (kg) |
14975 (6790) |
