International Harvester 1056 Specs
The

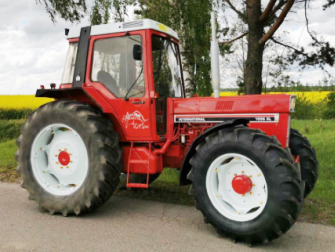

International Harvester 1056 row-crop tractor was manufactured between 1982 and
1985. The IH 1056 tractor is powered by 358 cu.in (5.9 L) International
Harvester D358 3-cylinder direct injection liquid-cooled diesel engine with a
rated power of 105 hp (78.3 kW).
The International Harvester 1056 is fitted with a 2 types of
transmission. Type 1: Partially synchronized transmission with 8 forward
and 4 reverse gears. Type 2: IH-Synchron transmission with 16 forward
and 8 reverse gears. The maximum travel speed (forward/reverse): 18.3
mph (29.4 kph) and 9 mph (14.5 kph).
The open center hydraulic system has a gear pump with a rated capacity
of 11.1 gpm (42 lpm). The hydraulic system pressure is 162 bar (2350
psi). The two-wheel drive tractors are equipped with 7.50-18 front tyres
and 18.4R34 rear tyres. The 13.6-28 front tyres and 18.4R38 rear tyres
fit four-wheel drive tractors. The wheelbase is 101.9" (2580 mm) for 2WD
models and 103.4" (2620 mm) for 4WD models.
| Engine Model |
International Harvester D358 |
| Engine Type |
4 Stroke, 6-cylinder diesel |
| Number of Cylinders |
Six |
| Displacement, cu in (L) |
358 (5.90) |
| Engine Bore, in (mm) |
3.88 (98.0) |
| Engine Stroke, in (mm) |
5.06 (129.0) |
| Aspiration |
Natural |
| Rated Engine Power, hp (kW) |
105.0 (78.3) |
| Rated Engine Speed, rpm |
2300 |
| Maximum Torque, Nm (ft-lbs) |
362 (267) |
| Torque Speed, rpm |
1400 |
| Firing Order |
1-5-3-6-2-4 |
| Fuel System |
Direct injection |
| Fuel Tank Capacity, gal (L) |
37.0 (140.0) |
| Oil Capacity, qts (L) |
13.2 (12.5) |
| Coolant Capacity, qts (L) |
25.5 (27.0) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
92.0 (68.6) |
| PTO Speed, rpm |
540/1000 |
| Transmission Type |
Partially synchronized |
| Gearbox Type |
8F/4R |
| Number of Forward Gears |
8 |
| Number of Reverse Gears |
4 |
| Clutch Type |
Dry disc |
| Maximum Forward Speed, mph (kph) |
14.2 (22.8) |
| Maximum Reverse Speed, mph (kph) |
5.8 (9.3) |
| Transmission Type |
IH-Synchron |
| Gearbox Type |
16F/8R |
| Number of Forward Gears |
16 |
| Number of Reverse Gears |
8 |
| Clutch Type |
Dry disc |
| Maximum Forward Speed, mph (kph) |
18.3 (29.4) |
| Maximum Reverse Speed, mph (kph) |
9.0 (14.5) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front steer |
| Steering System |
Hydrostatic power |
| Brakes Type |
Hydraulic wet disc |
| Front Tire Size (2WD) |
7.50-18 |
| Rear Tire Size (2WD) |
18.4-R34 |
| Front Tire Size (4WD) |
13.6-28 |
| Rear Tire Size (4WD) |
18.4-R38 |
| Front Track Width (2WD), in (mm) |
59-71 (1490-1800) |
| Front Track Width (4WD), in (mm) |
64-75 (1620-1900) |
| Rear Track Width, in (mm) |
67 (1700) |
| Hydraulic System Type |
Open Center |
| Hydraulic Pump Type |
Gear |
| Implement Pump Flow, gpm (Lpm) |
11.1 (42.0) |
| Hydraulic Pressure, Bar (psi) |
162 (2350) |
| 3-Point Hitch Category |
2 |
| Standard Lift Capacity at lift pin, lb (kg) |
9170 (4160) |
| Optional Lift Capacity at lift pin, lb (kg) |
11025 (5000) |
| Wheelbase (2WD), in (mm) |
101.9 (2580) |
| Wheelbase (4WD), in (mm) |
103.4 (2620) |
| Length (2WD), in (mm) |
165 (4190) |
| Length (4WD), in (mm) |
167.7 (4250) |
| Height (Cab), in (mm) |
109.4 (2770) |
| Height (ROPS), in (mm) |
103.1 (2610) |
| Ground Clearance, in (mm) |
20.1 (510) |
| Weight (ROPS), lb (kg) |
9015 (4090) |
| Weight (Cab), lb (kg) |
10625 (4820) |
