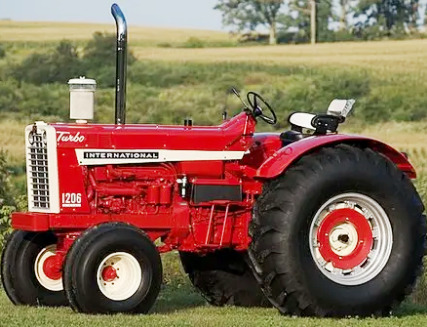

International Harvester 1206
The
International Harvester 1206 is a two-wheel drive or four-wheel drive utility
tractor. This model was manufactured from 1967 to 1968. The IH 1206 tractor is
powered by International Harvester DT-361 six-cylinder direct injection
turbocharged diesel engine with a rated power of 122 Hp (90.4 kW) at 2400 rpm.
The International Harvester 1206 is fitted with 2 transmission options:
8x4 unsynchronized gear transmission and Torque Amplifier partial power
shift transmission with 16 forward and 8 reverse gears. The maximum
forward speed - 19.5 mph (31.4 kph), max. reverse speed - 9.5 mph (15.3
kph).
The open center hydraulic system used a gear pump with fluid flow rate
of 12 gallons per minute (45.4 liters per minute). The IH 1206 was
equipped with a power assist steering, differential hydraulic disc
brakes, 7.50x16 front tires, and 18.4x38 rear tires. The wheelbase is
104.8 inches (2650 mm).
| Engine Model |
International Harvester DT-361 |
| Engine Type |
4-stroke, six-cylinder turbocharged diesel |
| Number of Cylinders |
6 |
| Displacement, cu in (L) |
361 (5.90) |
| Engine Bore, in (mm) |
4.13 (105.0) |
| Engine Stroke, in (mm) |
4.25 (108.0) |
| Aspiration |
Turbocharged |
| Rated Engine Power, hp (kW) |
122.0 (90.4) |
| Rated Engine Speed, rpm |
2400 |
| Idle Speed, rpm |
900-2400 |
| Compression |
17:1 |
| Firing Order |
1-5-3-6-2-4 |
| Fuel System |
Direct injection |
| Air Cleaner |
Dual dry |
| Fuel Tank Capacity, gal (L) |
35.0 (132.5) |
| Oil Capacity, qts (L) |
15.0 (14.2) |
| Coolant Capacity, qts (L) |
24.0 (22.7) |
| Electrical System Rating, Volts |
12 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
110.0 (82.0) |
| PTO Clutch Type |
Dry disc |
| PTO Speeds, rpm |
1000 |
| PTO / Engine Speed, rpm |
1000/2100 |
| Transmission Type |
Unsynchronized gear |
| Gearbox Type |
8F/4R |
| Number of Forward Gears |
8 |
| Number of Reverse Gears |
4 |
| Clutch Type |
Dry disc |
| Maximum Forward Speed, mph (kph) |
19.5 (31.4) |
| Maximum Reverse Speed, mph (kph) |
9.5 (15.3) |
| Transmission Type |
Torque Amplifier |
| Gearbox Type |
16F/8R, partial powershift |
| Number of Forward Gears |
16 |
| Number of Reverse Gears |
8 |
| Clutch Type |
Dry disc |
| Maximum Forward Speed, mph (kph) |
19.5 (31.4) |
| Maximum Reverse Speed, mph (kph) |
9.5 (15.3) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Power assist |
| Brakes Type |
Differential hydraulic disc |
| Front Tire Size |
7.50-16 |
| Rear Tire Size |
18.4-38 |
| Front Tread, in (mm) |
50-74 (1265-1870) |
| Rear Tread, in (mm) |
56-94 (1415-2380) |
| Hydraulic System Type |
Open Center |
| Implement Pump Type |
Gear |
| Implement Pump Flow, gpm (Lpm) |
12.0 (45.4) |
| Steering Pump Flow, gpm (Lpm) |
9.0 (34.1) |
| Number of Standard Remote Valves |
0/2 |
| 3-Point Hitch Category |
3 |
| Wheelbase, in (mm) |
104.8 (2650) |
| Ground Clearance, in (mm) |
23.5 (595) |
| Turning Radius, in (mm) |
160 (4050) |
| Weight (Operating), lb (kg) |
10115 (4590) |
| Weight (Ballasted), lb (kg) |
13580 (6160) |
