International Harvester 1246
The

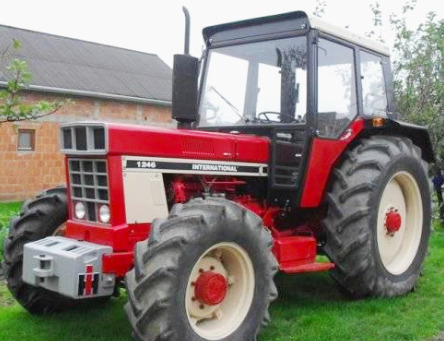

International Harvester 1246 is a 2WD or 4WD farm tractor. This model was
manufactured from 1972 to 1980. The IH 1246 tractor is powered by International
Harvester DT-358 four stroke 6-cylinder direct injection turbocharged diesel
engine with a maximum power of 122 hp (91 kW) and 444 Nm (329 lb-ft) of max
torque at 1450 rev/min.
The International Harvester 1246 is fitted with two transmission
options: 12x5 fully synchronized transmission or fully synchronized
transmission with 16 forward and 7 reverse gears.
The maximum travel speed (forward and reverse): 21.3 mph (34 km/h) /
18.6 mph (29.7 km/h). The open center hydraulic system includes a gear
pump with a rated fluid flow of 10.6 gal/min (40.1 l/min). The hydraulic
system pressure is 2535 psi (175 bar). The 2-wheel drive models are
equipped with 11.0x16 front tires and 18.4x38 rear tires. The 11.2x28
front tires and 18.4x38 rear tires are used for tractors with 4-wheel
drive. The wheelbase is 100.8 in (2560 mm).
| Engine Model |
International Harvester DT-358 |
| Engine Type |
4-stroke, 6-cylinder turbocharged diesel |
| Number of Cylinders |
Six |
| Displacement, cu in (L) |
358 (5.90) |
| Engine Bore, in (mm) |
3.88 (98.0) |
| Engine Stroke, in (mm) |
5.06 (129.0) |
| Aspiration |
Turbocharged |
| Rated Engine Power, hp (kW) |
122.0 (91.0) |
| Rated Engine Speed, rpm |
2200 |
| Idle Speed, rpm |
850-2400 |
| Maximum Torque, Nm (ft-lbs) |
444 (329) |
| Torque Speed, rpm |
1450 |
| Firing Order |
1-5-3-6-2-4 |
| Fuel System |
Direct injection |
| Fuel Tank Capacity, gal (L) |
29.1 (110.0) |
| Oil Capacity, qts (L) |
13.2 (12.5) |
| Coolant Capacity, qts (L) |
33.8 (32.0) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Alternator Rating, Amps |
42/61 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
100.0 (74.1) |
| PTO Clutch Type |
Dry disc |
| PTO Speeds, rpm |
540/1000 |
| Transmission Type |
Fully synchronized |
| Gearbox Type |
12F/5R |
| Number of Forward Gears |
12 |
| Number of Reverse Gears |
5 |
| Clutch Type |
Dry disc |
| Maximum Forward Speed, mph (kph) |
21.3 (34.0) |
| Maximum Reverse Speed, mph (kph) |
18.6 (29.7) |
| Transmission Type |
Fully synchronized |
| Gearbox Type |
16F/7R |
| Number of Forward Gears |
16 |
| Number of Reverse Gears |
7 |
| Clutch Type |
Dry disc |
| Maximum Forward Speed, mph (kph) |
21.3 (34.0) |
| Maximum Reverse Speed, mph (kph) |
18.6 (29.7) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic power |
| Brakes Type |
Hydraulic disc |
| Front Tire Size (2WD) |
11.0x16 |
| Rear Tire Size (2WD) |
18.4x38 |
| Front Tire Size (4WD) |
11.2x28 |
| Rear Tire Size (4WD) |
18.4x38 |
| Hydraulic System Type |
Open Center |
| Implement Pump Type |
Gear |
| Implement Pump Flow, gpm (Lpm) |
10.6 (40.1) |
| Hydraulic Pressure, Bar (psi) |
175 (2535) |
| 3-Point Hitch Category |
2/3 |
| Standard Lift Capacity at lift pin, lb (kg) |
8160 (3700) |
| Wheelbase, in (mm) |
100.8 (2560) |
| Length, in (mm) |
165.4 (4190) |
| Height (Cab), in (mm) |
107.1 (2720) |
| Turning Radius (2WD), in (mm) |
196 (4950) |
| Turning Radius (4WD), in (mm) |
212 (5350) |
| Weight (2WD), lb (kg) |
9480 (4300) |
| Weight (4WD), lb (kg) |
10695 (4850) |
