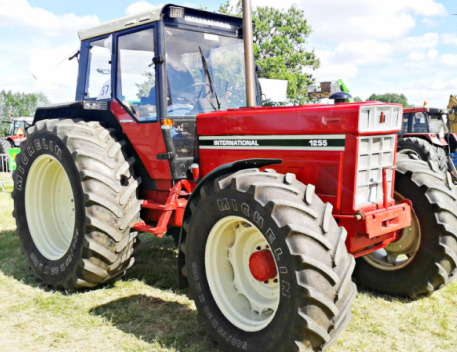

International Harvester 1255
The
International Harvester 1255 is a 4-wheel drive farm tractor. This model was
manufactured between 1979 and 1985. The IH 1255 tractor is powered by 358 cubic
inches (5.9L) International Harvester DT358 4-stroke 6-cylinder direct injection
turbocharged diesel engine with a rated power of 125 hp (93.2 kW) and 455.6 Nm
(336 lb-ft) of maximum torque at 1600 rev/min.
The IH 1255 is fitted with two types of transmission. 1st type: fully
synchronized transmission with 12 forward and 5 reverse gears. 2nd type:
fully synchronized transmission with 20 forward and 9 reverse gears.
Max forward speed - 14.5 mph (23.3 km/h), maximum reverse speed - 13.6
mph (21.9 km/h). The open center hydraulic system used a gear pump with
a flow of 13.2 gal/min (50 l/min). The main relief pressure is 172 bar
(2500 psi). The International Harvester 1255 was equipped with a
hydrostatic power steering, wet dics brakes, 14.9R28 front tires, and
20.8R38 rear tires. The wheel base is 110.2 inches (2790 mm).
Engine Model |
International Harvester DT-358 |
Engine Type |
4 Stroke, 6-cylinder turbocharged diesel |
Number of Cylinders |
Six |
Displacement, cu in (L) |
358 (5.90) |
Engine Bore, in (mm) |
3.88 (98.0) |
Engine Stroke, in (mm) |
5.06 (129.0) |
Aspiration |
Turbocharged |
Rated Engine Power, hp (kW) |
125.0 (93.2) |
Rated Engine Speed, rpm |
2200 |
Maximum Torque, Nm (ft-lbs) |
455.6 (336) |
Torque Speed, rpm |
1600 |
Fuel System |
Direct injection |
Fuel Tank Capacity, gal (L) |
52.8 (200.0) |
Oil Capacity, qts (L) |
13.2 (12.5) |
Coolant Capacity, qts (L) |
33.8 (32.0) |
Electrical System Rating, Volts |
12 |
Charging System |
Alternator |
Alternator Rating, Amps |
55 |
PTO Operational Type |
Independent |
PTO Horsepower, hp (kW) |
96.0 (71.5) |
PTO Clutch Type |
Dry disc |
PTO Speeds, rpm |
540/1000 |
Transmission Type |
Fully synchronized |
Gearbox Type |
12F/5R |
Number of Forward Gears |
12 |
Number of Reverse Gears |
5 |
Clutch Type |
Dry disc |
Oil Capacity, qts (L) |
42.3 (40.0) |
Maximum Forward Speed, mph (kph) |
14.5 (23.3) |
Maximum Reverse Speed, mph (kph) |
13.6 (21.9) |
Transmission Type |
Fully synchronized |
Gearbox Type |
20F/9R |
Number of Forward Gears |
20 |
Number of Reverse Gears |
9 |
Clutch Type |
Dry disc |
Oil Capacity, qts (L) |
42.3 (40.0) |
Maximum Forward Speed, mph (kph) |
14.5 (23.3) |
Maximum Reverse Speed, mph (kph) |
13.6 (21.9) |
Drive Wheels |
4WD 4x4 |
Steering Configuration |
Front Steer |
Steering System |
Hydrostatic power |
Brakes Type |
Wet dics |
Front Tire Size |
14.9R28 |
Rear Tire Size |
20.8R38 |
Front Tread, in (mm) |
68.5-76.4 (1730-1940) |
Rear Tread, in (mm) |
71.6-83.6 (1810-2120) |
Hydraulic System Type |
Open center |
Implement Pump Flow, gpm (Lpm) |
13.2 (50.0) |
Hydraulic Pressure, Bar (psi) |
172 (2500) |
Number of Standard Remote Valves |
2 |
3-Point Hitch Category |
2/3 |
Draft Sensing or Lift Control |
Position and draft control |
Standard Lift Capacity at lift pin, lb (kg) |
10143 (4600) |
Wheelbase, in (mm) |
110.2 (2790) |
Length, in (mm) |
186.6 (4730) |
Height, in (mm) |
115.7 (2930) |
Ground Clearance, in (mm) |
18.5 (460) |
Turning Radius, in (mm) |
239 (6050) |
Weight, lb (kg) |
12215 (5540) |
