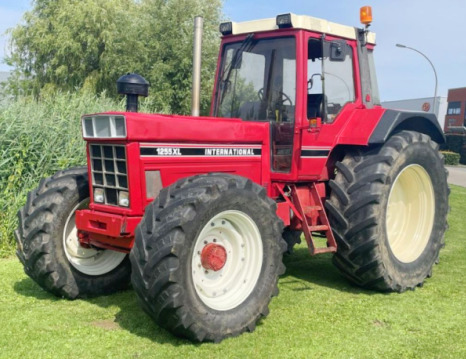

International Harvester 1255 XL

The International Harvester 1255XL farm tractor was manufactured between 1985 and 1994. The International Harvester 1255 XL tractor is equipped with a 358 cu.in (5.9L) DT-358 six-cylinder direct injection turbocharged diesel engine. The max. torque is 250 ft-lbs at 1500 rpm.

The engine has a cylinder bore of 3.88" (98 mm), piston stroke of 5.06" (129 mm), rated power of 125 hp (93.2 kW), and max torque of 455.6 Nm (336 lb-ft) at 1600 rpm. The ZF T-3445 transmission consists of a dry clutch and fully synchronized gearbox with 20 forward and 9 reverse gears.

Max travel speed (forward/reverse): 14.5 mph (23.3 km/h) and 13.6 mph (21.9 km/h). The open center hydraulic system includes a gear pump with a rated capacity of 13.2 gpm (50 lpm). The main relief pressure is 175 bar (2540 psi). The International Harvester 1255XL was equipped with a hydrostatic power steering, wet dics brakes, 14.9R28 front tires, and 20.8R38 rear tires. The wheel base is 110.7 inches (2800 mm). The wheelbase is 110.7 (2800).

Engine
Engine Model International Harvester DT-358
Engine Type 4 Stroke, 6-cylinder turbocharged diesel
Number of Cylinders Six
Displacement, cu in (L) 358 (5.90)
Engine Bore, in (mm) 3.88 (98.0)
Engine Stroke, in (mm) 5.06 (129.0)
Aspiration Turbocharged
Rated Engine Power, hp (kW) 125.0 (93.2)
Rated Engine Speed, rpm 2200
Maximum Torque, Nm (ft-lbs) 455.6 (336)
Torque Speed, rpm 1600
Fuel System Direct injection
Fuel Tank Capacity, gal (L) 52.8 (200.0)
Oil Capacity, qts (L) 13.2 (12.5)
Coolant Capacity, qts (L) 33.8 (32.0)
Electrical System Rating, Volts 12
Charging System Alternator
Alternator Rating, Amps 55

Power Take-Off
PTO Operational Type Independent
PTO Horsepower, hp (kW) 96.0 (71.5)
PTO Clutch Type Dry disc
PTO Speeds, rpm 540/1000

Transmission
Transmission Type Fully synchronized
Gearbox Type 20F/9R
Number of Forward Gears 20
Number of Reverse Gears 9
Clutch Type Dry disc
Oil Capacity, qts (L) 42.3 (40.0)
Maximum Forward Speed, mph (kph) 14.5 (23.3)
Maximum Reverse Speed, mph (kph) 13.6 (21.9)


Wheels and Tires
Drive Wheels 4WD 4x4
Steering Configuration Front Steer
Steering System Hydrostatic power
Brakes Type Wet dics
Front Tire Size 14.9R28
Rear Tire Size 20.8R38
Front Tread, in (mm) 68.5-76.4 (1730-1940)
Rear Tread, in (mm) 71.6-83.6 (1810-2120)

Hydraulic System
Hydraulic System Type Open center
Implement Pump Flow, gpm (Lpm) 13.2 (50.0)
Hydraulic Pressure, Bar (psi) 175 (2540)
Number of Standard Remote Valves 2
3-Point Hitch Category 2/3
Draft Sensing or Lift Control Position and draft control
Standard Lift Capacity at lift pin, lb (kg) 10145 (4600)

Dimensions and Weight
Wheelbase, in (mm) 110.7 (2800)
Length, in (mm) 187.4 (4740)
Height, in (mm) 116.2 (2940)
Ground Clearance, in (mm) 18.5 (460)
Turning Radius, in (mm) 221 (5600)
Weight, lb (kg) 12215 (5540)
