International Harvester 1455
The

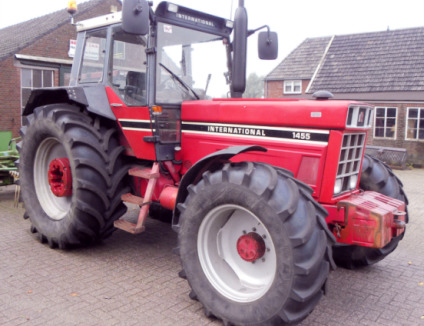

International Harvester 1455 is a 4x4 (4WD) farm tractor. This model was
manufactured from 1979 to 1981. The International Harvester 1455 tractor is
powered by IH DT402 six-cylinder direct injection turbocharged diesel engine. A
402 cubic inches (6.6 L) engine has a cylinder bore of 3.94" (100 mm), piston
stroke of 5.50" (140 mm), rated power of 145 hp (108.2 kW), and max torque of
528.8 Nm (390.6 lb-ft) at 1600 rpm.
The International Harvester 1455 is fitted with two transmission
options: ZF T-3450 fully synchronized transmission with 12 forward and 5
reverse gears, or ZF T-3450 HD fully synchronized transmission with 16
forward and 7 reverse gears. The maximum forward speed - 15.2 mph (24.5
kph), max. reverse speed - 13.6 mph (21.9 kph).
The open center hydraulic system includes a gear pump with rated
capacity of 13.2 gpm (50 lpm). The hydraulic pressure is 172 bar (2500
psi). The International Harvester 1455 was equipped with a hydrostatic
power steering, wet dics brakes, 14.9x28 front tires, and 20.8x38 rear
tires. The wheel base is 110.7 inches (2800 mm). The wheelbase is 110.2
(2790).
| Engine Model |
International Harvester DT-402 |
| Engine Type |
4 Stroke, 6-cylinder turbocharged diesel |
| Number of Cylinders |
6 |
| Displacement, cu in (L) |
402.0 (6.60) |
| Engine Bore, in (mm) |
3.94 (100.0) |
| Engine Stroke, in (mm) |
5.50 (140.0) |
| Aspiration |
Turbocharged |
| Rated Engine Power, hp (kW) |
145.0 (108.2) |
| Rated Engine Speed, rpm |
2200 |
| Maximum Torque, Nm (ft-lbs) |
528.8 (390.6) |
| Torque Speed, rpm |
1600 |
| Fuel System |
Direct injection |
| Fuel System Control |
Mechanical |
| Fuel Tank Capacity, gal (L) |
52.8 (199.0) |
| Oil Capacity, qts (L) |
13.2 (12.5) |
| Coolant Capacity, qts (L) |
34.9 (33.2) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Alternator Rating, Amps |
55 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
130.0 (96.9) |
| PTO Clutch Type |
Dry disc |
| PTO Speeds, rpm |
540/1000 |
| Transmission Type |
Fully synchronized |
| Gearbox Type |
12F/5R |
| Number of Forward Gears |
12 |
| Number of Reverse Gears |
5 |
| Clutch Type |
Dry disc |
| Oil Capacity, qts (L) |
42.3 (40.0) |
| Maximum Forward Speed, mph (kph) |
14.5 (23.3) |
| Maximum Reverse Speed, mph (kph) |
13.6 (21.9) |
| Transmission Type |
Fully synchronized |
| Gearbox Type |
16F/7R |
| Number of Forward Gears |
16 |
| Number of Reverse Gears |
7 |
| Clutch Type |
Dry disc |
| Maximum Forward Speed, mph (kph) |
15.2 (24.5) |
| Maximum Reverse Speed, mph (kph) |
13.6 (21.9) |
| Drive Wheels |
4WD 4x4 |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic power |
| Brakes Type |
Wet dics |
| Front Tire Size |
14.9x28 |
| Rear Tire Size |
20.8x38 |
| Front Tread, in (mm) |
68.5-76.4 (1730-1940) |
| Rear Tread, in (mm) |
71.6-83.6 (1810-2120) |
| Hydraulic System Type |
Open center |
| Implement Pump Flow, gpm (Lpm) |
13.2 (50.0) |
| Hydraulic Pressure, Bar (psi) |
172 (2500) |
| Number of Standard Remote Valves |
2 |
| 3-Point Hitch Category |
2/3 |
| Draft Sensing or Lift Control |
Position and draft control |
| Standard Lift Capacity at lift pin, lb (kg) |
10140 (4600) |
| Wheelbase, in (mm) |
110.2 (2790) |
| Length, in (mm) |
187.4 (4750) |
| Height, in (mm) |
114.6 (2910) |
| Ground Clearance, in (mm) |
20.5 (520) |
| Turning Radius, in (mm) |
239 (6050) |
| Weight, lb (kg) |
12790 (5800) |
