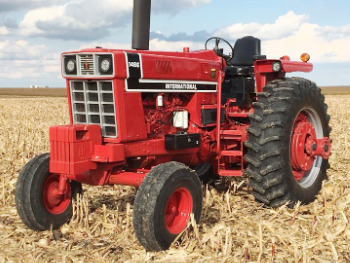

International Harvester 1466 Specs
The
International Harvester 1466 is a row-crop tractor from 66-series. This model
was manufactured between 1971 and 1976. The International Harvester 1466 tractor
is powered by 436 cu.in (7.1 L) IH DT-436 six-cylinder direct injection
turbocharged diesel engine with a rated power of 147 hp (109 kW).
The International 1466 is fitted with a two transmission options:
sliding gear transmission with 8 forward and 4 reverse gears, or
two-speed powershift transmission with 16 forward and 8 reverse gears.
The maximum travel speed (forward/reverse): 20.3 mph (32.6 km/h) and 10
mph (16.1 km/h).
The open center hydraulic system has a gear pump with a rated capacity
of 12 gpm (45.4 lpm). The hydraulic system pressure is 138 bar (2000
psi). The 2WD models are equipped with 11Lx15 front tires and 18.4x34
rear tires. The 11Lx15 front tires and 18.4x38 rear tires are used for
4WD tractors. The wheelbase is 105 in (2655 mm).
Engine Model |
International Harvester DT-436 |
Engine Type |
4-stroke, six-cylinder turbocharged diesel |
Number of Cylinders |
6 |
Displacement, cu in (L) |
436 (7.10) |
Engine Bore, in (mm) |
4.30 (109.0) |
Engine Stroke, in (mm) |
5.00 (127.0) |
Aspiration |
Turbocharged |
Rated Engine Power, hp (kW) |
147.0 (109.0) |
Rated Engine Speed, rpm |
2600 |
Compression |
16:1 |
Firing Order |
1-5-3-6-2-4 |
Fuel System |
Direct injection |
Air Cleaner |
Dual dry elements |
Fuel Tank Capacity, gal (L) |
42.0 (159.0) |
Oil Capacity, qts (L) |
18.0 (17.0) |
Coolant Capacity, qts (L) |
27.0 (25.5) |
Electrical System Rating, Volts |
12 |
Charging System |
Alternator |
PTO Operational Type |
Independent |
PTO Horsepower, hp (kW) |
133.0 (99.2) |
PTO Clutch |
Dry disc |
PTO Speeds, rpm |
1000 |
PTO / Engine Speed, rpm |
1000/2268 |
Transmission Type |
Sliding gear |
Gearbox Type |
8F/4R |
Number of Forward Gears |
8 |
Number of Reverse Gears |
4 |
Clutch |
Dry disc |
Oil Capacity, qts (L) |
88.0 (83.3) |
Maximum Forward Speed, mph (kph) |
20.3 (32.6) |
Maximum Reverse Speed, mph (kph) |
10.0 (16.1) |
Transmission Type |
Torque Amplifier |
Gearbox Type |
16F/8R, partial powershift |
Number of Forward Gears |
16 |
Number of Reverse Gears |
8 |
Clutch |
Dry disc |
Oil Capacity, qts (L) |
88.0 (83.3) |
Maximum Forward Speed, mph (kph) |
20.3 (32.6) |
Maximum Reverse Speed, mph (kph) |
10.0 (16.1) |
Drive Wheels |
2WD/4WD |
Steering Configuration |
Front Steer |
Steering System |
Hydrostatic power |
Brakes Type |
Independent hydraulic dry disc |
Front Tire Size |
11Lx15 |
Rear Tire Size |
18.4x34 |
Front Tread, in (mm) |
56-86 (1415-2180) |
Rear Tread, in (mm) |
60-104 (1520-2630) |
Hydraulic System Type |
Open Center |
Implement Pump Type |
Gear |
Implement Pump Flow, gpm (Lpm) |
12.0 (45.4) |
Hydraulic Pressure, Bar (psi) |
138 (2000) |
Steering Pump Flow, gpm (Lpm) |
9.0 (34.0) |
Steering Pressure, Bar (psi) |
107 (1550) |
Hydraulic Fluid Capacity, qts (L) |
22.0 (83.3) |
3-Point Hitch Category |
3/2 |
Standard Lift Capacity 24-in (610mm) behind pin, lb (kg) |
5600 (2540) |
Wheelbase, in (mm) |
105 (2655) |
Length, in (mm) |
168 (4260) |
Height (Exhaust), in (mm) |
111 (2810) |
Overall Width, in (mm) |
98 (2480) |
Ground Clearance, in (mm) |
16 (400) |
Turning Radius (without Brakes), in (mm) |
173 (4370) |
Turning Radius (with Brakes), in (mm) |
140 (3540) |
Weight (Operating), lb (kg) |
13480 (6115) |
Weight (Ballasted), lb (kg) |
16660 (7555) |
