International Harvester 1468 Specs

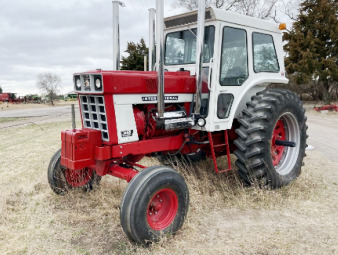

The
International Harvester 1468 row-crop tractor was manufactured between 1971 and
1974. The IH 1468 tractor is powered by 549 cu.in (9 L) International DV-550
8-cylinder direct injection liquid-cooled diesel engine with a rated power of
161 hp (119.3 kW).
he tractor is fitted with a 2 types of transmission. Type 1: Sliding
gear transmission with 8 forward and 4 reverse gears. Type 2: Two-speed
powershift transmission with 16 forward and 8 reverse gears. The maximum
travel speed (forward/reverse): 20.3 mph (32.6 kph) and 10 mph (16.1
kph).
The open center hydraulic system has a gear pump with a rated capacity
of 12 gpm (45.4 lpm). The hydraulic system pressure is 159 bar (2300
psi). The International Harvester 1468 is equipped with a hydrostatic
power steering system, independent hydraulic dry disc brakes, 11Lx16
front tyres, and 18.4x34 rear tyres. The wheelbase is 105" (2655 mm).
| Engine Model |
International DV-550 |
| Engine Type |
4-stroke, 8-cylinder liquid-cooled diesel |
| Number of Cylinders |
8 |
| Displacement, cu in (L) |
548.7 (9.00) |
| Engine Bore, in (mm) |
4.50 (114.0) |
| Engine Stroke, in (mm) |
4.32 (110.0) |
| Aspiration |
Natural |
| Rated Engine Power, hp (kW) |
161.0 (119.3) |
| Rated Engine Speed, rpm |
2600 |
| Fuel System |
Direct injection |
| Air Cleaner |
Dual dry elements |
| Fuel Tank Capacity, gal (L) |
42.0 (159.0) |
| Oil Capacity, qts (L) |
14.3 (13.5) |
| Coolant Capacity, qts (L) |
27.0 (25.5) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
145.0 (108.0) |
| PTO Clutch |
Dry disc |
| PTO Speeds, rpm |
1000 |
| PTO / Engine Speed, rpm |
1000/2269 |
| Transmission Type |
Sliding gear |
| Gearbox Type |
8F/4R |
| Number of Forward Gears |
8 |
| Number of Reverse Gears |
4 |
| Clutch |
Dry disc |
| Maximum Forward Speed, mph (kph) |
20.3 (32.6) |
| Maximum Reverse Speed, mph (kph) |
10.0 (16.1) |
| Transmission Type |
Torque Amplifier |
| Gearbox Type |
16F/8R, partial powershift |
| Number of Forward Gears |
16 |
| Number of Reverse Gears |
8 |
| Clutch |
Dry disc |
| Maximum Forward Speed, mph (kph) |
20.3 (32.6) |
| Maximum Reverse Speed, mph (kph) |
10.0 (16.1) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic power |
| Brakes Type |
Independent hydraulic dry disc |
| Front Tire Size |
11Lx16 |
| Rear Tire Size |
18.4x34 |
| Front Tread, in (mm) |
62-86 (1570-2180) |
| Rear Tread, in (mm) |
60-104 (1520-2630) |
| Hydraulic System Type |
Open Center |
| Implement Pump Type |
Gear |
| Implement Pump Flow, gpm (Lpm) |
12.0 (45.4) |
| Hydraulic Fluid Capacity, qts (L) |
13.0 (49.3) |
| 3-Point Hitch Category |
3/2 |
| Wheelbase, in (mm) |
105 (2655) |
| Length, in (mm) |
168 (4260) |
| Height (Exhaust), in (mm) |
111 (2810) |
| Overall Width, in (mm) |
98 (2480) |
| Ground Clearance, in (mm) |
16 (400) |
| Turning Radius (without Brakes), in (mm) |
173 (4370) |
| Turning Radius (with Brakes), in (mm) |
140 (3540) |
| Weight, lb (kg) |
11850 (5375) |
