International Harvester 656 Specs
The

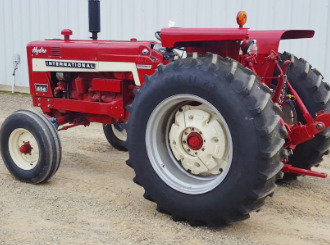

International Harvester 656 is a 2WD utility tractor. This model was
manufactured from 1965 to 1973. The tractor is powered by 282 cu.in (4.6 L) IH
D282 six-cylinder diesel engine with a rated power of 70 hp (51.9 kW), or 263
cu.in (4.3 L) IH C263 six-cylinder gasoline engine with a rated power of 70 hp
(51.9 kW).
The IH 656 is fitted with a 3 transmission options: 5x1 sliding gear
transmission, 10x2 two-speed powershift transmission, or two-range
hydrostatic transmission. The max travel speed (forward/reverse): 21
mph (33.8 km/h). The open center hydraulic system has a gear pump with a
rated capacity of 12 gpm (45.5 lpm).
The hydraulic system pressure is
172 bar (2500 psi). The International 656 tractor is equipped with a
hydrostatic power steering, independent mechanical disc brakes, 7.50x16
front tyres, and 15.5x38 rear tyres. Compatible attachments for the
tractor: International Harvester 2000 front loader with lift capacity to
max height of 2000 lbs (907 kg) and breakout force of 4000 lbs (1814
kg).
| Engine Model |
International Harvester D282 |
| Engine Type |
4-stroke, six-cylinder diesel |
| Number of Cylinders |
6 |
| Displacement, cu in (L) |
282 (4.60) |
| Engine Bore, in (mm) |
3.56 (90.0) |
| Engine Stroke, in (mm) |
4.39 (112.0) |
| Aspiration |
Naturally aspirated |
| Rated Engine Power, hp (kW) |
70.0 (51.9) |
| Rated Engine Speed, rpm |
2300 |
| Firing Order |
1-5-3-6-2-4 |
| Fuel System |
Direct injection |
| Fuel Tank Capacity, gal (L) |
33.0 (124.9) |
| Electrical System Rating, Volts |
12 |
| Engine Model |
International Harvester C263 |
| Engine Type |
4-stroke, six-cylinder gasoline |
| Number of Cylinders |
6 |
| Displacement, cu in (L) |
263 (4.30) |
| Engine Bore, in (mm) |
3.56 (90.0) |
| Engine Stroke, in (mm) |
4.39 (112.0) |
| Rated Engine Power, hp (kW) |
70.0 (51.9) |
| Rated Engine Speed, rpm |
2300 |
| Air Cleaner |
Dry elements |
| Fuel Tank Capacity, gal (L) |
33.0 (125.0) |
| Electrical System Rating, Volts |
12 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
63.6 (47.0) |
| PTO Clutch |
Dry disc |
| PTO Speeds, rpm |
540/1000 |
| Transmission Type |
Sliding gear |
| Gearbox Type |
5F/1R |
| Number of Forward Gears |
5 |
| Number of Reverse Gears |
1 |
| Clutch |
Dry disc |
| Maximum Forward Speed, mph (kph) |
15.8 (25.3) |
| Maximum Reverse Speed, mph (kph) |
2.8 (4.4) |
| Transmission Type |
Torque Amplifier |
| Gearbox Type |
10F/2R, 2-speed powershift |
| Number of Forward Gears |
10 |
| Number of Reverse Gears |
2 |
| Clutch Type |
Dry disc |
| Maximum Forward Speed, mph (kph) |
15.8 (25.3) |
| Maximum Reverse Speed, mph (kph) |
2.8 (4.4) |
| Transmission Type |
Hydrostatic |
| Number of Forward Gears |
Infinite, 2-range |
| Number of Reverse Gears |
Infinite, 2-range |
| Maximum Forward Speed, mph (kph) |
21.0 (33.8) |
| Maximum Reverse Speed, mph (kph) |
21.0 (33.8) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic power |
| Brakes Type |
Independent mechanical disc |
| Front Tire Size |
7.50-16 |
| Rear Tire Size |
15.5-38 |
| Hydraulic System Type |
Open Center |
| Implement Pump Type |
Gear |
| Implement Pump Flow, gpm (Lpm) |
12.0 (45.5) |
| Hydraulic Pressure, Bar (psi) |
172 (2500) |
| 3-Point Hitch Category |
2/1 |
| Wheelbase, in (mm) |
96.3 (2440) |
| Length, in (mm) |
152 (3860) |
| Height (Steering Wheel), in (mm) |
77 (1950) |
| Ground Clearance, in (mm) |
21 (530) |
| Weight, lb (kg) |
6640 (3010) |
