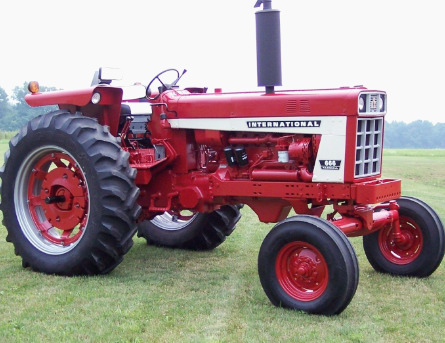

International Harvester 666
The
International Harvester 666 was manufactured from 1972 to 1976. The IH 666
tractor is powered by International Harvester D312 six-cylinder direct injection
diesel engine with a rated power of 73 Hp (54.1 kW) or International Harvester
C291 six-cylinder water-cooled gasoline engine with a rated power of 72 Hp (53.3
kW).
The IH 666 is fitted with 3 types of transmission. Type 1: 5x1 sliding
gear transmission. Type 2: 10x2 Torque Amplifier two-speed power shift
transmission. Type 3: 2-range hydrostatic transmission with infinite
forward and reverse gears.
Max. forward speed - 21 mph (33.8 km/h), maximum reverse speed - 21 mph
(33.8 km/h). The open center hydraulic system used a gear pump with a
rated capacity of 12 gpm (45.5 lpm). The main relief pressure is 172 bar
(2500 psi). The International Harvester 666 was equipped with a
hydrostatic power steering system, mechanical disc brakes, 7.50x16 front
tires, and 15.5x38 rear tires. The wheelbase is 103" (2610 mm).
| Engine Model |
International Harvester D312 |
| Engine Type |
4-stroke, six-cylinder diesel |
| Number of Cylinders |
6 |
| Displacement, cu in (L) |
312 (5.10) |
| Engine Bore, in (mm) |
3.88 (98.0) |
| Engine Stroke, in (mm) |
4.41 (112.0) |
| Aspiration |
Natural |
| Rated Engine Power, hp (kW) |
73.0 (54.1) |
| Rated Engine Speed, rpm |
2000 |
| Compression |
17:1 |
| Firing Order |
1-5-3-6-2-4 |
| Fuel System |
Direct injection |
| Fuel Tank Capacity, gal (L) |
31.0 (117.3) |
| Electrical System Rating, Volts |
12 |
| Engine Model |
International Harvester C291 |
| Engine Type |
4-stroke, six-cylinder gasoline |
| Number of Cylinders |
6 |
| Displacement, cu in (L) |
291 (4.80) |
| Engine Bore, in (mm) |
3.75 (95.0) |
| Engine Stroke, in (mm) |
4.39 (112.0) |
| Rated Engine Power, hp (kW) |
72.0 (53.3) |
| Rated Engine Speed, rpm |
2000 |
| Compression |
7.5:1 |
| Air Cleaner |
Dry elements |
| Fuel Tank Capacity, gal (L) |
31.0 (117.3) |
| Electrical System Rating, Volts |
12 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
66.3 (49.2) |
| PTO Clutch Type |
Dry disc |
| PTO Speeds, rpm |
540 |
| Transmission Type |
Sliding gear |
| Gearbox Type |
5F/1R |
| Number of Forward Gears |
5 |
| Number of Reverse Gears |
1 |
| Clutch Type |
Dry disc |
| Maximum Forward Speed, mph (kph) |
15.8 (25.3) |
| Maximum Reverse Speed, mph (kph) |
2.8 (4.4) |
| Transmission Type |
Hydrostatic |
| Number of Forward Gears |
Infinite, 2-range |
| Number of Reverse Gears |
Infinite, 2-range |
| Maximum Forward Speed, mph (kph) |
21.0 (33.8) |
| Maximum Reverse Speed, mph (kph) |
21.0 (33.8) |
| Transmission Type |
Torque Amplifier |
| Gearbox Type |
10F/2R, 2-speed powershift |
| Number of Forward Gears |
10 |
| Number of Reverse Gears |
2 |
| Clutch Type |
Dry disc |
| Maximum Forward Speed, mph (kph) |
16.5 (26.5) |
| Maximum Reverse Speed, mph (kph) |
3.0 (4.8) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic power |
| Brakes Type |
Mechanical disc |
| Front Tire Size |
7.50-16 |
| Rear Tire Size |
15.5-38 |
| Front Tread, in (mm) |
58-82 (1470-2080) |
| Rear Tread, in (mm) |
60-98 (1520-2480) |
| Hydraulic System Type |
Open Center |
| Implement Pump Type |
Gear |
| Implement Pump Flow, gpm (Lpm) |
12.0 (45.5) |
| Hydraulic Pressure, Bar (psi) |
172 (2500) |
| 3-Point Hitch Category |
2 |
| Wheelbase, in (mm) |
103 (2610) |
| Length, in (mm) |
162 (4110) |
| Height (Exhaust), in (mm) |
105 (2660) |
| Overall Width, in (mm) |
89.4 (2270) |
| Ground Clearance, in (mm) |
21 (530) |
| Weight, lb (kg) |
7055 (3200) |
