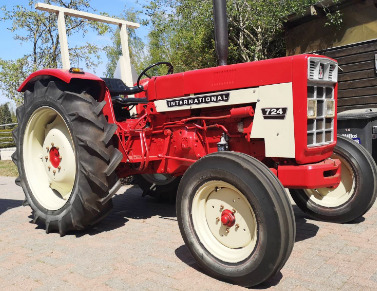

International Harvester 724

The International Harvester 724 utility tractor was manufactured from 1969 to 1974. The IH 724 tractor is powered by International Harvester D-239 4-stroke 4-cylinder direct injection naturally aspirated liquid-cooled diesel engine. A 238.7 cubic inches (3.9 L) engine has a cylinder bore of 3.87" (98 mm), piston stroke of 5.06" (129 mm), rated power of 67 hp (50 kW), and max torque of 224 Nm (165 lb-ft) at 1600 rpm.

The International Harvester 724 is fitted with two transmission options: partially synchronized transmission with 8 forward and 4 reverse gears, and Agriomatic S partial powershift transmission with 12 forward and 4 reverse gears. The maximum travel speed (forward/reverse): 15.5 mph (24.9 km/h) and 9.4 mph (15.1 km/h). The open center hydraulic system includes a gear pump with a rated capacity of 7.5 gal/min (28.4 l/min).

The hydraulic pressure is 165 bar (2400 psi). The 2WD models are equipped with 7.50x16 front tires and 13.6x38 rear tires. The 11.2x24 front tires and 13.6x38 rear tires are used for 4WD tractors. The wheelbase is 83.5 inches (2110 mm).

Engine
Engine Model International Harvester D-239
Engine Type 4-stroke, 4-cylinder liquid-cooled diesel
Number of Cylinders 4
Displacement, cu in (L) 238.7 (3.92)
Engine Bore, in (mm) 3.87 (98.0)
Engine Stroke, in (mm) 5.06 (129.0)
Aspiration Natural
Rated Engine Power, hp (kW) 67.0 (50.0)
Rated Engine Speed, rpm 2200
Idle Speed, rpm 650-2420
Maximum Torque, Nm (ft-lbs) 224 (165)
Torque Speed, rpm 1600
Compression 16:1
Firing Order 1-3-4-2
Fuel System Direct injection
Air Cleaner Dry
Fuel Tank Capacity, gal (L) 18.5 (70.0)
Oil Capacity, qts (L) 8.4 (7.9)
Electrical System Rating, Volts 12

Power Take-Off
PTO Operational Type Independent
PTO Horsepower, hp (kW) 60.0 (44.4)
PTO Clutch Type Dry disc
PTO Speeds, rpm 540/1000

Standard Transmission
Transmission Type Partially synchronized
Gearbox Type 8F/4R
Number of Forward Gears 8
Number of Reverse Gears 4
Clutch Type Dry disc
Maximum Forward Speed, mph (kph) 15.5 (24.9)
Maximum Reverse Speed, mph (kph) 9.4 (15.1)

Optional Transmission
Transmission Type Agriomatic S
Gearbox Type 12F/4R, partial powershift
Number of Forward Gears 12
Number of Reverse Gears 4
Clutch Type Dry disc
Maximum Forward Speed, mph (kph) 15.5 (24.9)
Maximum Reverse Speed, mph (kph) 9.4 (15.1)

Wheels and Tires
Drive Wheels 2WD/4WD
Steering Configuration Front Steer
Steering System Manual
Brakes Type Dry disc
Front Tire Size (2WD) 7.50-16
Rear Tire Size (2WD) 13.6-38
Front Tire Size (4WD) 11.2-24
Rear Tire Size (4WD) 13.6-38
Front Tread, in (mm) 52-67.7 (1320-1720)
Rear Tread, in (mm) 57.5-73.5 (1460-1860)

Hydraulic System
Hydraulic System Type Open Center
Implement Pump Flow, gpm (Lpm) 7.5 (28.4)
Hydraulic Pressure, Bar (psi) 165 (2400)
3-Point Hitch Category 2
Draft Sensing or Lift Control Position and draft control
Standard Lift Capacity at lift pin, lb (kg) 4520 (2050)

Dimensions and Weight
Wheelbase, in (mm) 83.5 (2110)
Length, in (mm) 131.6 (3340)
Height (Steering Wheel), in (mm) 62 (1570)
Overall Width, in (mm) 71.5 (1810)
Ground Clearance, in (mm) 17.2 (430)
Weight (2WD), lb (kg) 6260 (2840)
Weight (4WD), lb (kg) 6625 (3005)
