International Harvester 756 Specs
The

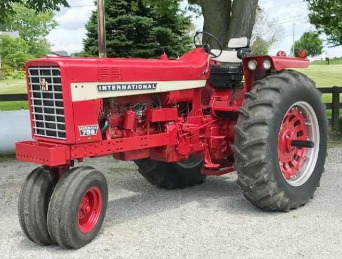

International Harvester 756 farm tractor was manufactured between 1967 and 1983.
The IH 756 tractor is equipped with a 310 cu.in (5.1 L) International Harvester
D310 six-cylinder liquid-cooled diesel engine with a rated power of 85 hp (63
kW), or 291 cu.in (4.8 L) International Harvester C291 six-cylinder gasoline
engine with a rated power of 85 hp (63 kW).
The sliding gear transmission consists of a dry clutch and gearbox with
8 forward and 4 reverse gears. The maximum forward speed - 15.6 mph
(25.1 kph), maximum reverse speed - 4.9 mph (7.8 kph).
The open center hydraulic system has a gear pump with a rated capacity
of 12 gal/min (45.5 l/min). The hydraulic system pressure is 172 bar
(2500 psi). The International 756 tractor is equipped with a hydrostatic
power steering system, differential hydraulic disc brakes, 9.5Lx15 front
tyres, and 18.4x34 rear tyres. The wheelbase is 101 inches (2560 mm).
| Engine Model |
International Harvester D310 |
| Engine Type |
4-stroke, six-cylinder diesel |
| Number of Cylinders |
6 |
| Displacement, cu in (L) |
310 (5.10) |
| Engine Bore, in (mm) |
3.88 (98.0) |
| Engine Stroke, in (mm) |
4.38 (111.0) |
| Aspiration |
Naturally aspirated |
| Rated Engine Power, hp (kW) |
85.0 (63.0) |
| Rated Engine Speed, rpm |
2400 |
| Fuel System |
Direct injection |
| Fuel Tank Capacity, gal (L) |
33.0 (124.9) |
| Electrical System Rating, Volts |
12 |
| Engine Model |
International Harvester C291 |
| Engine Type |
4-stroke, six-cylinder gasoline |
| Number of Cylinders |
6 |
| Displacement, cu in (L) |
291 (4.80) |
| Engine Bore, in (mm) |
3.75 (95.0) |
| Engine Stroke, in (mm) |
4.39 (112.0) |
| Rated Engine Power, hp (kW) |
85.0 (63.0) |
| Rated Engine Speed, rpm |
2400 |
| Air Cleaner |
Dry elements |
| Fuel Tank Capacity, gal (L) |
33.0 (125.0) |
| Electrical System Rating, Volts |
12 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
76.5 (57.0) |
| PTO Clutch |
Dry disc |
| PTO Speeds, rpm |
540/1000 |
| Transmission Type |
Sliding gear |
| Gearbox Type |
8F/4R |
| Number of Forward Gears |
8 |
| Number of Reverse Gears |
4 |
| Clutch |
Dry disc |
| Maximum Forward Speed, mph (kph) |
15.6 (25.1) |
| Maximum Reverse Speed, mph (kph) |
4.9 (7.8) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic power |
| Brakes Type |
Differential hydraulic disc |
| Front Tire Size |
9.5L-15 |
| Rear Tire Size |
18.4-34 |
| Hydraulic System Type |
Open Center |
| Implement Pump Type |
Gear |
| Implement Pump Flow, gpm (Lpm) |
12.0 (45.5) |
| Hydraulic Pressure, Bar (psi) |
172 (2500) |
| 3-Point Hitch Category |
2 |
| Wheelbase, in (mm) |
101 (2560) |
| Length, in (mm) |
160 (4050) |
| Weight, lb (kg) |
8385 (3800) |
