International Harvester 785 Specs

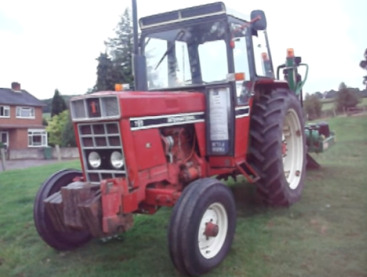

The International Harvester 785 utility tractor was manufactured between 1981 and 1985. The International 785 tractor is powered by 246 cu.in (4 L) International Harvester D246 4-cylinder direct injection liquid-cooled diesel engine with a rated power of 80 hp (57.9 kW).

The International Harvester 785 is fitted with a 2 types of transmission. Type 1: Synchromesh transmission with 8 forward and 4 reverse gears. Type 2: two-speed powershift Torque Amplifier transmission with 16 forward and 8 reverse gears. The maximum travel speed (forward/reverse): 21.1 mph (34 kph) and 6 mph (9.7 kph).

The open center hydraulic system has a gear pump with a rated capacity of 12.4 gpm (46.9 lpm). The hydraulic system pressure is 172 bar (2500 psi). The 2WD models are equipped with 10.00x16 front tires and 16.9x34 rear tires. The 12.4x24 front tires and 16.9x34 rear tires are used for 4WD tractors. The wheelbase is 88.2 in (2240 mm).

Engine
Engine Model International Harvester D-246
Engine Type Four-cylinder, direct injection liquid-cooled diesel
Number of Cylinders 4
Displacement, cu in (L) 246 (4.03)
Engine Bore, in (mm) 3.94 (100.0)
Engine Stroke, in (mm) 5.06 (128.0)
Aspiration Natural
Rated Engine Power, hp (kW) 80.0 (59.7)
Rated Engine Speed, rpm 2300
Maximum Torque, Nm (ft-lbs) 357 (263)
Torque Speed, rpm 1600
Fuel System Direct injection
Fuel Tank Capacity, gal (L) 29.6 (112.0)
Electrical System Rating, Volts 12
Charging System Alternator

Power Take-Off
PTO Operational Type Independent
PTO Horsepower, hp (kW) 68.3 (50.9)
PTO Clutch Hydraulic wet disc
PTO Speeds, rpm 540
PTO / Engine Speeds, rpm 540/1936

Standard Transmission
Transmission Type Synchromesh
Gearbox Type 8F/4R
Number of Forward Gears 8
Number of Reverse Gears 4
Clutch Dry disc
Oil Capacity, qts (L) 36.0 (34.1)
Maximum Forward Speed, mph (kph) 21.1 (34.0)
Maximum Reverse Speed, mph (kph) 6.0 (9.7)

Optional Transmission
Transmission Type Torque Amplifier
Gearbox Type 16F/8R, 2-speed powershift
Number of Forward Gears 16
Number of Reverse Gears 8
Clutch Dry disc
Maximum Forward Speed, mph (kph) 21.1 (34.0)
Maximum Reverse Speed, mph (kph) 6.0 (9.7)

Wheels and Tires
Drive Wheels 2WD/4WD
Steering Configuration Front Steer
Steering System Hydrostatic power
Brakes Type Hydraulic wet disc
Front Tire Size (2WD) 10.0-16
Rear Tire Size (2WD) 16.9-34
Front Tire Size (4WD) 12.4-24
Rear Tire Size (4WD) 16.9-34

Hydraulic System
Hydraulic System Type Open Center
Implement Pump Flow, gpm (Lpm) 12.4 (46.9)
Hydraulic Capacity, gal (L) 9.0 (34.1)
Hydraulic Pressure, Bar (psi) 172 (2500)
Number of Standard Remote Valves 1/2
3-Point Hitch Category 2
Draft Sensing or Lift Control Position and draft control
Standard Lift Capacity at lift pin, lb (kg) 4400 (1995)
Optional Lift Capacity at lift pin, lb (kg) 5250 (2380)

Dimensions and Weight
Wheelbase, in (mm) 88.2 (2240)
Length, in (mm) 147.6 (3740)
Height, in (mm) 104 (2640)
Overall Width, in (mm) 76 (1920)
Turning Radius, in (mm) 150 (3800)
Weight (2WD), lb (kg) 6700 (3040)
Weight (4WD), lb (kg) 7190 (3260)
