International Harvester 806 Specs
The

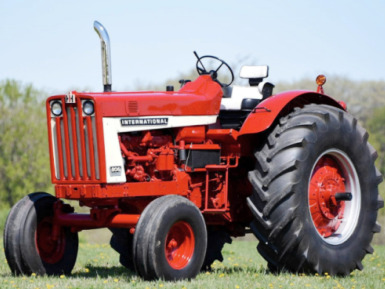

International Harvester 806 is a standard-tread tractor. This model was
manufactured from 1963 to 1967. The components of International Harvester 806
powerline system: a 361 cubic inches (5.9 L) IH D-361 6-cylinder liquid-cooled
diesel engine with a rated power of 105 hp (77.8 kW), or 301 cubic inches (4.9
L) IH C-301 6-cylinder gasoline engine with a rated power of 105 hp (77.8 kW),
and unsynchronized transmission with 8 forward and 4 reverse gears, or partial
powershift transmission with 16 forward and 8 reverse gears.
The maximum travel speed (forward/reverse): 18.8 mph (30.2 km/h) and 9.3
mph (14.9 km/h). The open center hydraulic system includes an implement
pump with rated capacity of 12 gal/min (45.4 l/min), PTO pump with rated
capacity of 3 gal/min (11.4 l/min), and steering pump with rated
capacity of 9 gal/min (34.1 l/min). The International 806 is equipped
with a power assist steering, hydraulic disc brakes, 7.50x20 front
tyres, and 18.4x34 rear tyres. The wheelbase is 91 in (2310 mm).
| Engine Model |
International Harvester D-361 |
| Engine Type |
4-stroke, six-cylinder diesel |
| Number of Cylinders |
6 |
| Displacement, cu in (L) |
361 (5.90) |
| Engine Bore, in (mm) |
4.13 (105.0) |
| Engine Stroke, in (mm) |
4.50 (114.0) |
| Aspiration |
Natural |
| Rated Engine Power, hp (kW) |
105.0 (77.8) |
| Rated Engine Speed, rpm |
2400 |
| Idle Speed, rpm |
900-2400 |
| Firing Order |
1-5-3-6-2-4 |
| Fuel System |
Direct injection |
| Air Cleaner |
Dual dry |
| Fuel Tank Capacity, gal (L) |
42.0 (159.0) |
| Oil Capacity, qts (L) |
10.6 (10.0) |
| Coolant Capacity, qts (L) |
24.0 (22.7) |
| Electrical System Rating, Volts |
12 |
| Engine Model |
International Harvester C-301 |
| Engine Type |
4-stroke, six-cylinder gasoline |
| Number of Cylinders |
6 |
| Displacement, cu in (L) |
301 (4.90) |
| Engine Bore, in (mm) |
3.82 (97.0) |
| Engine Stroke, in (mm) |
4.39 (112.0) |
| Rated Engine Power, hp (kW) |
105.0 (77.8) |
| Rated Engine Speed, rpm |
2400 |
| Compression |
7.7:1 |
| Air Cleaner |
Dual dry elements |
| Fuel Tank Capacity, gal (L) |
42.0 (159.0) |
| Oil Capacity, qts (L) |
10.6 (10.0) |
| Coolant Capacity, qts (L) |
24.0 (22.7) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
94.9 (70.8) |
| PTO Clutch |
Dry disc |
| PTO Speeds, rpm |
540/1000 |
| Transmission Type |
Unsynchronized gear |
| Gearbox Type |
8F/4R |
| Number of Forward Gears |
8 |
| Number of Reverse Gears |
4 |
| Clutch |
Dry disc |
| Oil Capacity, qts (L) |
68.0 (64.3) |
| Maximum Forward Speed, mph (kph) |
18.8 (30.2) |
| Maximum Reverse Speed, mph (kph) |
9.3 (14.9) |
| Transmission Type |
Torque Amplifier |
| Gearbox Type |
16F/8R, partial powershift |
| Number of Forward Gears |
16 |
| Number of Reverse Gears |
8 |
| Clutch Type |
Dry disc |
| Oil Capacity, qts (L) |
68.0 (64.3) |
| Maximum Forward Speed, mph (kph) |
18.8 (30.2) |
| Maximum Reverse Speed, mph (kph) |
9.3 (14.9) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Power assist |
| Brakes Type |
Hydraulic disc |
| Front Tire Size |
7.50-20 |
| Rear Tire Size |
18.4-34 |
| Front Tread, in (mm) |
56-80 (1420-2025) |
| Rear Tread, in (mm) |
60-84 (1520-2130) |
| Hydraulic System Type |
Open Center |
| Implement Pump Flow, gpm (Lpm) |
12.0 (45.4) |
| PTO Pump Flow, gpm (Lpm) |
3.0 (11.4) |
| Steering Pump Flow, gpm (Lpm) |
9.0 (34.1) |
| Hydraulic Capacity, gal (L) |
17.0 (64.3) |
| Number of Standard Remote Valves |
1/2 |
| Rear Hitch Type |
IH Fast Hitch |
| 3-Point Hitch Category |
2 |
| Wheelbase, in (mm) |
91 (2310) |
| Length, in (mm) |
153 (3880) |
| Height (Steering Wheel), in (mm) |
82 (2080) |
| Overall Width, in (mm) |
106 (2690) |
| Ground Clearance, in (mm) |
17 (430) |
| Weight (Gas), lb (kg) |
8460 (3835) |
| Weight (Diesel), lb (kg) |
9220 (4180) |
