International Harvester 826 Specs

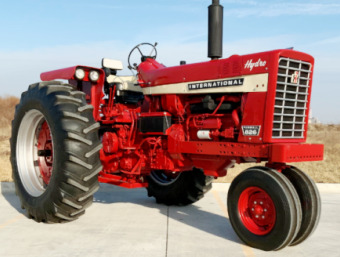

The International Harvester 826 is a 2WD or 4WD row-crop tractor. This model was manufactured from 1969 to 1971. The International 826 tractor is powered by 358 cubic inches (5.9 L) IH D-358 6-cylinder liquid-cooled diesel engine with a rated power of 102 hp (75.6 kW), or 301 cubic inches (4.9 L) IH C-301 6-cylinder gasoline engine with a rated power of 105 hp (77.8 kW).

The International Harvester 826 is fitted with a two transmission options: two-range hydrostatic transmission with infinite forward and reverse gears, or two-speed powershift transmission with 16 forward and 8 reverse gears.

The maximum travel speed (forward/reverse): 18.8 mph (30.2 km/h) and 9.5 mph (15.3 km/h). The open center hydraulic system has a gear pump with a rated capacity of 12 gpm (45.5 lpm). The hydraulic system pressure is 172 bar (2500 psi). The 2WD models are equipped with 9.5Lx15 front tires and 18.4x34 rear tires. The 11.2x24 front tires and 18.4x34 rear tires are used for 4WD tractors. The wheelbase is 105" (2655 mm).

Diesel Engine
Engine Model International Harvester D-358
Engine Type 4-stroke, six-cylinder diesel
Number of Cylinders 6
Displacement, cu in (L) 358 (5.90)
Engine Bore, in (mm) 3.88 (98.0)
Engine Stroke, in (mm) 5.06 (129.0)
Aspiration Natural
Rated Engine Power, hp (kW) 102.0 (75.6)
Rated Engine Speed, rpm 2400
Compression 16:1
Fuel System Direct injection
Air Cleaner Dual dry elements
Fuel Tank Capacity, gal (L) 37.0 (140.0)
Oil Capacity, qts (L) 13.2 (12.5)
Coolant Capacity, qts (L) 24.0 (22.7)
Electrical System Rating, Volts 12
Charging System Alternator

Gasoline Engine
Engine Model International Harvester C-301
Engine Type 4-stroke, six-cylinder gasoline
Number of Cylinders 6
Displacement, cu in (L) 301 (4.90)
Engine Bore, in (mm) 3.82 (97.0)
Engine Stroke, in (mm) 4.39 (112.0)
Rated Engine Power, hp (kW) 102.0 (75.6)
Rated Engine Speed, rpm 2400
Compression 7.7:1
Air Cleaner Dual dry elements
Fuel Tank Capacity, gal (L) 37.0 (140.0)
Oil Capacity, qts (L) 9.0 (8.5)
Coolant Capacity, qts (L) 21.0 (19.9)
Electrical System Rating, Volts 12
Charging System Alternator

Power Take-Off
PTO Operational Type Independent
PTO Horsepower (16F/8R Transmission), hp (kW) 92.0 (68.6)
PTO Horsepower (Hydro Transmission), hp (kW) 84.0 (62.6)
PTO Clutch Dry disc
PTO Speeds, rpm 540/1000
PTO / Engine Speed, rpm 540/2100
PTO / Engine Speed, rpm 1000/2100

Standard Transmission
Transmission Type Hydrostatic
Number of Forward Gears Infinite, 2-range
Number of Reverse Gears Infinite, 2-range
Maximum Forward Speed, mph (kph) 18.3 (29.4)
Maximum Reverse Speed, mph (kph) 9.5 (15.3)

Optional Transmission
Transmission Type Torque Amplifier
Gearbox Type 16F/8R, partial powershift
Number of Forward Gears 16
Number of Reverse Gears 8
Clutch Dry disc
Maximum Forward Speed, mph (kph) 18.8 (30.2)
Maximum Reverse Speed, mph (kph) 9.3 (14.9)

Wheels and Tires
Drive Wheels 2WD/4WD
Steering Configuration Front Steer
Steering System Hydrostatic power
Brakes Type Hydraulic dry disc
Front Tire Size 9.5L-15
Rear Tire Size 18.4-34

Hydraulic System
Hydraulic System Type Open Center
Implement Pump Type Gear
Implement Pump Flow, gpm (Lpm) 12.0 (45.5)
Hydraulic Pressure, Bar (psi) 172 (2500)
Rear Hitch Type IH Fast Hitch
3-Point Hitch Category 2

Dimensions and Weight
Wheelbase, in (mm) 105 (2655)
Ground Clearance, in (mm) 21 (530)
Turning Radius (without Brakes), in (mm) 123 (3110)
Turning Radius (with Brakes), in (mm) 117 (2960)
Weight (Operating), lb (kg) 9860 (4470)
Weight (Ballasted), lb (kg) 13840 (6275)
